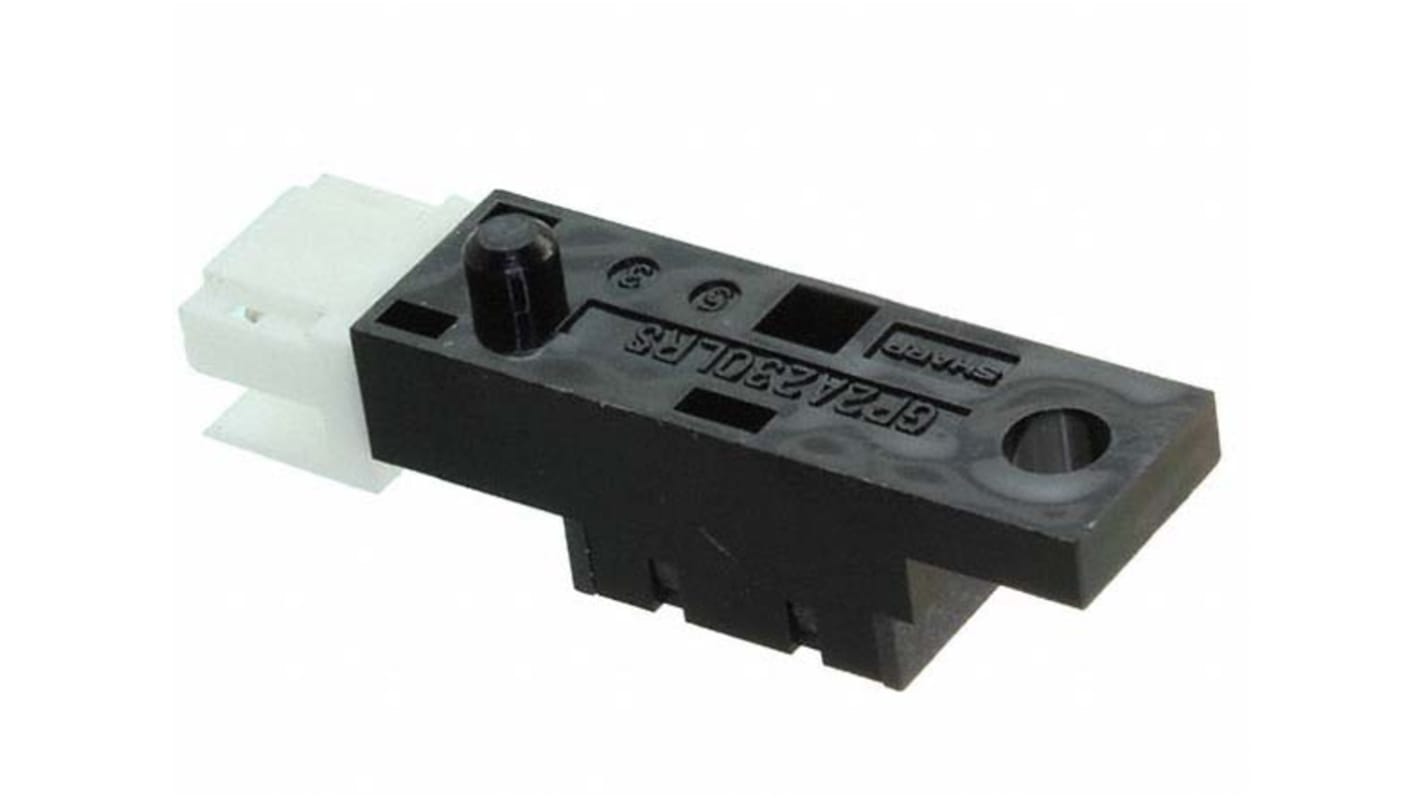

GP2A230LRS0F Sharp, Snap-In Reflective Sensor, Photointerrupter Output

  • RS Stock No. 146-0721
  • Mfr. Part No. GP2A230LRS0F
  • Brand Sharp
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

GP2A230LRS0F Series are standard, OPIC output, reflective photointerrupters with emittter and detector facing the same direction in a molding that provides non-contact sensing. This family of devices uses light modulation to reduce the affects of disturbing light, and the sensor is optimized to work in the selected focal distance. A 3-pin connector is included to allow remote-mount or off-board designs.

Reflective with OPIC Light Modulated Output
Highlights Includes additional screw fi xing holes, Position pin to prevent mis-alignment, Long focal distance
RoHS directive compliant

Specifications
Attribute Value
Peak Sensor Distance 9 (Detection) mm, 27 (Non-Detection) mm
Output Device Photointerrupter
Mounting Type Snap-In
Dimensions 32.8 x 8 x 8mm
Height 8mm
Length 32.8mm
Maximum Operating Temperature +70°C
Minimum Operating Temperature -10°C
Width 8mm
Operating Temperature Range -10 → +70°C
Output Signal Type Analogue
Available to back order for despatch when stock is available
Price Each (In a Bag of 100)
£ 2.509
(exc. VAT)
£ 3.011
(inc. VAT)
Units
Per unit
Per Bag*
100 - 100
£2.509
£250.90
200 - 400
£2.383
£238.30
500 +
£2.097
£209.70
*price indicative
