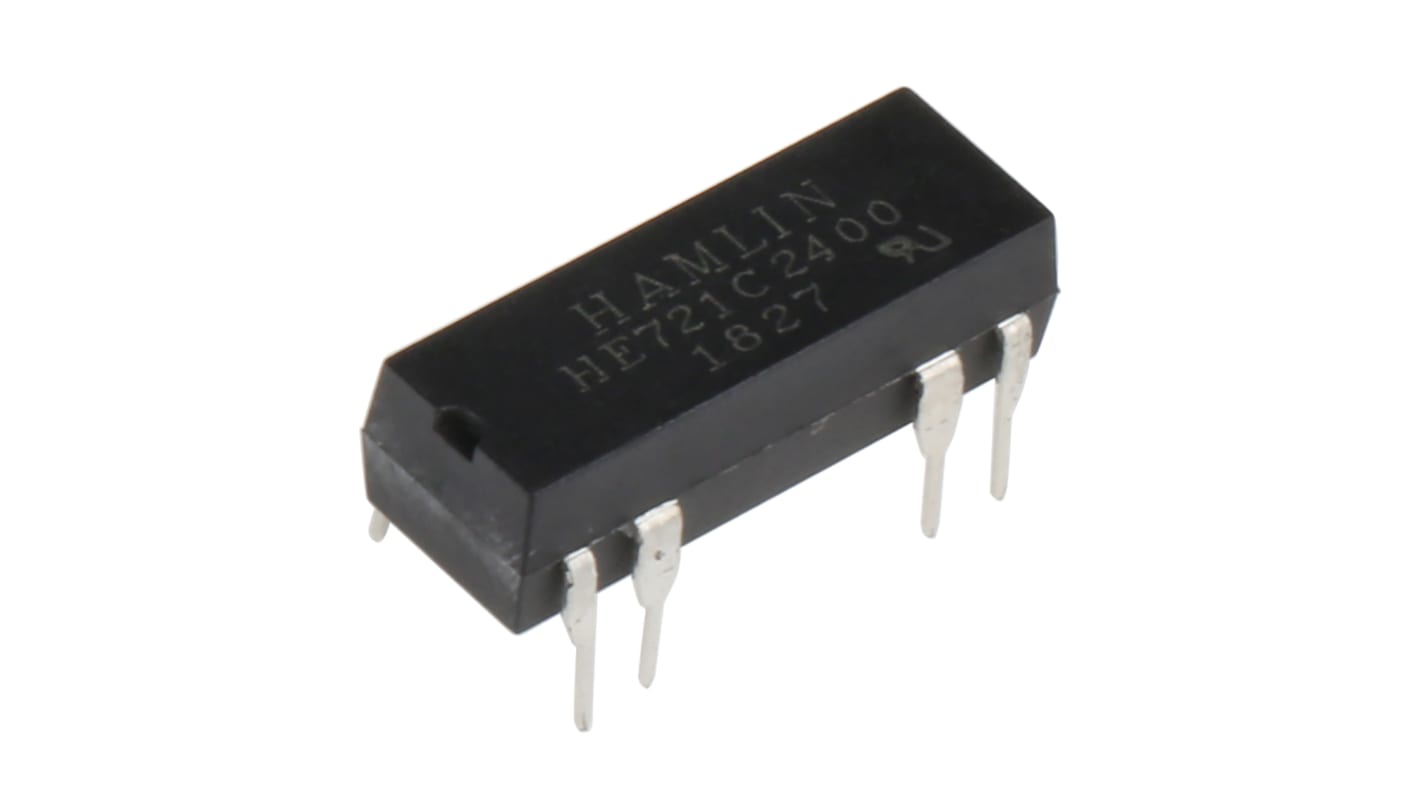

Wickmann PCB Mount Reed Relay, 24V dc Coil, SPDT, 175V Max, 250 mA Max, 2000Ω
- RS Stock No.:
- 181-3283
- Mfr. Part No.:
- HE721C2400
- Brand:
- Wickmann
Available to back order for despatch 14/08/2024
Added
Price Each (In a Tube of 25)
£2.724
(exc. VAT)
£3.269
(inc. VAT)
| Units | Per unit | Per Tube* |
| 25 + | £2.724 | £68.10 |
| *price indicative | ||
- RS Stock No.:
- 181-3283
- Mfr. Part No.:
- HE721C2400
- Brand:
- Wickmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Wickmann reed relay of series HE700 is a miniature reed relay in a DIL package with a choice of normally open, normally open high voltage, normally closed or changeover contacts capable of switching up to 300Vdc at 10W. It is available with 24V coils and diode suppression and also available with magnetic shield option.
External magnetic shield option
Diode suppression option
Miniature dual in-line package
Diode suppression option
Miniature dual in-line package
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current DC | 250 mA |
| Maximum Switching Voltage DC | 175V |
| Coil Resistance | 2000Ω |
| Length | 19.05mm |
| Height | 5.5mm |
| Depth | 7.22mm |
| Dimensions | 19.05 x 7.22 x 5.5mm |
| Isolation Coil To Contact | 500V ac |
| Number of Poles | 1 |
| Standards Met | RoHS Compliant |
| Special Features | Diode Suppression Option, External Magnetic Shield Option, Optional Coil Suppression Diode → Protect Coil Drive Circuits |
| Contact Resistance | 200 mΩ |
| Terminal Type | PCB Pin |
| Maximum Switching Power DC | 5 W |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Time Including Bounce | 3ms |
