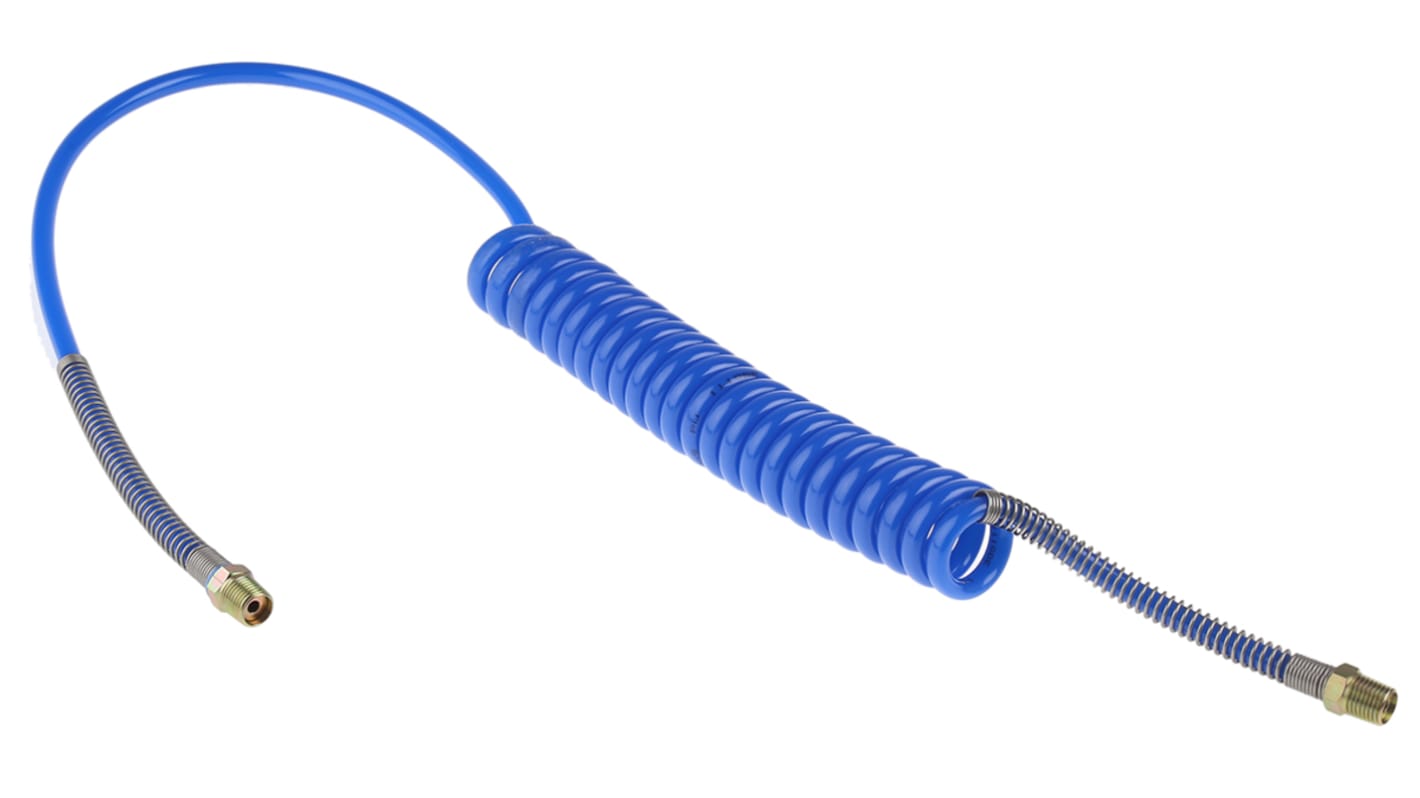

RS PRO 2 m Blue Coil Tubing with Connector, PUR, BSPT 1/4" Male
The RS PRO coil tubing with connector is a lightweight, flexible component built for use in pressured air systems. It has excellent flow characteristics and works well in confined spaces.
The 1/4-inch male BSPT (British Standard Pipe Thread) spring-backed swivel couplings allow the coil to rotate and prevent twisting. There are 23 windings to the coil that enable it to stretch to a maximum length of 2 m. The tubing handles a maximum operating pressure of 10 bar and a temperature range of -20°C to +65°C. It's made from durable, lightweight (PUR) polyurethane and is blue in colour, and its PUR material also offers excellent abrasion and kink resistance.
The tubing is often used in auto-repair workshops, workstations or robotics. As with all products in the RS PRO range, it's manufactured to a high standard and delivers solid performance.
The 1/4-inch male BSPT (British Standard Pipe Thread) spring-backed swivel couplings allow the coil to rotate and prevent twisting. There are 23 windings to the coil that enable it to stretch to a maximum length of 2 m. The tubing handles a maximum operating pressure of 10 bar and a temperature range of -20°C to +65°C. It's made from durable, lightweight (PUR) polyurethane and is blue in colour, and its PUR material also offers excellent abrasion and kink resistance.
The tubing is often used in auto-repair workshops, workstations or robotics. As with all products in the RS PRO range, it's manufactured to a high standard and delivers solid performance.
Features and Benefits
Maximum operating pressure of 10 bar
Maximum operating length of 2 m
Excellent flexibility/retention, lightweight
23 windings
Operating temperature range of -20°C to +65°C
Made from polyurethane
Blue in colour
BSPT 1/4" male connector
Maximum operating length of 2 m
Excellent flexibility/retention, lightweight
23 windings
Operating temperature range of -20°C to +65°C
Made from polyurethane
Blue in colour
BSPT 1/4" male connector
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Maximum Operating Length | 2m |
Tube Outside Diameter | 8mm |
Connector | BSPT 1/4" Male |
Colour | Blue |
Tube Inside Diameter | 5mm |
Manufacturer Series | CPC |
Material | Polyurethane |
Maximum Operating Pressure | 10bar |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +65°C |
Number of Windings | 23 |
Special Features | Excellent Resistance to Abrasion, Very Good Kink Resistant Characteristics |
