- RS Stock No.:
- 190-4743
- Mfr. Part No.:
- DS1670E+
- Brand:
- Maxim Integrated
- RS Stock No.:
- 190-4743
- Mfr. Part No.:
- DS1670E+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
Provides Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap Year Compensation Valid Up to 2100 Power-Control Circuitry Supports System Power-On from Day/Time Alarm
Microprocessor Monitor Halts Microprocessor During Power Fail Automatically Restarts Microprocessor after Power Failure Monitors Pushbutton for External Override Halts and Resets an Out-of-Control Microprocessor
NV RAM Control Automatic Battery Backup and Write Protection to External SRAM
3-Channel, 8-Bit ADC
Simple 3-Wire Interface
3.3V Operation
Microprocessor Monitor Halts Microprocessor During Power Fail Automatically Restarts Microprocessor after Power Failure Monitors Pushbutton for External Override Halts and Resets an Out-of-Control Microprocessor
NV RAM Control Automatic Battery Backup and Write Protection to External SRAM
3-Channel, 8-Bit ADC
Simple 3-Wire Interface
3.3V Operation
Specifications
Attribute | Value |
---|---|
Functions | Real Time Clock, SRAM |
Date Format | DM:M:DW:Y |
Time Format | SS:MM:HH |
Bus Type | Multiplexed |
Mounting Type | Surface Mount |

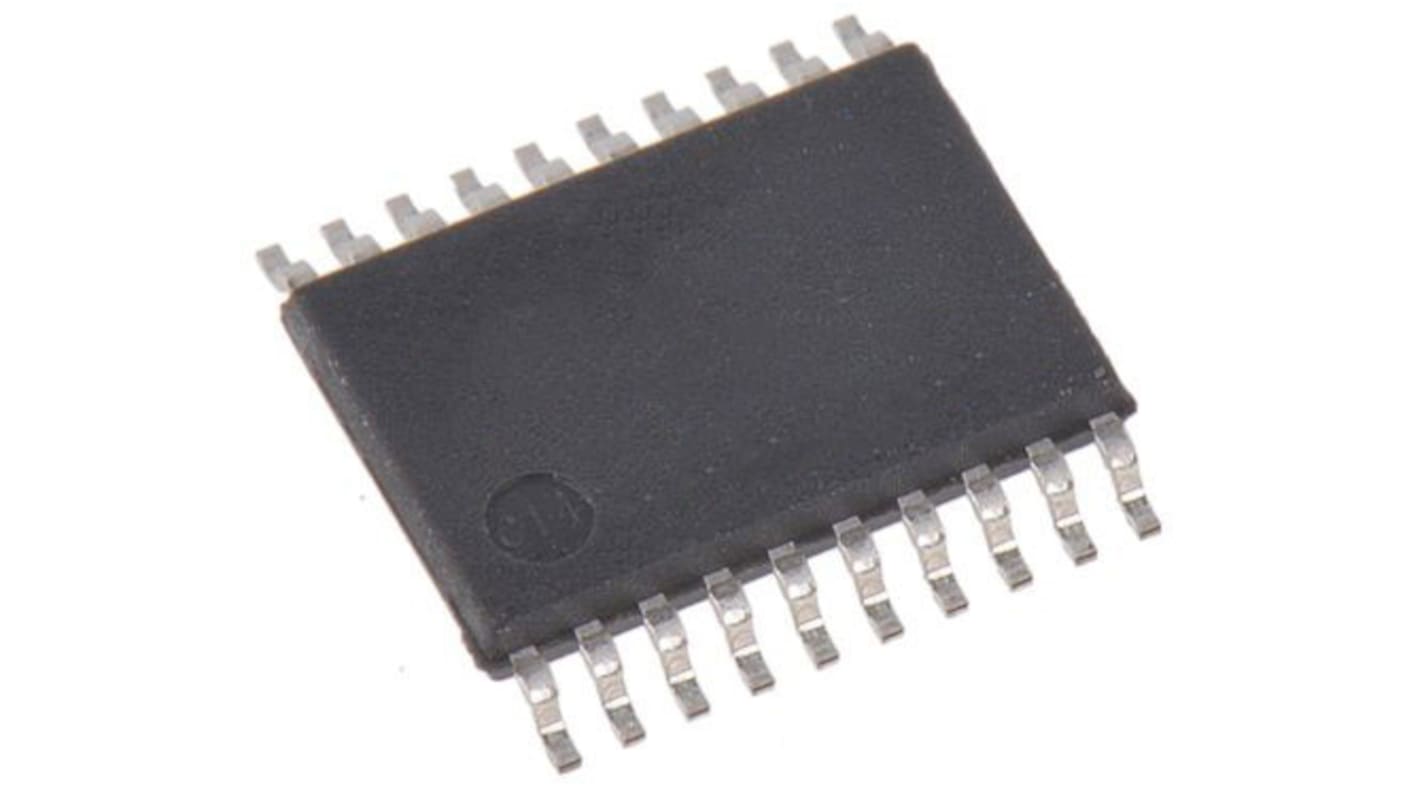

Package Type | TSSOP |
Pin Count | 20 |
Dimensions | 6.6 x 4.5 x 0.95mm |
Length | 6.6mm |
Width | 4.5mm |
Height | 0.95mm |
Maximum Operating Supply Voltage | 3.63 V |
Minimum Operating Temperature | 0 °C |
Minimum Operating Supply Voltage | 2.97 V |
Maximum Operating Temperature | +70 °C |
