- RS Stock No.:
- 806-7335
- Mfr. Part No.:
- A9R44425
- Brand:
- Schneider Electric
8 In stock - FREE next working day delivery available
Price Each
£164.89
(exc. VAT)
£197.87
(inc. VAT)
Units | Per unit |
1 - 4 | £164.89 |
5 + | £155.00 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 806-7335
- Mfr. Part No.:
- A9R44425
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details

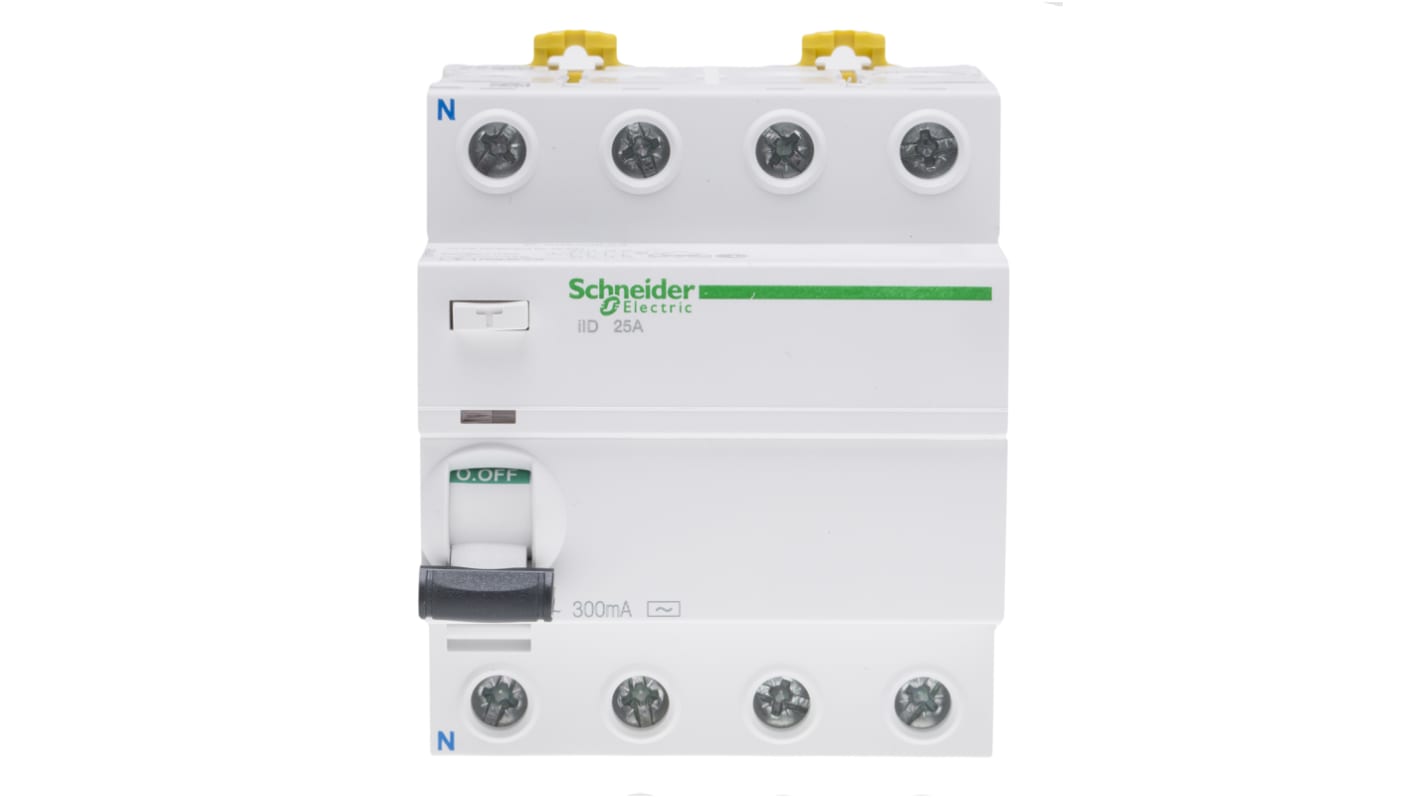

Schneider Electric RCCB, 415V AC Maximum Rated Operational Voltage, 25A Current Rating - Acti 9 Series - A9R44425
Isolate faulty equipment in a flash with this RCCB from Schneider Electric. With an earth-leakage sensitivity of 300mA, it trips the circuit as soon as an electrical issue pops up to cut the risk of equipment damage. As the device breaks instantly, it prevents electrical problems from escalating. Compatibility with tool-free DIN rail mounting means the unit clips into a control cabinet in no time. Thanks to a handy toggle switch, it's easily switched back into action after you've fixed the fault.
Features & Benefits
• Compact dimensions of 72 (W) x 91 (H) x 73.5mm (D), so it fits into a small enclosure
• Electrical lifespan of 15,000 cycles, ensuring long-lasting circuit protection
• Screw terminals prevent wires from coming undone in high-vibration settings
• Electrical lifespan of 15,000 cycles, ensuring long-lasting circuit protection
• Screw terminals prevent wires from coming undone in high-vibration settings
Applications
• Automated assembly lines
• Bottling plants
• Manufacturing industry
• Bottling plants
• Manufacturing industry
Can I check my circuit's trip status on this RCCB?
Yes, this unit's reset handle has colour-coded trip indicators to clearly show the status.
How do I know where to connect my neutral wire on this unit?
The device's front plate has neutral labels, so it's easy to pick the right terminal when wiring.
Specifications
Attribute | Value |
---|---|
Circuit Breaker Type | RCCB |
Current Rating | 25A |
Number of Poles | 4 |
Range | Acti9 |
Trip Sensitivity | 300mA |
Voltage Rating | 380 → 415V ac |
Series | iID |
Standards Met | RoHS Compliant |
Better World Verification | Green Premium |
Better World Product | Yes |
Breaking Capacity at Maximum Voltage Rating | 1500 A |
Overall Dimensions | 91 x 72 x 73.5mm |
Earth Leakage Protection Type | AC |
Overall Length | 91mm |
Overall Depth | 73.5mm |
Overall Width | 72mm |
Reset Actuator Type | Toggle Switch |
Break Time | Instantaneous |
Mounting Style | DIN Rail Mount |
Rated AC Voltage | 415V |
