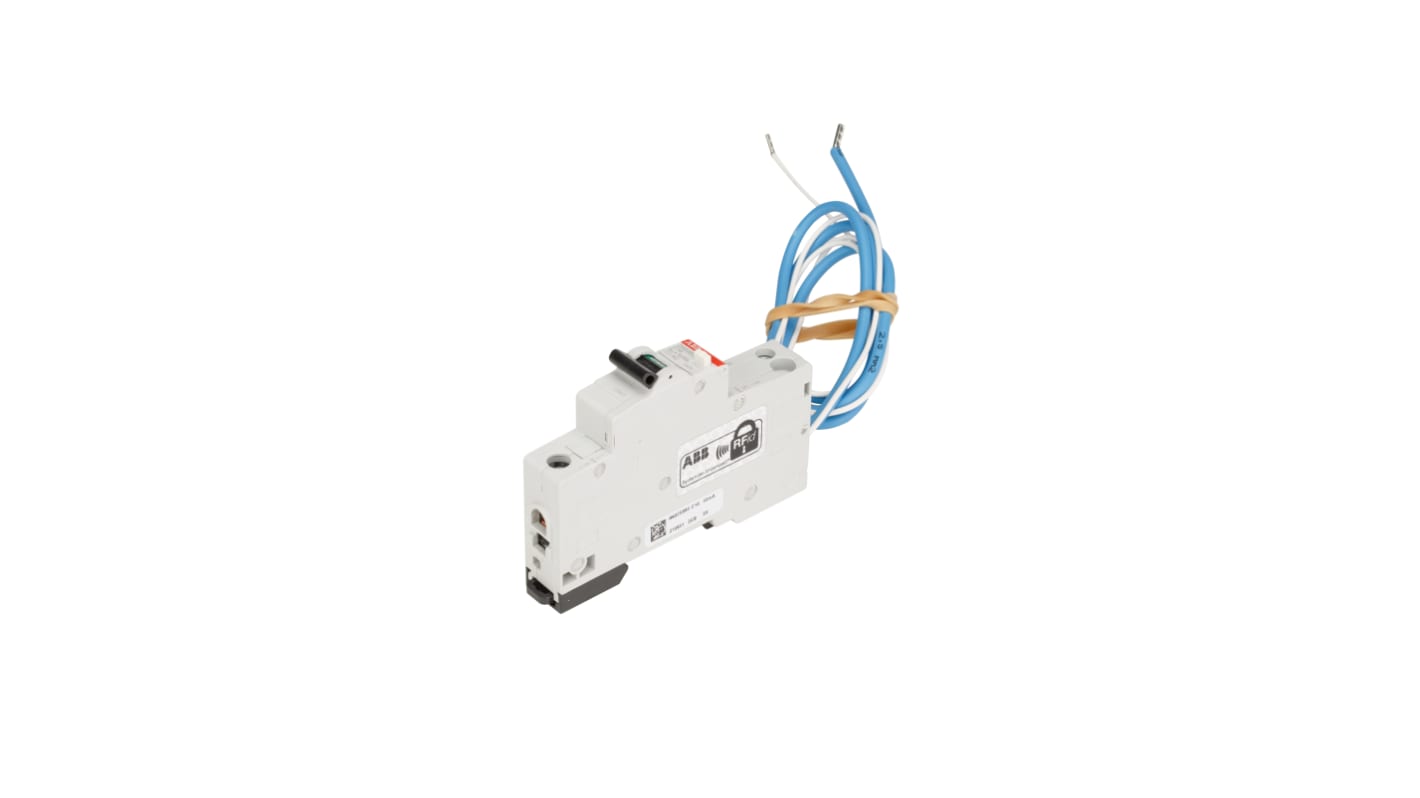

ABB 1P+N RCBO, 16A Current Rating, 240V AC Voltage Rating - DSE201 Series - 2CSR255051R1164
Use this RCBO from ABB for the complete protection of your electrical system. It combines the benefits of a residual current device and miniature circuit breaker to safeguard equipment against short circuits, earth faults and indirect contacts. The functional earth wire ensures a level of safety even in case of neutral loss. A modular design makes this a smart retrofit solution for space-critical applications. Screw terminals firmly secure contacts to support reliable electric signals.
Features & Benefits
Larger neutral hole allows the use of insulated screwdrivers to tighten terminals for maximum operational safety
Height of only 10cm allows for easier wiring inside consumer units or distribution boards
Contact position indicator shows whether the unit is on or off for additional safety
Test button allows for regular checking of the device's functionality
Height of only 10cm allows for easier wiring inside consumer units or distribution boards
Contact position indicator shows whether the unit is on or off for additional safety
Test button allows for regular checking of the device's functionality
Applications
Construction industry
Automated process panels
Domestic, commercial and industrial distribution boards
Automated process panels
Domestic, commercial and industrial distribution boards
How simple is it to install this RCBO?
The device fits quickly and easily to a DIN rail. It has two flying leads – neutral cable and functional earth – to connect directly to the main neutral and main earth bar. This simplifies and speeds up installation.
ABB RCBO's & RCCB's
RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
Specifications
Attribute | Value |
---|---|
Current Rating | 16A |
Number of Poles | 1P+N |
Trip Sensitivity | 30mA |
Tripping Characteristics | Type C |
Range | System Pro M Compact |
Circuit Breaker Type | RCBO |
Series | DSE201 |
Rated AC Voltage | 240V |
Mounting Style | DIN Rail Mount |
Earth Leakage Protection Type | AC |
Tripping Mechanism | Thermal-Magnetic |
Overall Length | 17.5mm |
Overall Depth | 68.9mm |
Overall Width | 100mm |
Reset Actuator Type | Toggle Switch |
Overall Dimensions | 17.5 x 100 x 68.9mm |
Terminal Contact Type | Screw |
