Schneider Electric RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti 9 Range
- RS Stock No.:
- 790-9257
- Mfr. Part No.:
- A9D11216
- Brand:
- Schneider Electric
15 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£222.38
(exc. VAT)
£266.86
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £222.38 |
| 5 + | £209.03 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 790-9257
- Mfr. Part No.:
- A9D11216
- Brand:
- Schneider Electric
Legislation and Compliance
Product Details

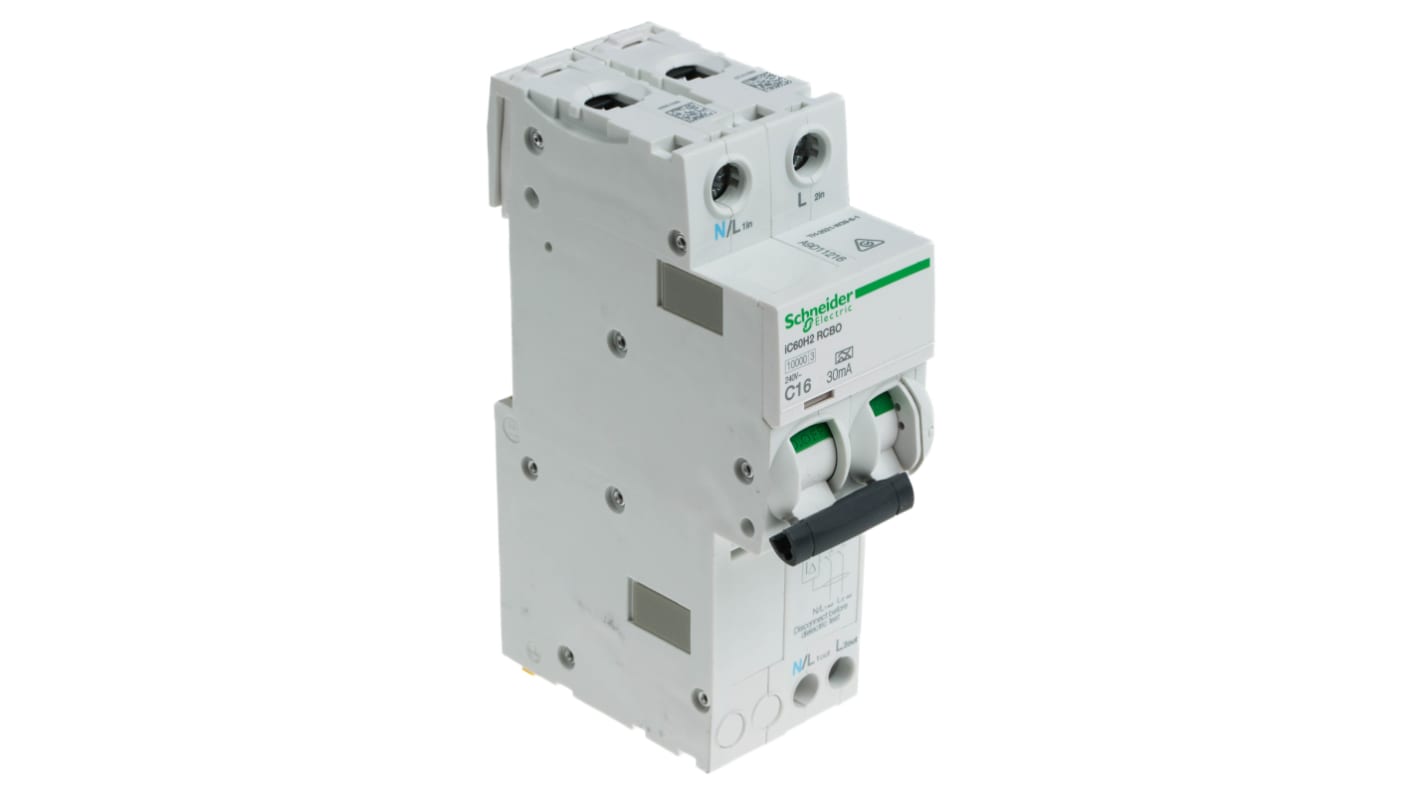

Schneider Electric RCBO, Padlockable, IP20 Rating - Acti 9 Series - A9D11216
To triple the safety of your circuit, install this RCBO from Schneider Electric. By combining protection against short circuits, overcurrent and earth leakage, it keeps your equipment safe from potentially damaging faults. Thanks to its type-C tripping characteristics, it cuts out at 5 to 10 times its 16A current rating. This makes it suitable for systems with high inductive loads that are prone to short circuits, such as transformers. Thanks to its instantaneous earth-leakage protection, this unit's always on alert to ground faulty earth currents, keeping you safe from electric shocks.
Features & Benefits
• Padlockable design helps prevent tampering
• IP20 rating indicates it's protected against solid objects up to 12mm
• DIN rail mounting for easy installation
• Integrated contact position indicator for fast fault-finding
• IP20 rating indicates it's protected against solid objects up to 12mm
• DIN rail mounting for easy installation
• Integrated contact position indicator for fast fault-finding
Applications
• Power stations
• Home appliances
• Warehouses and distribution centres
• Manufacturing industry
• Home appliances
• Warehouses and distribution centres
• Manufacturing industry
Can I reset this RCBO?
Yes, resetting this RCBO is quick and simple. Just flick the front-facing toggle switch downward, which reveals the green-coloured ON indicator strip.
How durable is this device?
Thanks to a mechanical durability rating of 20,000 cycles, you can be sure this RCBO stands up to repeated long-term use.
Specifications
Attribute | Value |
|---|---|
| Current Rating | 16A |
| Number of Poles | 1P+N |
| Trip Sensitivity | 30mA |
| Tripping Characteristics | Type C |
| Range | Acti 9 |
| Circuit Breaker Type | RCBO |
| Series | iC60H |
| Rated AC Voltage | 230/240V |
| Mounting Style | DIN Rail Mount |
| Earth Leakage Protection Type | A |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Overall Dimensions | 110 x 18 x 77.5mm |
| Application | Distribution |
| Tripping Mechanism | Thermal-Magnetic |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Overall Depth | 75.5mm |
| Overall Width | 36mm |
| Terminal Contact Type | Screw |
| Reset Actuator Type | Toggle Switch |
| Standards Met | RoHS Compliant |
| Overall Length | 110mm |
| Break Time | Instantaneous |
