Schneider Electric RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type A, Acti 9 Range
- RS Stock No.:
- 790-9204
- Mfr. Part No.:
- A9D31816
- Brand:
- Schneider Electric
9 In stock - FREE next working day delivery available
Price Each
£136.49
(exc. VAT)
£163.79
(inc. VAT)
Units | Per unit |
1 - 4 | £136.49 |
5 + | £128.30 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 790-9204
- Mfr. Part No.:
- A9D31816
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
Product Details
Schneider Electric Acti9 iC60H RCBOs Range
iC60H RCBO carries out complete protection of final circuits:
- Protection against short-circuits and cable overloads
- Protection of persons against electric shock by direct contact (10, 30 mA sensitivities)
- Protection of persons against electric shock by indirect contact (100 mA sensitivity)
- Protection of equipment against fires set by leakage currents (100 mA sensitivity)

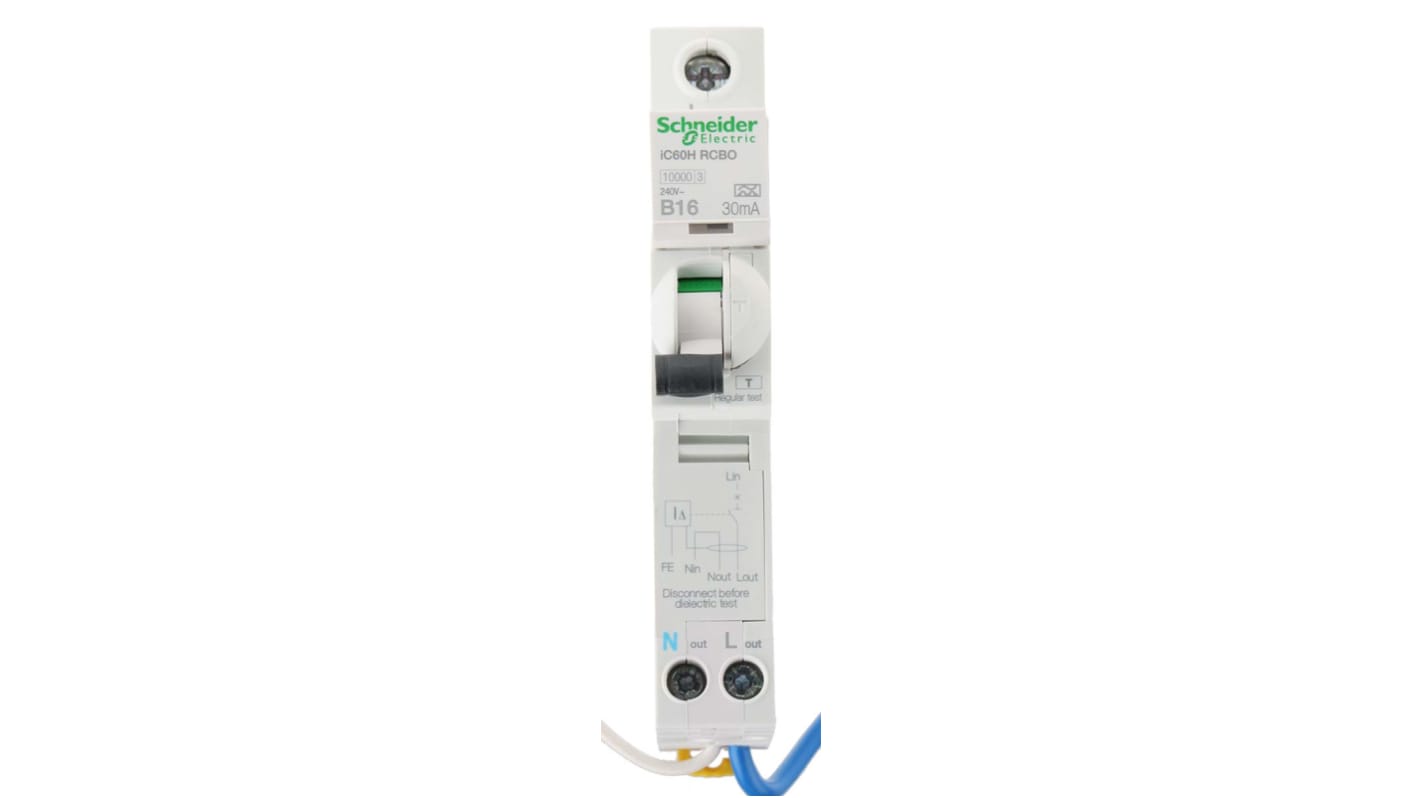

Schneider Electric Earth Leakage Circuit Breaker - A9D31816
Forming part of the Acti9 range, Schneider's RCBO (residual current breaker with overcurrent protection) has been created and designed to act as a safety device and is used in electrical installations with high earth impedance to prevent shock. The A9D31816 is a single-phase, self-contained residual current device that carries out complete protection of final circuits.
Features & Benefits
• Features earth leakage sensitivity of 30 mA
• A typical application of the device is within a distribution environment
• 1P + N - pole configuration
• Earthing system is TN
• Curve code - B
• The breaking capacity is 10000 A Icn at 240 V AC 50/60 Hz
• ON/OFF locking facilities
• Features an IP degree protection of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water
• The residual current tripping technology is voltage dependant
• DIN rail mounting type, also the option for clip-on mounting mode
• The dimensions of this circuit breaker are H110 mm x W18 mm x D77.5 mm
• Standards - IEC 61009-1 AS/NZS 61009.1 BS EN 61009-1 IEC 61009-2-2
• A typical application of the device is within a distribution environment
• 1P + N - pole configuration
• Earthing system is TN
• Curve code - B
• The breaking capacity is 10000 A Icn at 240 V AC 50/60 Hz
• ON/OFF locking facilities
• Features an IP degree protection of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water
• The residual current tripping technology is voltage dependant
• DIN rail mounting type, also the option for clip-on mounting mode
• The dimensions of this circuit breaker are H110 mm x W18 mm x D77.5 mm
• Standards - IEC 61009-1 AS/NZS 61009.1 BS EN 61009-1 IEC 61009-2-2
Specifications
Attribute | Value |
---|---|
Current Rating | 16A |
Number of Poles | 1P+N |
Trip Sensitivity | 30mA |
Tripping Characteristics | Type A |
Range | Acti 9 |
Circuit Breaker Type | RCBO |
Series | iC60H |
Mounting Style | DIN Rail Mount |
Better World Product | Yes |
Better World Verification | Green Premium |
Tripping Mechanism | Thermal-Magnetic |
Breaking Capacity at Maximum Voltage Rating | 1000 A 240 V |
Terminal Contact Type | Screw |
