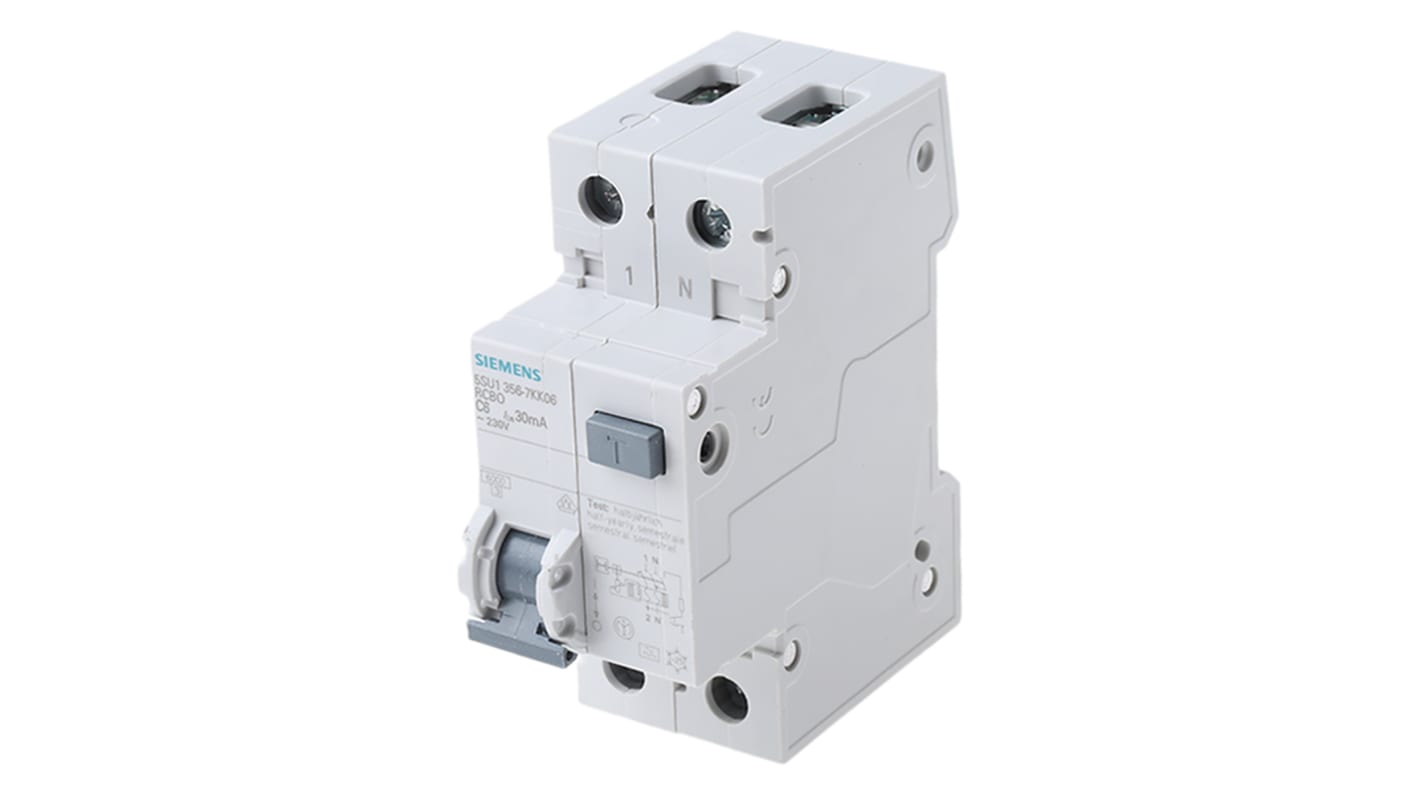

Siemens Sentron 5SU1 6 A RCBO, 1P+N Trip Sensitivity 30mA

  • RS Stock No. 772-1183
  • Mfr. Part No. 5SU1356-7KK06
  • Brand Siemens
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): RO
Product Details

Siemens 5SU1 RCBOs

The 5SU1 series from Siemens are a range of RCBOs in a compact design. Rated with a residual current of maximum 30 mA is suitable for personnel, material and fire protection, as well as for protection against direct contact.

RCBOs comprise one part for fault-current detection and one part for overcurrent detection. They are equipped with a delayed overload/time-dependent thermal release (thermal bimetal) for low overcurrents and with an instantaneous electromagnetic release for higher overload and short-circuit currents.

Conductor connection easily checked in front of the busbar
Large accessible wiring space enables easy insertion of conductor in the terminals
The surge current withstand capability of > 1 kA ensures safe and reliable operation
All additional components for miniature circuit breakers can be retrofitted on the right-hand side

Specifications
Attribute Value
Range Sentron
Series 5SU1
Current Rating 6 A
Trip Sensitivity 30mA
Number of Poles 1P+N
Mounting Style DIN Rail Mount
6 in stock for FREE next working day delivery
6 available from Europe for delivery within 1 working day(s)
Price Each
£ 94.59
(exc. VAT)
£ 113.51
(inc. VAT)
Units
Per unit
1 +
£94.59
