- RS Stock No.:
- 181-4365
- Mfr. Part No.:
- DS-ARC1 B6 A30
- Brand:
- ABB
Available to back order for despatch 01/07/2024
Added
Price Each
£216.15
(exc. VAT)
£259.38
(inc. VAT)
Units | Per unit |
1 + | £216.15 |
- RS Stock No.:
- 181-4365
- Mfr. Part No.:
- DS-ARC1 B6 A30
- Brand:
- ABB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

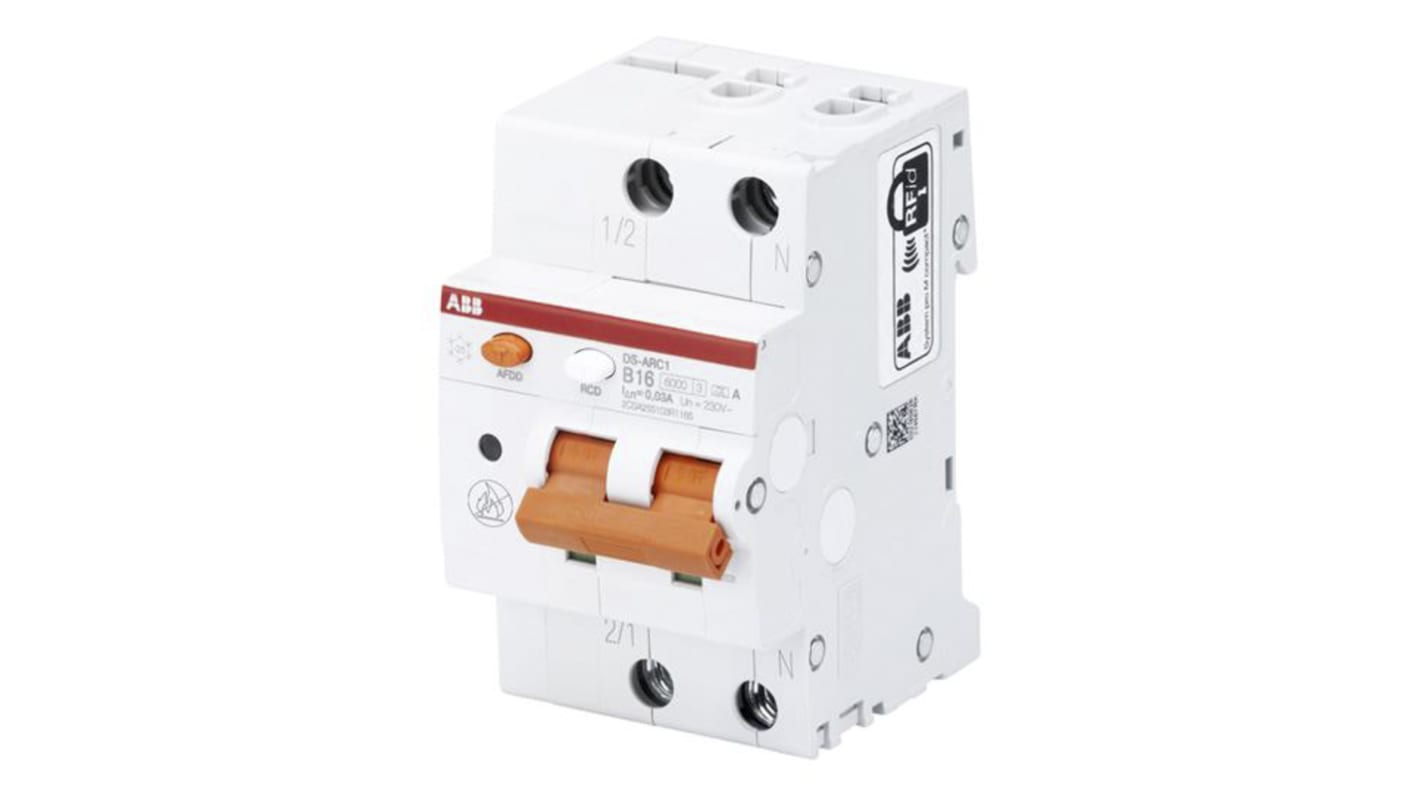

DS-ARC1 is the new 1P+N AFDD with an integrated residual current circuit breaker with overcurrent protection (RCBO) in 6 kA and 10 kA breaking capacity. In only three-module width, DS-ARC1 series offers a complete protection against arc faults overvoltages, overcurrent, earth fault currents.
Easy cross-wiring and easy installation with System pro M compact® busbars without any extra cables
Supply possible both from top and bottom side: double slots available for connection with cables and busbars
Family feeling in the System pro M compact® range
Compatible with System pro M compact® accessories
LED for an easy troubleshooting of the network
Two test button to verify the correct working conditions of AFDD and RCD
Continuous internal self-test
Supply possible both from top and bottom side: double slots available for connection with cables and busbars
Family feeling in the System pro M compact® range
Compatible with System pro M compact® accessories
LED for an easy troubleshooting of the network
Two test button to verify the correct working conditions of AFDD and RCD
Continuous internal self-test
Specifications
Attribute | Value |
---|---|
Current Rating | 6A |
Number of Poles | 1P+N |
Trip Sensitivity | 30mA |
Tripping Characteristics | Type B |
Range | System Pro M Compact |
Circuit Breaker Type | RCBO |
Series | DS-ARC1 |
Rated AC Voltage | 230 → 240V |
Mounting Style | DIN Rail Mount |
Earth Leakage Protection Type | A |
Overall Width | 69mm |
Overall Depth | 85mm |
Breaking Capacity at Maximum Voltage Rating | 6 kA |
Overall Dimensions | 52.2 x 69 x 85mm |
Reset Actuator Type | Toggle Switch |
Overall Length | 52.2mm |
