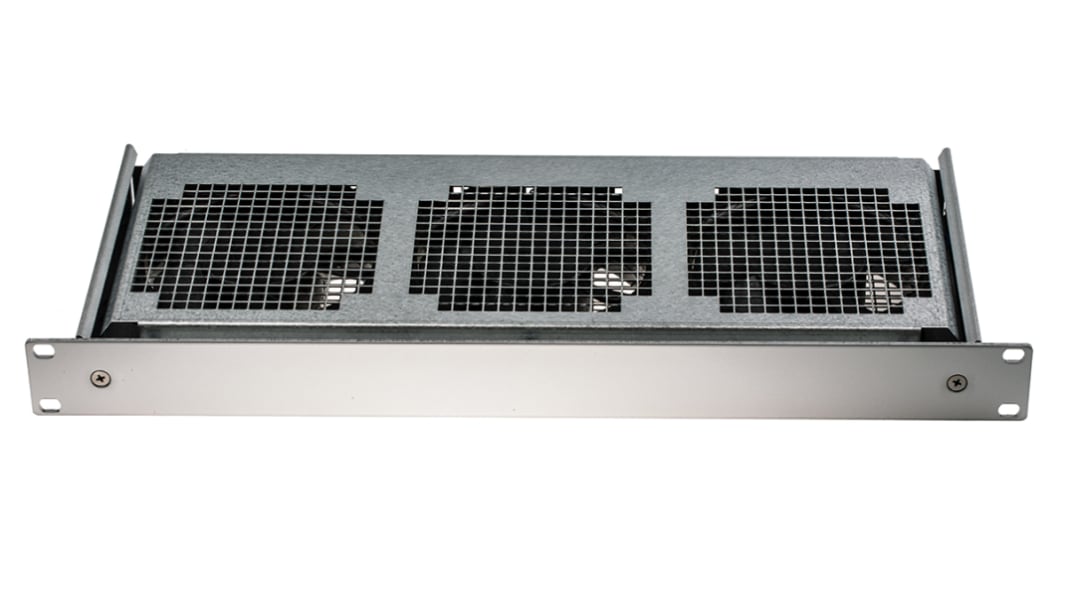

3 Fan Rack Mount Fan Tray, 1U

  • RS Stock No. 291-8694
  • Mfr. Part No. 10713100
  • Brand Schroff
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Fan Tray

Contact protected to EN292, T1 and T2
Can be adapted to sub racks
Mechanical retainer for mains cable
Ambient temperature +70°C maximum
3 fan tray 230Vac 15W @ 50Hz, Air flow 162 m³/hr, Maximum static pressure 73Pa, Noise level (per fan) 37dB(A)

Note

Technical data applies to individual fans

Specifications
Attribute Value
Type Fan Tray
Mounting Rack
Rack Units 1U
Number of Fans 3
Air Flow 440 → 520m³/h
Dimensions 483 x 193 x 43.5mm
Height 43.5mm
Length 483mm
Width 193mm
Available to back order for despatch 27/01/2020
Price Each
£ 175.53
(exc. VAT)
£ 210.64
(inc. VAT)
Units
Per unit
1 +
£175.53
