3 Fan Top Mount Fan Tray

  • RS Stock No. 136-2071
  • Mfr. Part No. 23130070
  • Brand Schroff
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

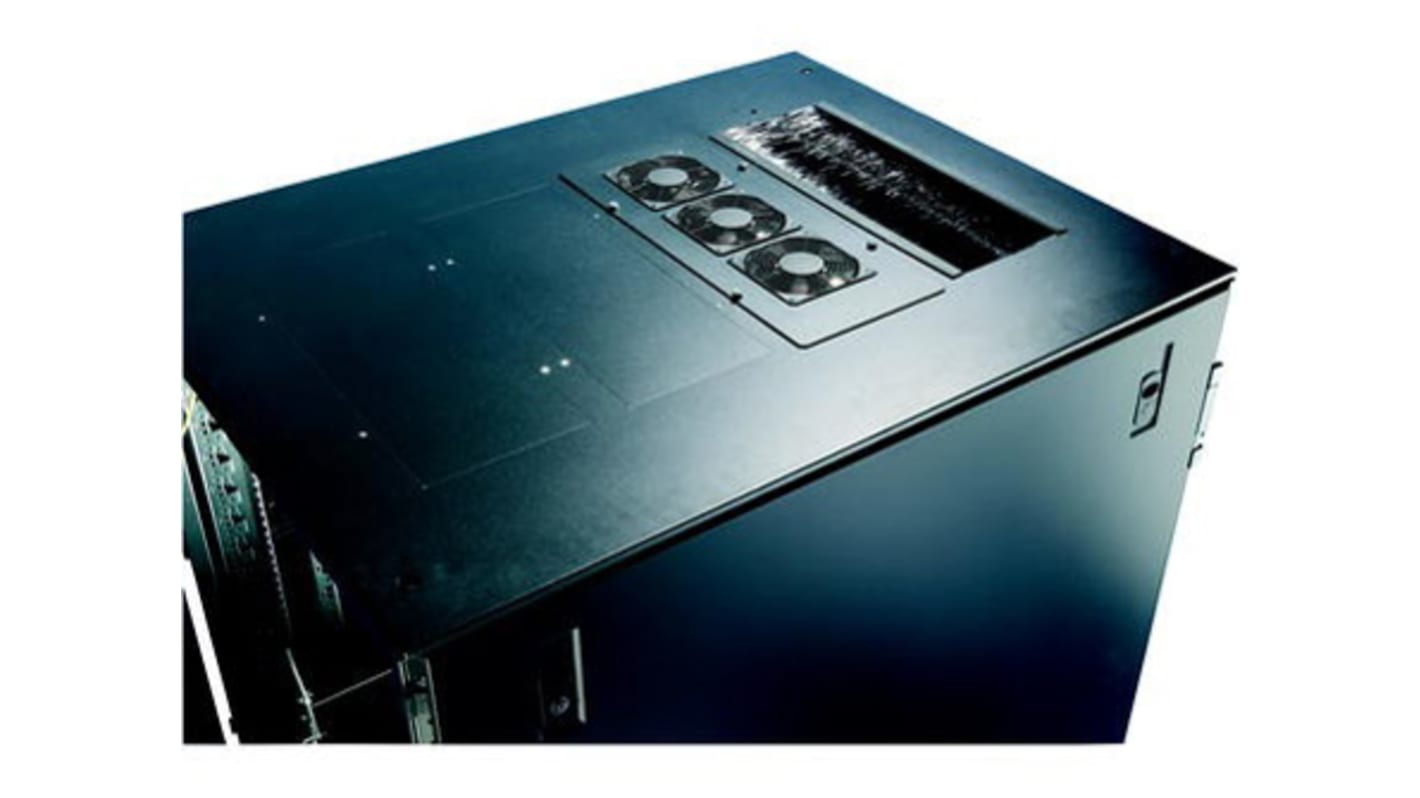

VARISTAR Fan Unit

Features and Benefits

• Colour RAL 7021
• Cut-outs can be fitted with brush strips, fan units, perforated cover plates or edge protectors
• 1.5 mm steel
• Cut-out zones are easy to cut out
• With three fans, fully wired, connecting cable IEC 320
• RoHS compliant

Supplied with

1 x fan tray, RAL 7021.
3 x axial fan 230 V ac, fully wired, connects via SCHUKO/UTE plug ‐ IEC 60320‐C12 socket.
3 x protective grills.
1 x assembly kit.

Schroff Varistar & Accessories

Specifications
Attribute Value
Type Fan Tray
Mounting Top Mount
Number of Fans 3
Air Flow 162 m³/h @ 50 Hz, 192 m³/h @ 60 Hz
Voltage Rating 230V ac
Series Varistar
Noise Level 37 dB(A) @ 50 Hz, 41 dB(A) @ 60 Hz
Available to back order for despatch 27/01/2020
Price Each
£ 170.70
(exc. VAT)
£ 204.84
(inc. VAT)
Units
Per unit
1 +
£170.70
