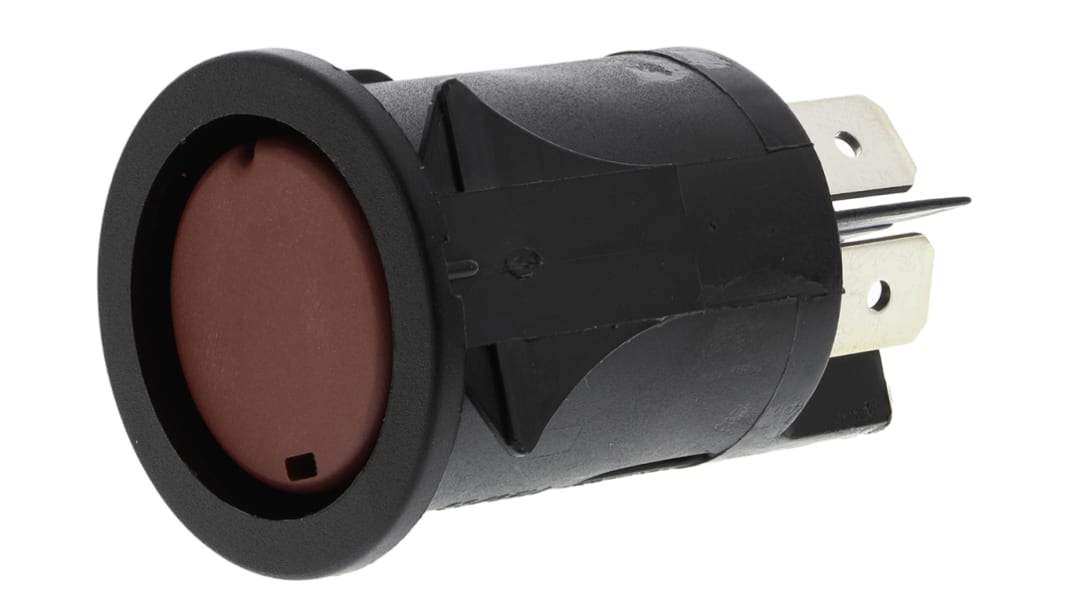

Molveno Push Button Switch, Latching, Panel Mount, 25mm Cutout, DPDT
- RS Stock No.:
- 528-7814
- Mfr. Part No.:
- SP6022C100000
- Brand:
- Molveno
777 In stock - FREE next working day delivery available
Added
Price Each
£1.66
(exc. VAT)
£1.99
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £1.66 |
| 10 - 24 | £1.50 |
| 25 - 49 | £1.36 |
| 50 - 99 | £1.25 |
| 100 + | £1.17 |
- RS Stock No.:
- 528-7814
- Mfr. Part No.:
- SP6022C100000
- Brand:
- Molveno
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Flush Illuminated and non-illuminated Pushbutton Switches
Silver contacts
Self-extinguishing thermoplastic UL94V-2
Contact Rating 16A @ 250V a.c. (Approved to 10A @ 250 V)
Mechanical Life: >105 operations
Dimensions: Depth behind panel 34mm, max. panel thickness 4.5, panel cut-out 25mm
Self-extinguishing thermoplastic UL94V-2
Contact Rating 16A @ 250V a.c. (Approved to 10A @ 250 V)
Mechanical Life: >105 operations
Dimensions: Depth behind panel 34mm, max. panel thickness 4.5, panel cut-out 25mm
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Panel Cut Out Diameter | 25mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Green |
| Contact Configuration | DPDT |
| Push Button Style | Round |
| Contact Current Rating | 16 A @ 250 V ac |
| Contact Material | Silver |
| Manufacturer Part No. | SP6022C100000 |
| Terminal Type | Tab |
