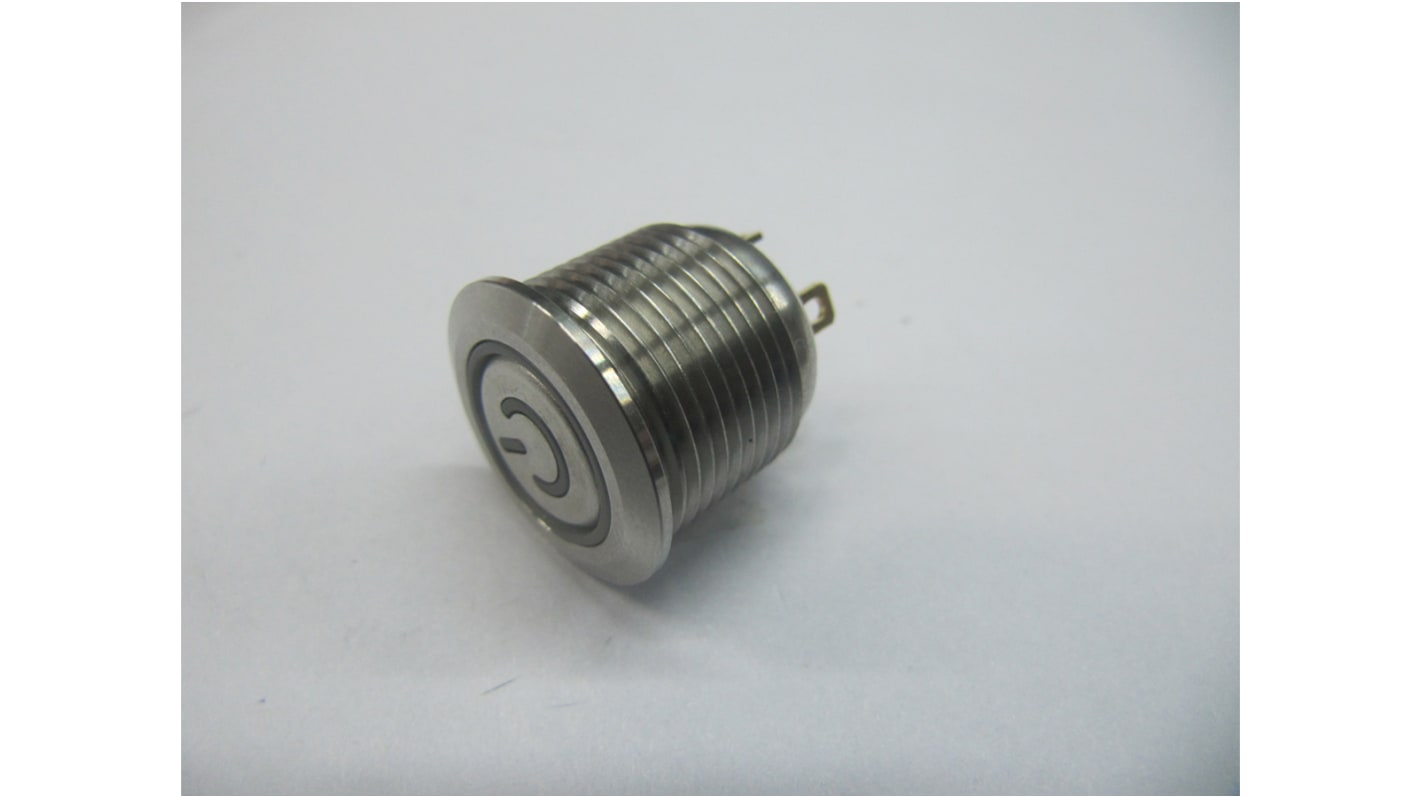

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPST, White LED, 36V dc, IP67

RS Stock No.:: 175-9661
Brand:: RS PRO

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPST, White LED, 36V dc, IP67

6 In stock - FREE next working day delivery available

Added

Price Each

£13.18

(exc. VAT)

£15.82

(inc. VAT)

Units	Per unit
1 +	£13.18

RS Stock No.:: 175-9661
Brand:: RS PRO

Technical Reference

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Push Button Anti-Vandal Switch (MPB Series)

IP67 rated. Available in 16mm, 19mm, 22mm, 25mm and high current.
Along with other industrial type applications that require vandal resistance in a public setting.
With a wide variety of options, including illuminated, sealed and long life expectancy.
The distinctive of RS Pro metal switches are light weight, high strength, corrosion resistance, aesthetic, easy heat dissipation and more.

Applications

Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.

Specifications

Attribute	Value
Switch Operation	Momentary
Illuminated	Yes
Panel Cut Out Diameter	16mm
Mounting Type	Panel Mount
Push Button Colour	Silver
Contact Configuration	SPST
Voltage Rating	36V dc
Push Button Style	Round
LED Colour	White
IP Rating	IP67
Contact Current Rating	2 A
Contact Material	Silver Alloy
Manufacturer Part No.	MPB16-A2FP-1-JR-0V
Legend	Power Symbol
Contact DC Voltage Rating	36V
Case Colour	Natural
Terminal Type	Solder
