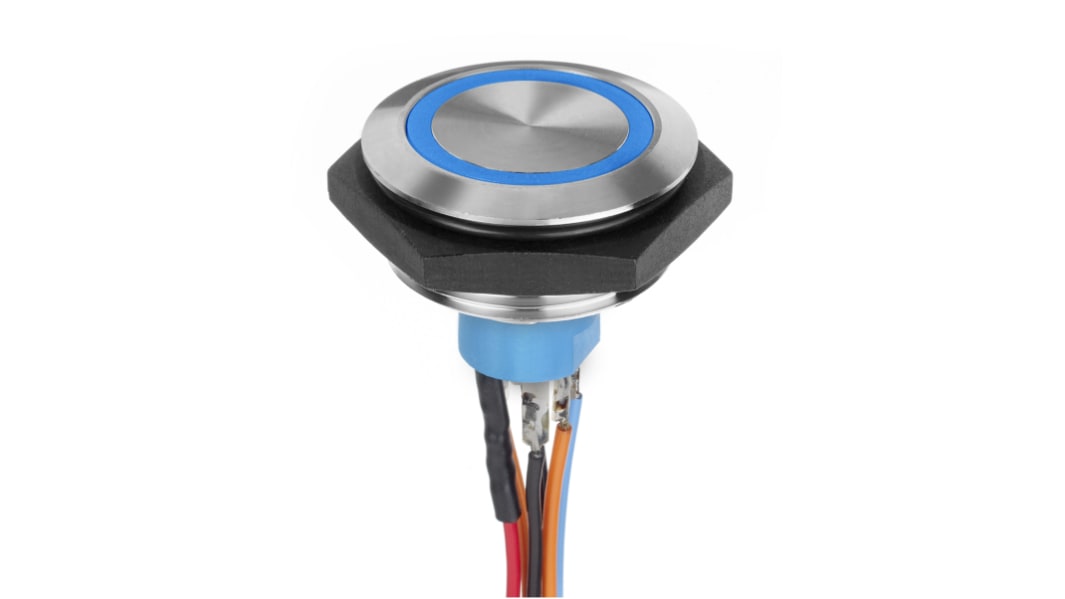

APEM Single Pole Single Throw (SPST) Momentary Blue LED Push Button Light Switch, IP67, 30.2 (Dia.)mm, Panel Mount, 30V

  • RS Stock No. 166-0773
  • Mfr. Part No. AV51122000074BK
  • Brand APEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

APEM expands its range of security switches with a series of larger diameter pushbuttons. The AV 30 mm NC/NO pushbuttons are easy to operate due to their large actuation surface. Their wider illuminated ring makes them highly visible on the panel.

Bushing diameter 30 mm
Momentary NC/NO
Illuminated ring, 7 different colors
Mechanical life: 1 million cycles

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated Yes
Contact Configuration Single Pole Single Throw (SPST)
Panel Cut Out Size 30.2 (Dia.)mm
Panel Cut Out Diameter 30.2mm
LED Colour Blue
IP Rating IP67
Actuator Colour Silver
Voltage Rating 30V dc
Contact Current Rating 1 A
Actuator Shape Round
Terminal Type Solder/Quick Connect
Contact DC Voltage Rating 30V
Actuator Type Momentary
5 In stock for FREE next working day delivery
Price Each
£ 52.21
(exc. VAT)
£ 62.65
(inc. VAT)
Units
Per unit
1 - 9
£52.21
10 - 24
£49.60
25 - 49
£46.99
50 - 99
£44.38
100 +
£41.76
