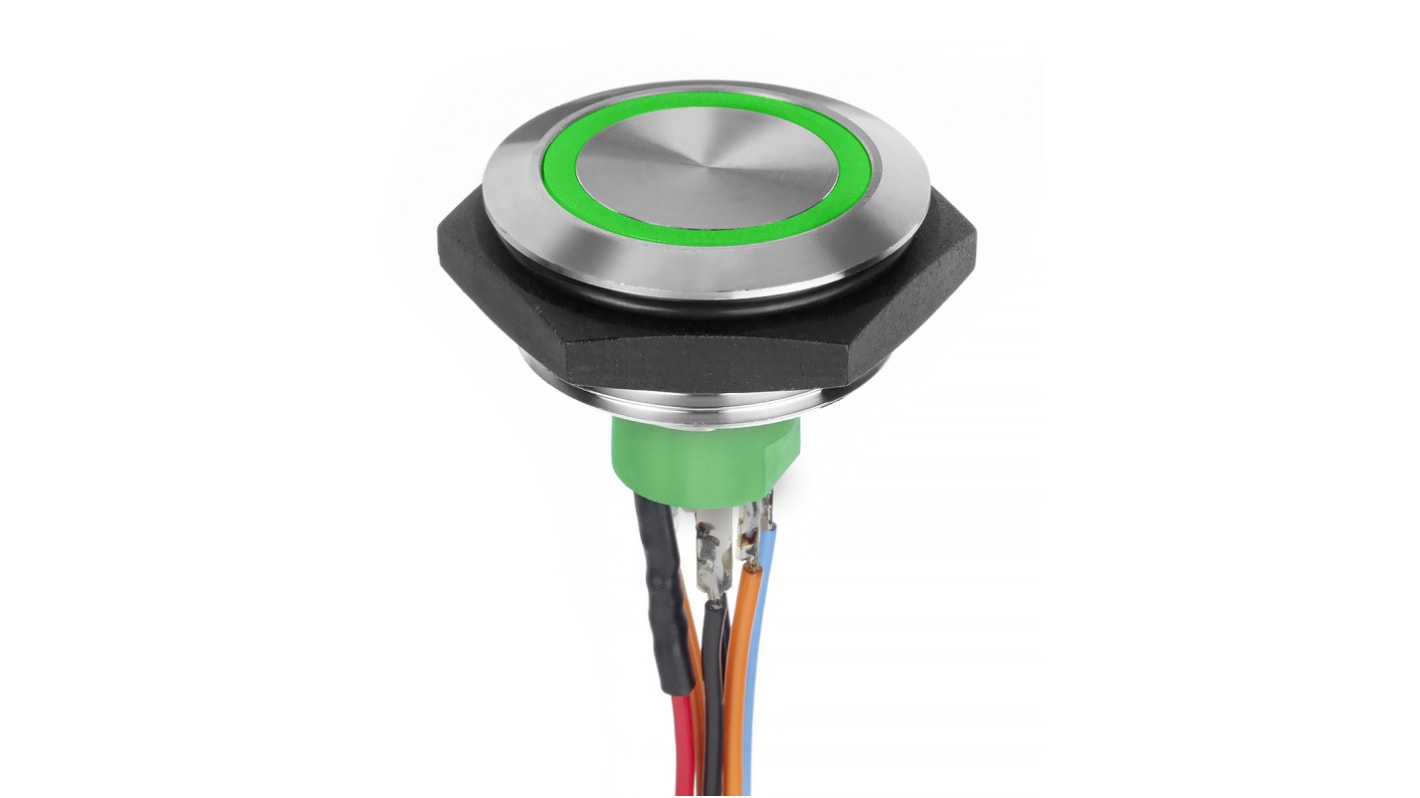

APEM Illuminated Vandal Proof Push Button Switch, Momentary, Panel Mount, 30.2mm Cutout, SPST, Green LED, 30V dc, IP67

RS Stock No.:: 166-0767
Mfr. Part No.:: AV5V022000074BK
Brand:: APEM

APEM Illuminated Vandal Proof Push Button Switch, Momentary, Panel Mount, 30.2mm Cutout, SPST, Green LED, 30V dc, IP67

3 In stock - FREE next working day delivery available

Added

Price Each

£68.40

(exc. VAT)

£82.08

(inc. VAT)

Units	Per unit
1 - 9	£68.40
10 - 49	£61.56
50 - 99	£51.31
100 - 249	£47.88
250 +	£45.93

RS Stock No.:: 166-0767
Mfr. Part No.:: AV5V022000074BK
Brand:: APEM

Technical Reference

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

APEM expands its range of security switches with a series of larger diameter pushbuttons. The AV 30 mm NC/NO pushbuttons are easy to operate due to their large actuation surface. Their wider illuminated ring makes them highly visible on the panel.

Bushing diameter 30 mm
Momentary NC/NO
Illuminated ring, 7 different colors
Mechanical life: 1 million cycles

Specifications

Attribute	Value
Switch Operation	Momentary
Illuminated	Yes
Panel Cut Out Diameter	30.2mm
Mounting Type	Panel Mount
Push Button Colour	Silver
Contact Configuration	SPST
Voltage Rating	30V dc
Push Button Style	Round
LED Colour	Green
IP Rating	IP67
Contact Current Rating	1 A
Contact Material	Silver
Manufacturer Part No.	AV5V022000074BK
Contact DC Voltage Rating	30V
Terminal Type	Solder/Quick Connect
