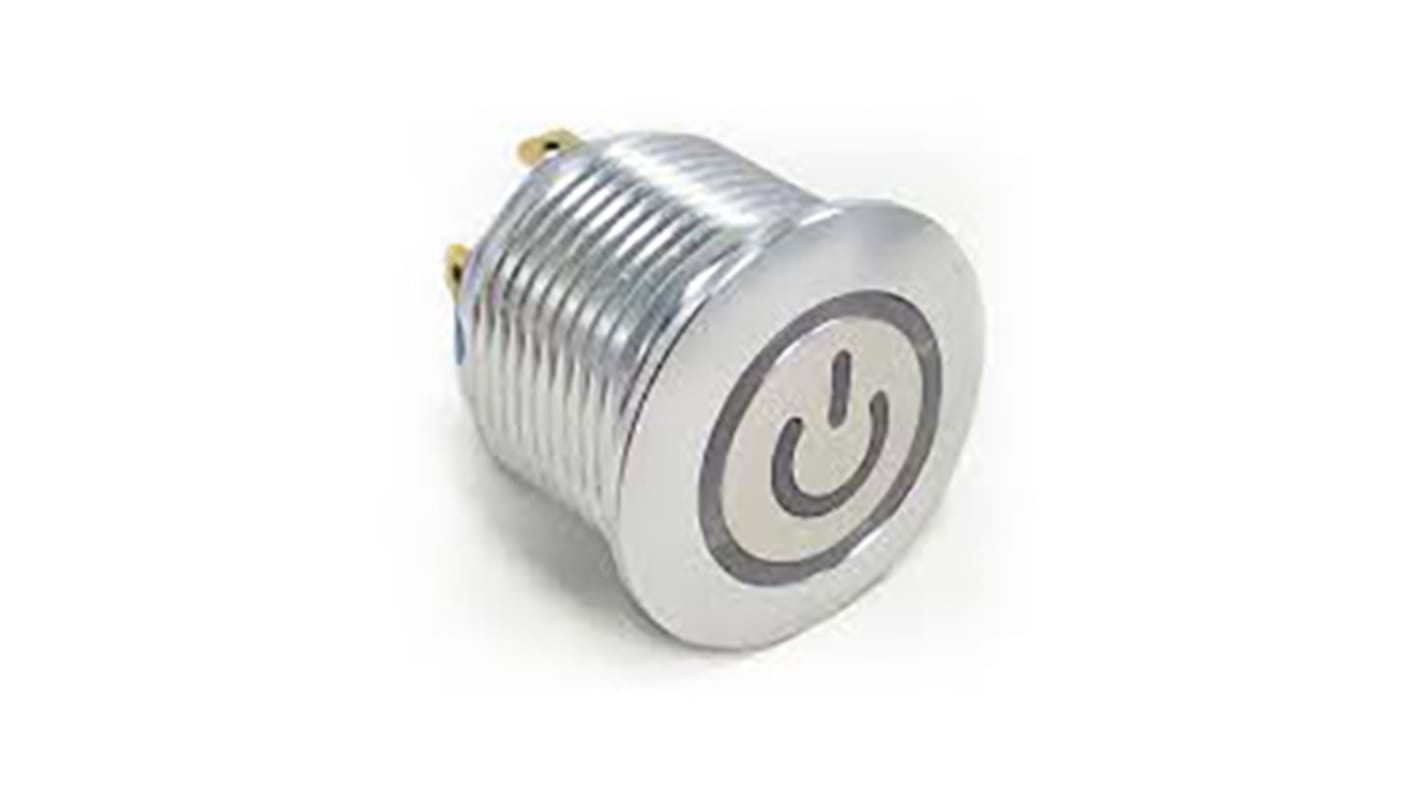

TE Connectivity Double Pole Double Throw (DPDT) Latching White LED Push Button Switch, IP67, 19.2 (Dia.)mm, Panel

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

TE Connectivity AV19 Series Anti-Vandal Switches

TE Alcoswitch anti-vandal switches have been designed with industrial security & reliability in mind. The AV19 series are a 19 mm panel mounting product, available in a variety of combinations such as momentary & latching and both with or without LED indication. The TE Alcoswitch series provides an easy user interface solution for your panel mounting applications.

Features and Benefits

Provides a highly customisable vandal-proof product with premium look & feel.
Vandal-proof design with rear mounting jam nut.
Various pushbutton symbols including plain, ring & power logo.


Typical Applications include:

Control & communications equipment.
Elevators & escalators.
Instrumentation equipment.

Standards

RoHS, REACH & UL Approved

Specifications
Attribute Value
Switch Operation Latching
Mounting Type Panel Mount
Illuminated Yes
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Size 19.2 (Dia.)mm
Panel Cut Out Diameter 19.2mm
LED Colour White
IP Rating IP67
Actuator Colour Silver
Voltage Rating 250V ac
Contact Current Rating 3 A
Actuator Shape Round
Terminal Type Wire Lug
Contact AC Voltage Rating 250V
Case Colour Silver
Actuator Type Push Button
Available to back order for despatch 07/01/2020
Price Each (In a Tray of 100)
£ 11.573
(exc. VAT)
£ 13.888
(inc. VAT)
Units
Per unit
Per Tray*
100 - 100
£11.573
£1,157.30
200 - 200
£11.16
£1,116.00
300 - 400
£10.775
£1,077.50
500 +
£10.416
£1,041.60
*price indicative
