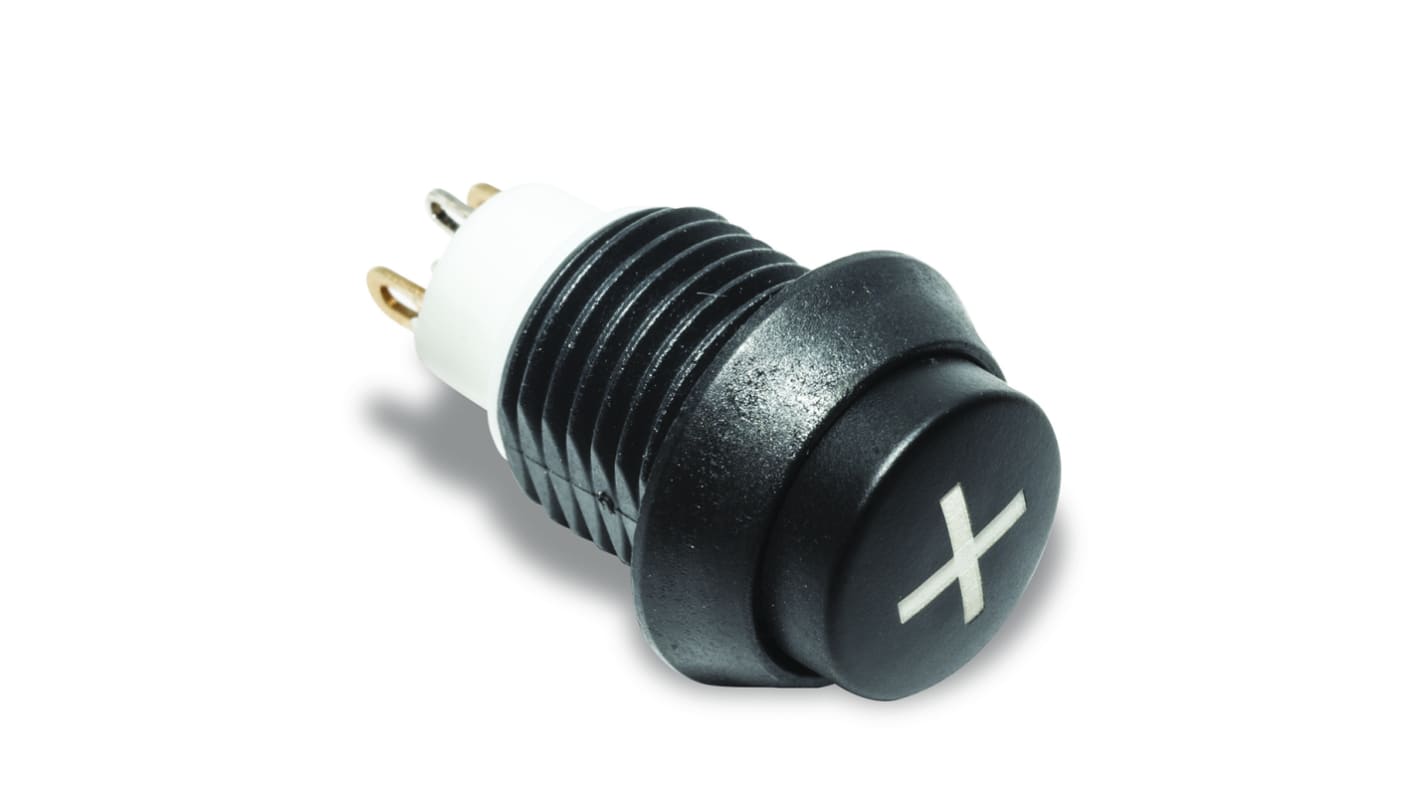

C & K Single Pole Single Throw (SPST) Momentary Blue LED Push Button Switch, IP67, 13.7 (Dia.)mm, Panel Mount, Plus

  • RS Stock No. 161-2399
  • Mfr. Part No. APB4E07TZBE001
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

C&K’s extensive range of miniature, sub miniature and ultra-miniature pushbuttons for printed circuit board, surface mount and panel mount applications include momentary and latching versions with the widest selection of actuator styles, shapes and colours. Available in SPST, SPDT, DPST and DPDT functions, C&K pushbuttons are also available in illuminated, sealed and low-profile configurations, and with smd, threaded or snap-in mounting options. Inventing Pushbutton Designs for Decades, Whether you need to switch signal level or power, a sealed or backlit solution, C&K provides the largest selection of pushbuttons. Innovative pushbutton designs for the most demanding applications keeps C&K at the forefront of pushbutton switch technology.

IP67 sealed
1,000,000 life cycle
Illumination
Threaded or snap-in mounting
Typical Applications
Harsh environments
Off-Road
Industrial
Transportation
Medical

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated Yes
Contact Configuration Single Pole Single Throw (SPST)
Panel Cut Out Size 13.7 (Dia.)mm
Panel Cut Out Diameter 13.7mm
LED Colour Blue
IP Rating IP67
Actuator Colour Black
Voltage Rating 24V dc
Contact Current Rating 200 mA @ 24 V dc
Actuator Shape Round
Terminal Type Solder
Actuator Type Push Button
Contact DC Voltage Rating 24V
Legend Plus (Symbol)
Case Colour Black
3 In stock for FREE next working day delivery
Price Each
£ 11.03
(exc. VAT)
£ 13.24
(inc. VAT)
Units
Per unit
1 - 4
£11.03
5 - 9
£7.83
10 - 24
£7.43
25 +
£7.06
