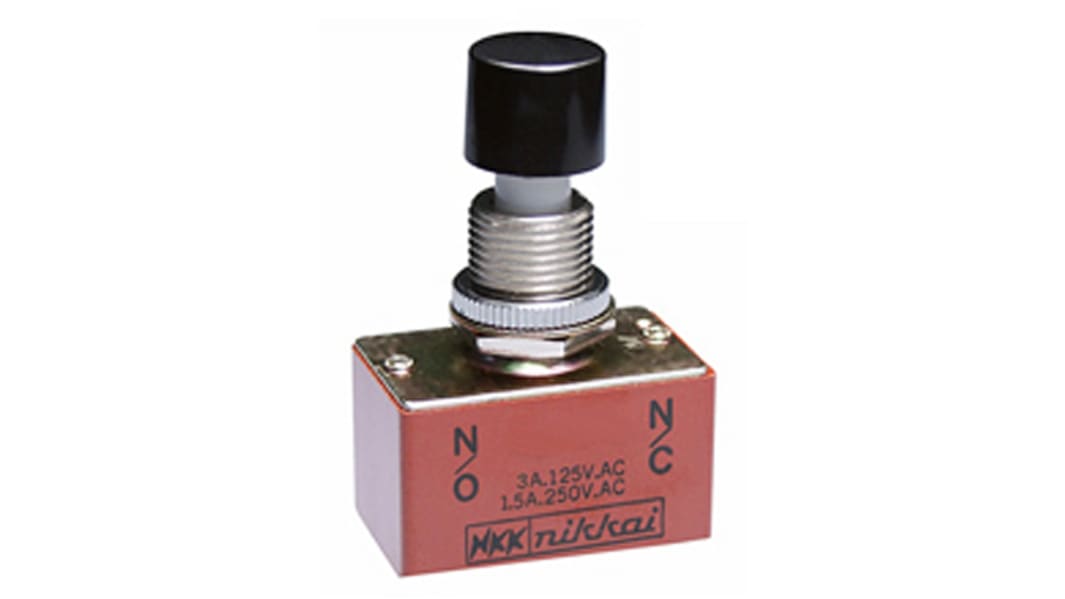

NKK Switches Double Pole Double Throw (DPDT) Momentary Push Button Switch, 12.5 (Dia.)mm, Bushing, 125 V ac, 250 V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

NKK Low/Medium Capacity Pushbuttons SB Series

The NKK SB series are a standard pushbutton offering a 12mm cut out and various different switch configurations. The SB series offer good product life and a reliable switch supplied with either screw terminals or solder lugs to meet customer requirements.

Standards

UL File No. E44145, CSA File No. 023535_0_000

NKK Pushbutton Switches

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Bushing
Illuminated No
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Size 12.5 (Dia.)mm
Panel Cut Out Diameter 12.5mm
Actuator Colour Black
Voltage Rating 125 V ac, 250 V ac
Contact Current Rating 1.5 A @ 250 V ac, 3 A @ 125 V ac
Actuator Shape Round
Terminal Type Solder Lug
Case Colour Orange
Contact AC Voltage Rating 125 V, 250 V
Actuator Type Plunger
78 In stock for delivery within 5 working days
Price Each
£ 5.47
(exc. VAT)
£ 6.56
(inc. VAT)
Units
Per unit
1 - 4
£5.47
5 - 19
£5.20
20 - 99
£4.94
100 +
£4.68
Not available for guaranteed pre 9am/10am delivery
