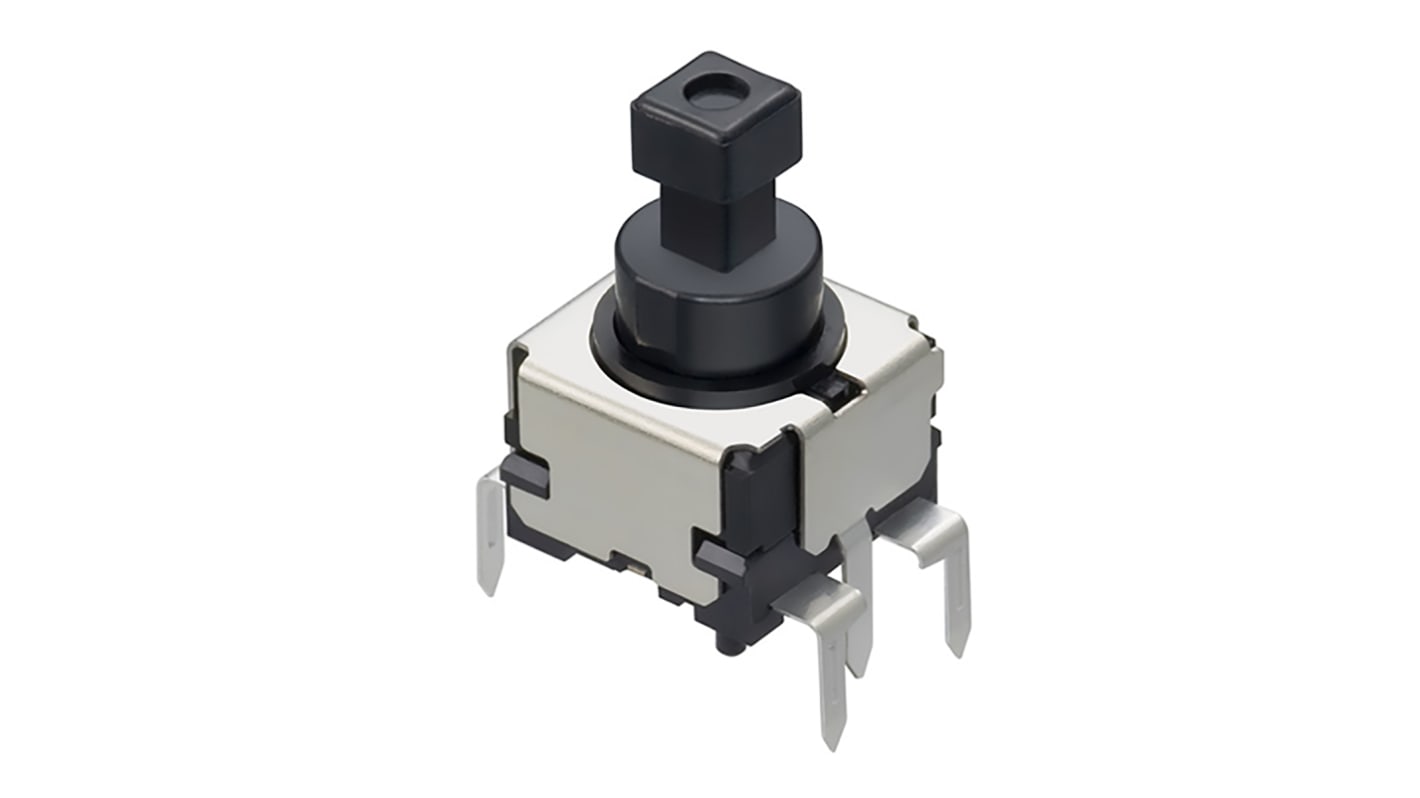

Alps Alpine Single Pole Double Throw (SPDT) Latching Push Button Switch, PCB, 14.5V dc

  • RS Stock No. 123-9032
  • Mfr. Part No. SPEF210101
  • Brand Alps Alpine
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Alps SPEF Series Push Button Switches

The Alps SPEF series of latching surface mount push button switches are offered with lead-free soldering. The SPEF series can be easily PCB mounted with reflow or DIP terminal types.


Features and Benefits

Latching operation.
DIP or reflow terminal type.
Silent switching actuator.
Suitable for use within the Automotive industry.
30,000 cycle mean time before failure (MTBF).

Alps Push Switches

Specifications
Attribute Value
Switch Operation Latching
Mounting Type PCB
Illuminated No
Contact Configuration Single Pole Double Throw (SPDT)
Actuator Colour Black
Voltage Rating 14.5V dc
Contact Current Rating 1 A
Actuator Shape Square
Terminal Type Solder Pin
Actuator Type Push Button
Contact DC Voltage Rating 14.5V
5 in stock for FREE next working day delivery
15 available from Europe for delivery within 5 working day(s).
Price Each (In a Pack of 5)
£ 3.528
(exc. VAT)
£ 4.234
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£3.528
£17.64
25 - 45
£3.222
£16.11
50 - 95
£3.136
£15.68
100 - 245
£3.052
£15.26
250 +
£2.974
£14.87
*price indicative
