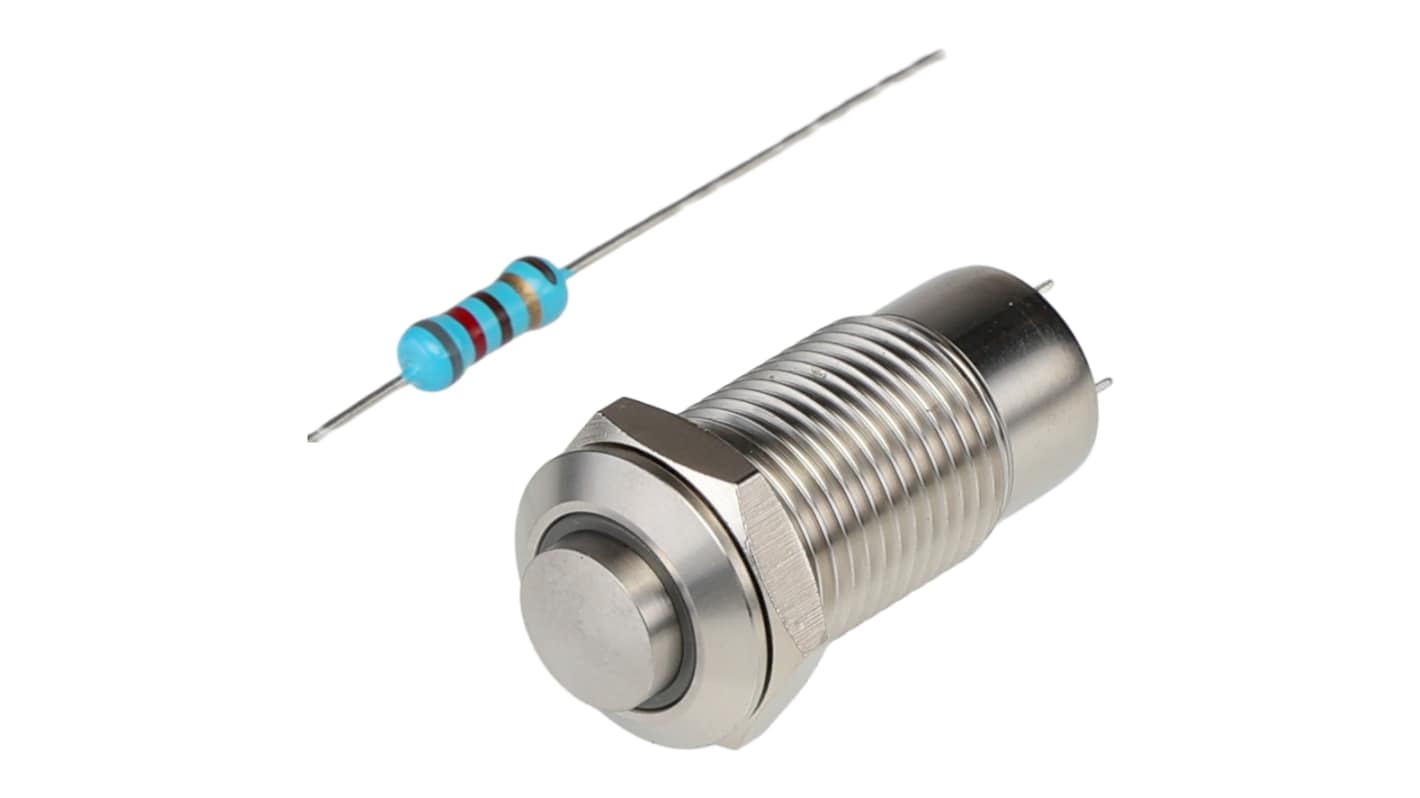

RS PRO Single Pole Single Throw (SPST) Latching Blue LED Push Button Switch, IP40, 12 (Dia.)mm, Panel Mount, 12V ac/dc

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Stainless Steel Push Button Switch - Raised Actuator

RS Pro anti-vandal stainless steel switches offer a cost effective, durable range of panel mounting options suitable for a wide range of applications. The range offers a variety of coloured LED rings, so status identification is simple. This range of anti-vandal switches are durable for use within both demanding internal & external applications, along with installations exposed to public areas.

Features and Benefits

Cost effective product without compromise on premium construction.
IP65 rated.
Offered with various coloured LED rings.
Silver alloy contacts for great conductivity.
Designed for use in harsh environments, both internal & external.
Can be used within applications where general public are in contact.

Specifications
Attribute Value
Switch Operation Latching
Mounting Type Panel Mount
Illuminated Yes
Contact Configuration Single Pole Single Throw (SPST)
Panel Cut Out Size 12 (Dia.)mm
Panel Cut Out Diameter 12mm
LED Colour Blue
IP Rating IP40
Actuator Colour Silver
Voltage Rating 12V ac/dc
Contact Current Rating 15 mA
Actuator Shape Round
Terminal Type Quick Connect
Actuator Type Raised
Contact DC Voltage Rating 36V
79 In stock for FREE next working day delivery
Price Each
£ 8.45
(exc. VAT)
£ 10.14
(inc. VAT)
Units
Per unit
1 - 9
£8.45
10 - 24
£8.03
25 - 49
£7.63
50 - 99
£7.24
100 +
£6.89
