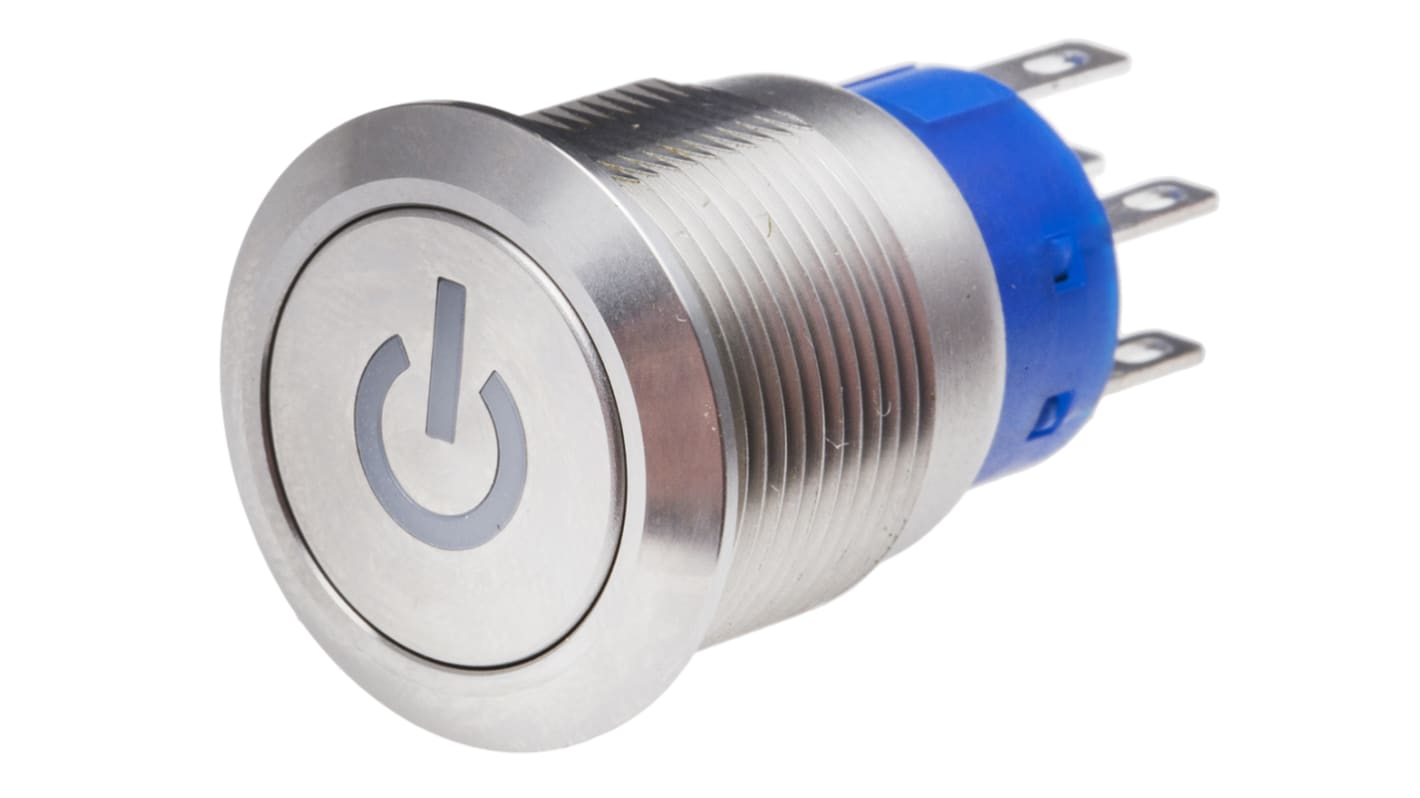

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, SPDT, White LED, 250V ac, IP67
- RS Stock No.:
- 111-5829
- Brand:
- RS PRO
Available to back order for despatch 18/06/2024
Added
Price Each
£14.95
(exc. VAT)
£17.94
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £14.95 |
| 5 - 9 | £14.50 |
| 10 - 24 | £14.05 |
| 25 - 49 | £13.30 |
| 50 + | £12.26 |
- RS Stock No.:
- 111-5829
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO Single Pole Double Throw (SPDT) Latching White LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mounting, 250 V AC, Power
You can regulate the flow of power through a circuit with this single pole double throw (SPDT) latching white LED push button switch from RS PRO. It's designed for use in a variety of industrial environments, including food manufacturing lines and research laboratories.
This device may be soldered or panel mounted for ease of installation. Its compact size allows it to fit into tighter spaces. The copper contacts ensure strong connectivity and minimal power loss while you're working. The unit is also marked with a power symbol, making it easy to identify.
The component has an IP67 rating, indicating that it's suitable for use in dusty conditions. It can also withstand submersion for half an hour in up to one metre of water. You'll find this switch used in telecommunications, manufacturing and medical equipment.
This device may be soldered or panel mounted for ease of installation. Its compact size allows it to fit into tighter spaces. The copper contacts ensure strong connectivity and minimal power loss while you're working. The unit is also marked with a power symbol, making it easy to identify.
The component has an IP67 rating, indicating that it's suitable for use in dusty conditions. It can also withstand submersion for half an hour in up to one metre of water. You'll find this switch used in telecommunications, manufacturing and medical equipment.
Features and Benefits
- Round, flat silver actuator
- Natural case colour
- Contact AC voltage rating of 250 V AC
- Single Pole Double Throw (SPDT) contact configuration
- Contact current rating of 5 A
- Copper contact material
- Illuminated
- Illumination voltage of 24 V
- IP67 rated
- White LED colour
- Power symbol
- Panel mounting type
- Panel cut out size of 19.2 mm (diameter)
- Standards met include cULus Recognized E 187490, IK10
- Latching switch operation
- Solder pin terminal type
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 19mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | White |
| IP Rating | IP67 |
| Contact Current Rating | 5 A |
| Contact Material | Copper |
| Legend | Power Symbol |
| Contact AC Voltage Rating | 250V |
| Manufacturer Part No. | MPB19-D0F11P-1220-JQ |
| Case Colour | Natural |
| Terminal Type | Solder Pin |
