- RS Stock No.:
- 111-3901
- Brand:
- RS PRO
Available to back order for despatch 11/06/2024
Added
Price Each
£14.95
(exc. VAT)
£17.94
(inc. VAT)
Units | Per unit |
1 - 4 | £14.95 |
5 - 9 | £14.50 |
10 - 24 | £14.05 |
25 - 49 | £13.30 |
50 + | £12.26 |
- RS Stock No.:
- 111-3901
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

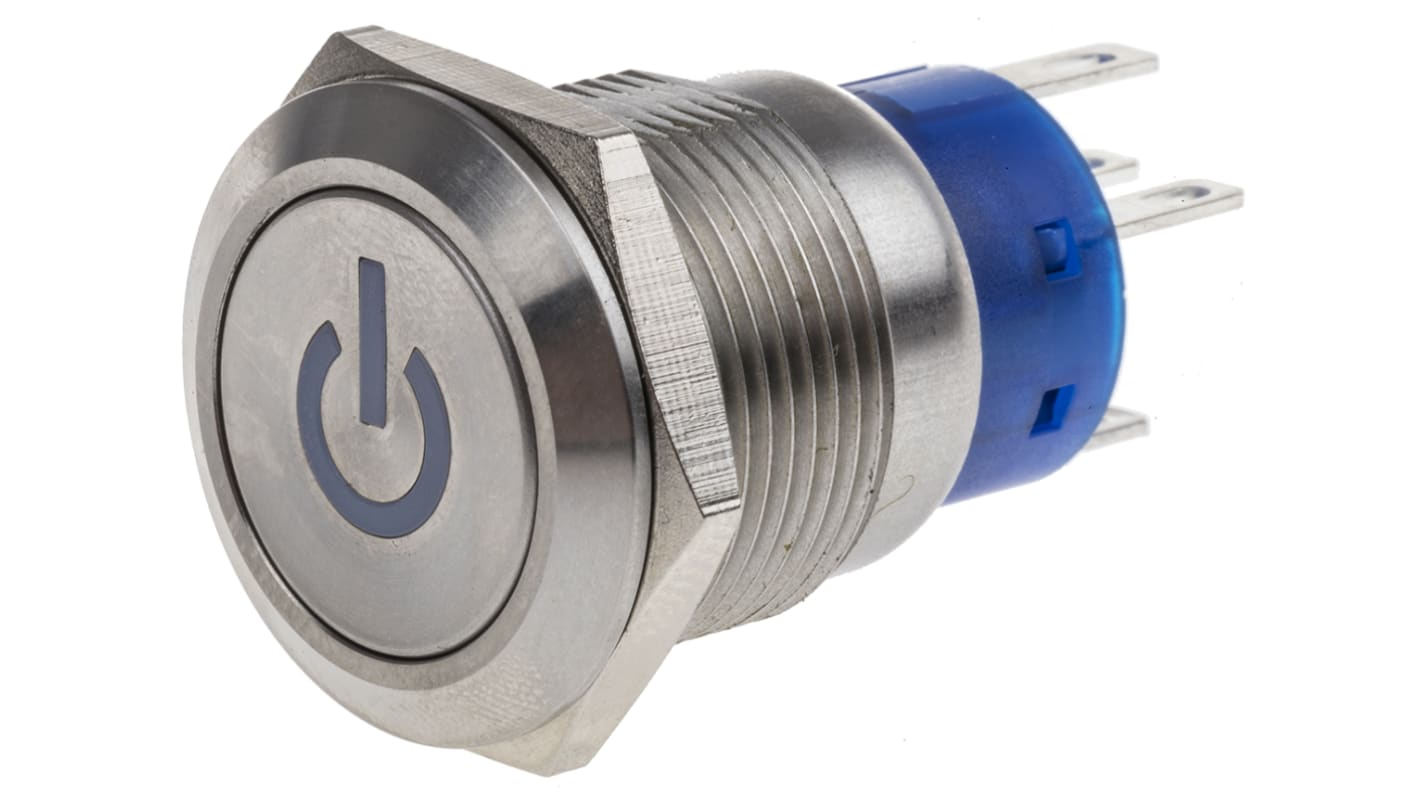

RS PRO Single Pole Double Throw (SPDT) Latching Push Button Switch, IP67, 19 mm (Dia.), Panel Mounting, Power Symbol, 250 V AC
Use this single pole double throw (SPDT) latching push button switch from RS PRO to control the flow of electricity through a circuit. It's made for industrial settings such as food production lines and scientific labs, and it's clearly marked with a power symbol for ease of identification.
The switch has an IP67 rating, making it safe to use in dirty and dusty environments, such as factories or workshops. The rating also means it can withstand immersion in one metre of water for up to 30 minutes. The part delivers reliable performance as the contacts are made of copper, which ensures good connectivity and minimises the risk of power loss. Switches like this one are often installed in machinery, communications technology or medical equipment.
The switch has an IP67 rating, making it safe to use in dirty and dusty environments, such as factories or workshops. The rating also means it can withstand immersion in one metre of water for up to 30 minutes. The part delivers reliable performance as the contacts are made of copper, which ensures good connectivity and minimises the risk of power loss. Switches like this one are often installed in machinery, communications technology or medical equipment.
Features and Benefits
- Round, flat silver actuator
- Natural case colour
- Contact AC voltage rating of 250 V AC
- Single Pole Double Throw (SPDT) contact configuration
- Contact current rating of 5 A
- Copper contact material
- Illuminated
- Illumination voltage of 24 V
- IP67 rated
- Power symbol
- Panel mounting type
- Panel cut out size of 19 mm (diameter)
- Standards met include cULus, E 187490 and IK10
- Latching switch operation
- Solder pin terminal type
Specifications
Attribute | Value |
---|---|
Switch Operation | Latching |
Illuminated | Yes |
Panel Cut Out Diameter | 19mm |
Mounting Type | Panel Mount |
Push Button Colour | Silver |
Contact Configuration | SPST |
Voltage Rating | 250V ac |
Push Button Style | Round |
IP Rating | IP67 |
Contact Current Rating | 5 A |
Contact Material | Copper |
Legend | Power Symbol |
Case Colour | Natural |
Manufacturer Part No. | MPB19-D0F11P-124-JQ |
Contact AC Voltage Rating | 250V |
Terminal Type | Solder Pin |
