- RS Stock No.:
- 664-799
- Mfr. Part No.:
- AL8Q-P00
- Brand:
- Idec
5 In stock - FREE next working day delivery available
Added
Price Each
£4.61
(exc. VAT)
£5.53
(inc. VAT)
Units | Per unit |
1 + | £4.61 |
- RS Stock No.:
- 664-799
- Mfr. Part No.:
- AL8Q-P00
- Brand:
- Idec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

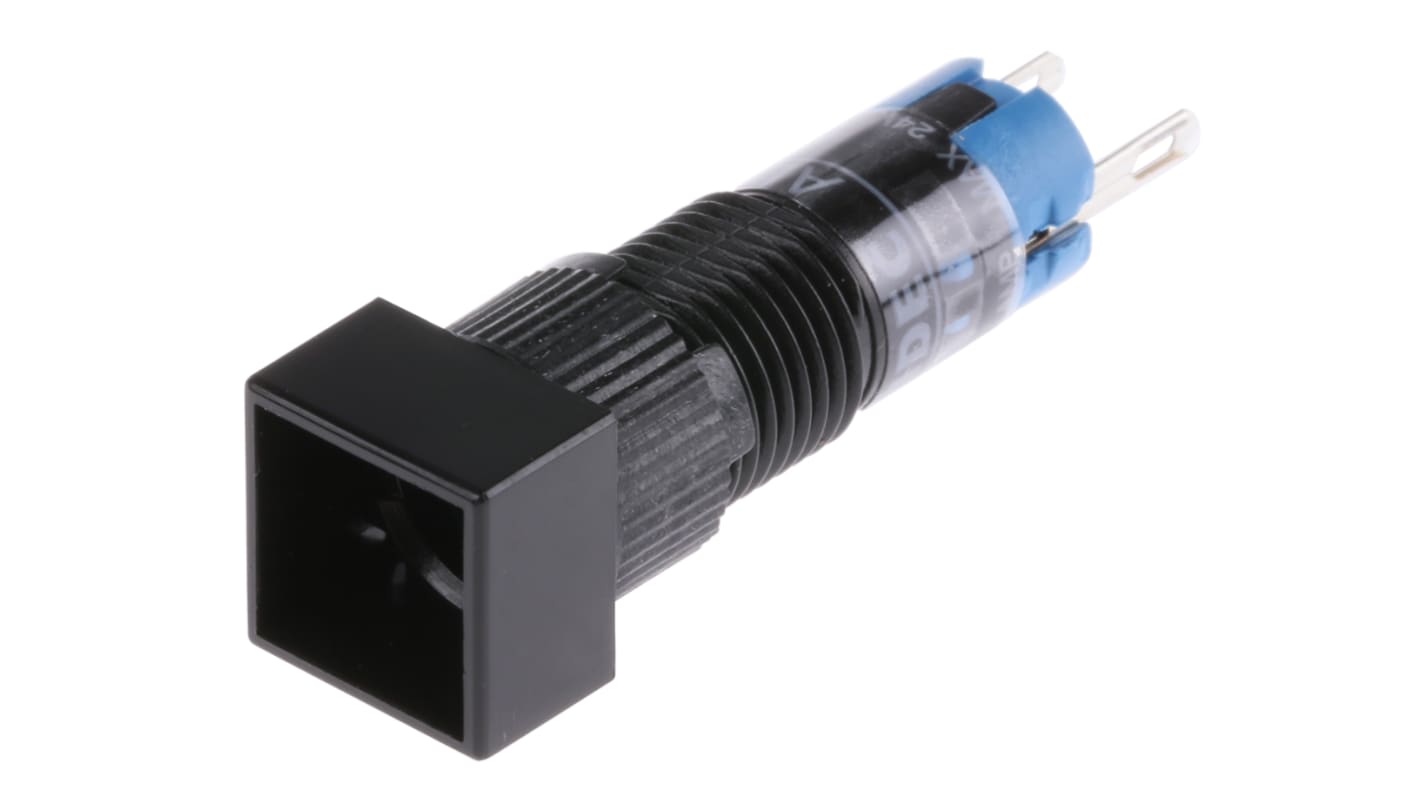

Sub-miniature Lampholders
8mm contact indicators for panel mounting.
LED illumination
Indicators are available in both square and round styles
Suitable LEDs and lenses are supplied separately
Indicators are available in both square and round styles
Suitable LEDs and lenses are supplied separately
LED
A range of LEDs specifically for use with this sub-miniature indicator series. Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow).
Lenses
Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc.
Plug-In Base
A plug-in base which enables a switch or indicator to be surface mounted on a front panel or PCB.
Fitting Tool Kit
A fitting tool kit consisting of mounting tool, aligning tool, lamp remover and screen remover.
A range of LEDs specifically for use with this sub-miniature indicator series. Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow).
Lenses
Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc.
Plug-In Base
A plug-in base which enables a switch or indicator to be surface mounted on a front panel or PCB.
Fitting Tool Kit
A fitting tool kit consisting of mounting tool, aligning tool, lamp remover and screen remover.
Specifications
Attribute | Value |
---|---|
Accessory Type | Bezel |
For Use With | AL8 Series |
