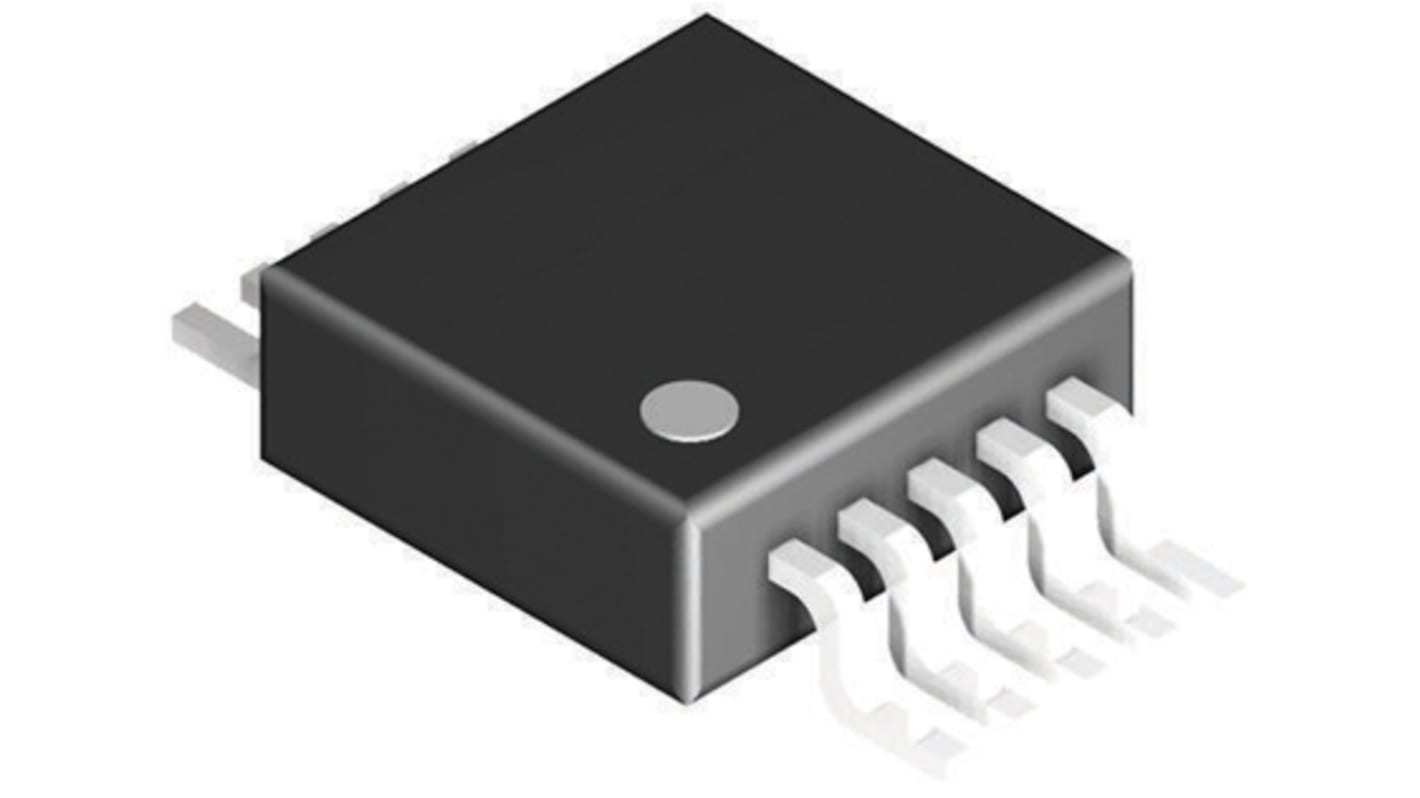

PGA113AIDGST Texas Instruments, Programmable Gain Amplifier, Rail to Rail Output, 10-Pin VSSOP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

Programmable Gain Amplifiers (PGA), Texas Instruments

Programmable Gain Amplifiers (PGA)

Programmable Gain Amplifiers are Operational, Instrumentation or Differential Amplifiers in which the gain can be programmed or selected, either via hardware (IC pin selection) or software using a serial communications link.

Specifications
Attribute Value
Power Supply Type Single
Typical Single Supply Voltage 2.2 → 5.5 V
Maximum Input Offset Voltage ±325µV
Maximum Input Resistance 150Ω
Number of Channels per Chip 1
Rail to Rail Rail to Rail Output
Mounting Type Surface Mount
Package Type VSSOP
Pin Count 10
Output Type Rail to Rail
Dimensions 3.1 x 3.1 x 0.95mm
Height 0.95mm
Width 3.1mm
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +125 °C
Length 3.1mm
Available to back order for despatch when stock is available
Price Each (On a Reel of 250)
£ 1.253
(exc. VAT)
£ 1.504
(inc. VAT)
Units
Per unit
Per Reel*
250 +
£1.253
£313.25
*price indicative
