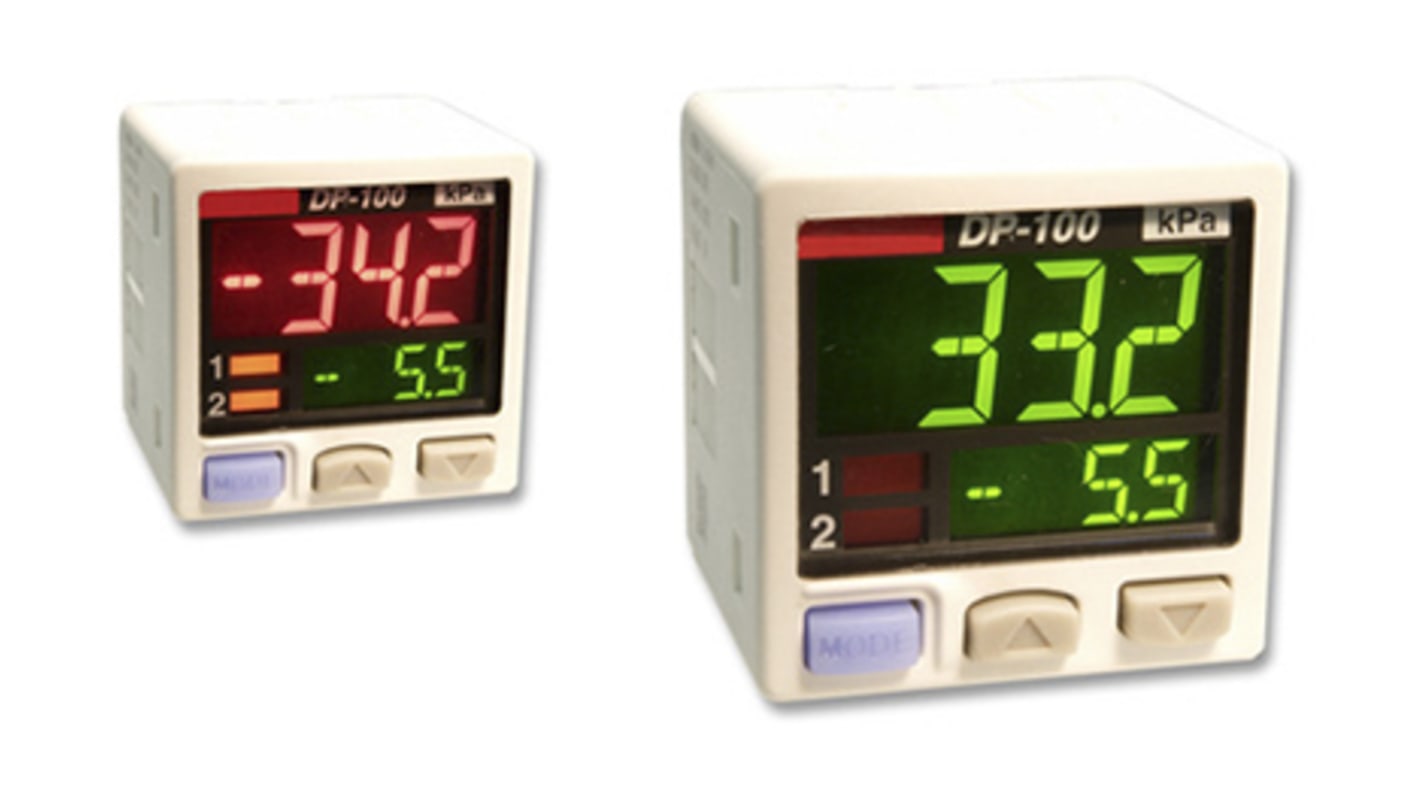

Panasonic Pressure Sensor Gauge

  • RS Stock No. 914-8356
  • Mfr. Part No. DP101AN
  • Brand Panasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading -0.1MPa
Maximum Pressure Reading 0.1MPa
Output Type Analogue + NPN-NO/NC Programmable
Media Measured Non-Corrosive Gas
Process Connection NPT 1/8
Analogue Output 1 → 5 V dc, 4 → 20 mA
Electrical Connection Wire Lead
Response Time 5000 ms
Maximum Current 100 mA
Supply Voltage 12 → 24 V dc
Housing Material PBT
IP Rating IP40
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
Mounting Type Panel Mount
Available to back order for despatch 05/02/2020
Price Each
£ 88.32
(exc. VAT)
£ 105.98
(inc. VAT)
Units
Per unit
1 +
£88.32
