Panasonic Pressure Sensor Gauge

  • RS Stock No. 914-8344
  • Mfr. Part No. DP101AEP
  • Brand Panasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

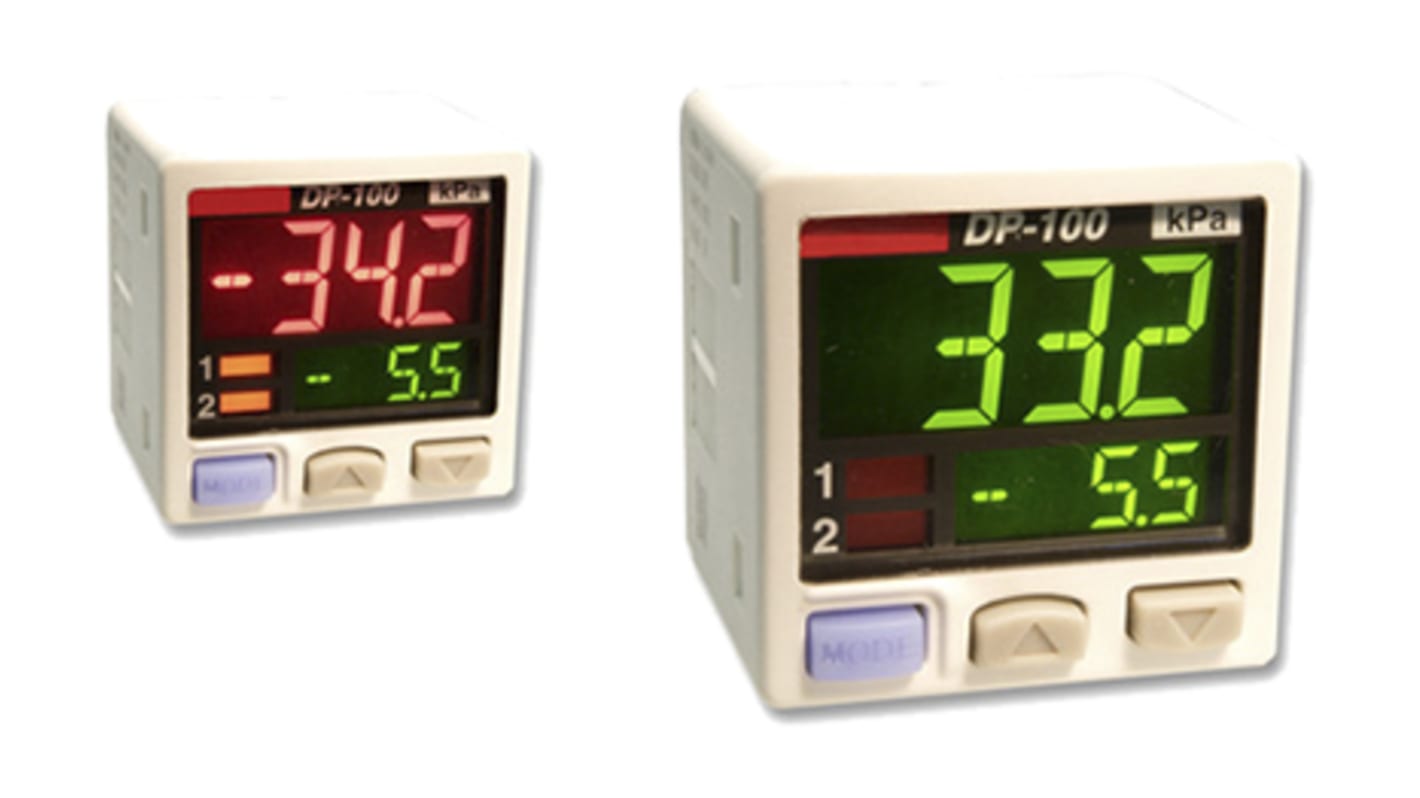

DP100 — Digital Pressure Gauge

Digital pressure gauge for relative pressure
Pressure measurement to 1 or 10 bar
Overpressure and vacuum measurement
Two-line LCD display
With and without analogue output and input
Data copying function
Adjustable reaction time
Pressure unit freely selectable
Programming of reference pressure
External zero alignment
Key lock function

Application

Suction pressure check
Reference pressure check
Leak test

Accessories

MSDP11 mounting bracket
MSDP12 panel mounting holder

Approvals

CE

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading -100kPa
Maximum Pressure Reading 100kPa
Accuracy ±1 %
Output Type PNP Open Collector
Media Measured Non-Corrosive Gas
Process Connection G1/8
Analogue Output 1 → 5 V dc, 100 mA
Electrical Connection Wire Lead
Response Time 2.5 ms
Supply Voltage 12 → 24 V dc
Housing Material PBT
IP Rating IP40
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
39 In stock for FREE next working day delivery
Price Each
£ 88.32
(exc. VAT)
£ 105.98
(inc. VAT)
Units
Per unit
1 +
£88.32
