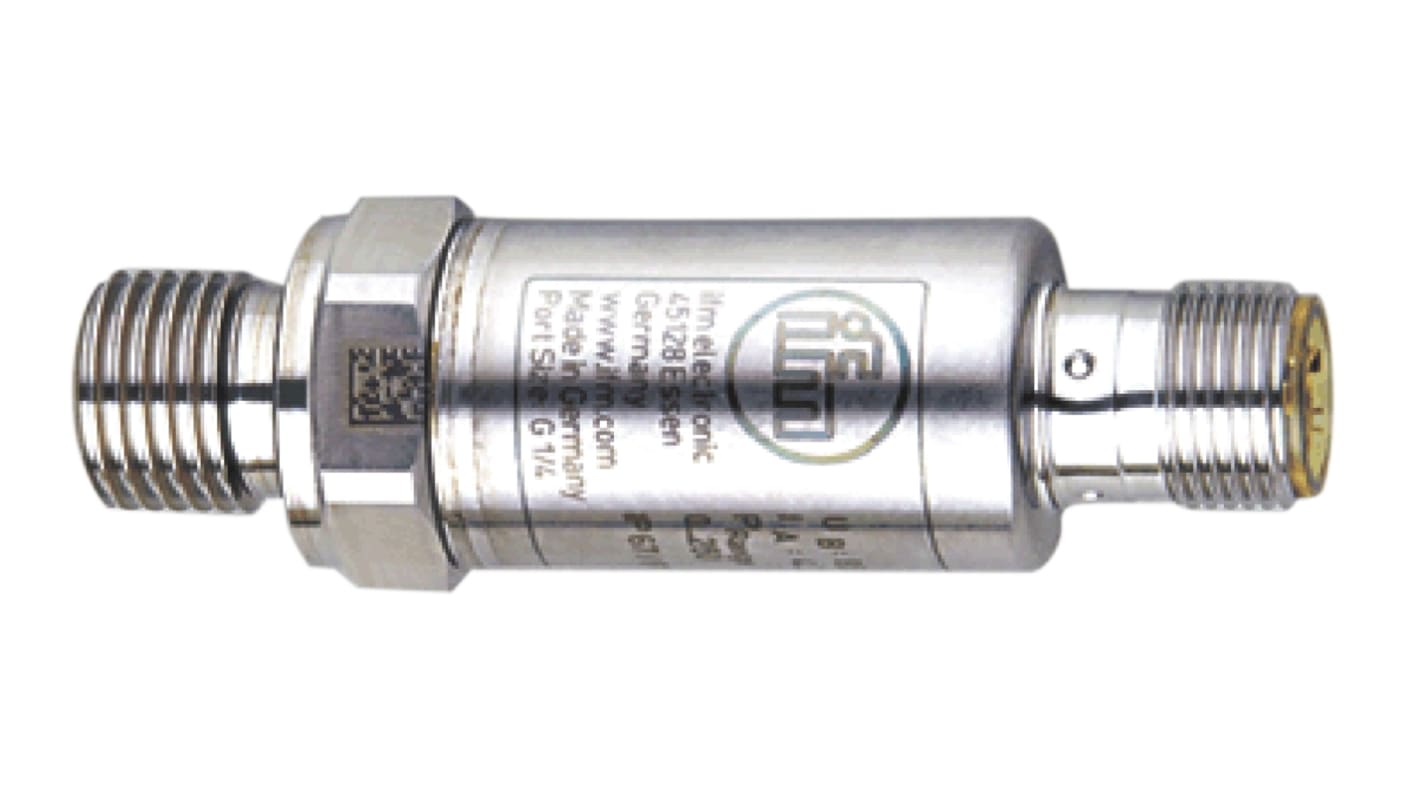

ifm electronic Pressure Sensor, 0bar Min, 160bar Max, Analogue Output, Relative Reading
- RS Stock No.:
- 835-3936
- Mfr. Part No.:
- PU5412
- Brand:
- ifm electronic
1 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£115.61
(exc. VAT)
£138.73
(inc. VAT)
| Units | Per unit |
| 1 + | £115.61 |
- RS Stock No.:
- 835-3936
- Mfr. Part No.:
- PU5412
- Brand:
- ifm electronic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PT54 & PU5 IFM Pressure Sensors
This range of IFM electronic pressure sensors are suitable for the detection of relative pressure liquids and gases of the fluid group 2 (according to Article 9 of the Pressure Equipment Directive). The sensors are available with different pressure ratings and measuring ranges to suit a number of industrial applications.
IP 67 / IP 69K
Analogue output
0-10 V analogue
Reverse polarity protection
Overload Protection
Short-circuit proof
Analogue output
0-10 V analogue
Reverse polarity protection
Overload Protection
Short-circuit proof
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 160bar |
| Accuracy | ±0.5 % |
| Output Type | Analogue |
| Media Measured | Gas, Liquid |
| Process Connection | G1/4 |
| Electrical Connection | M12 Connector |
| Analogue Output | 0 → 10 V |
| Response Time | 1 ms |
| Supply Voltage | 16 → 36 V dc |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +90°C |
| IP Rating | IP67, IP69K |
