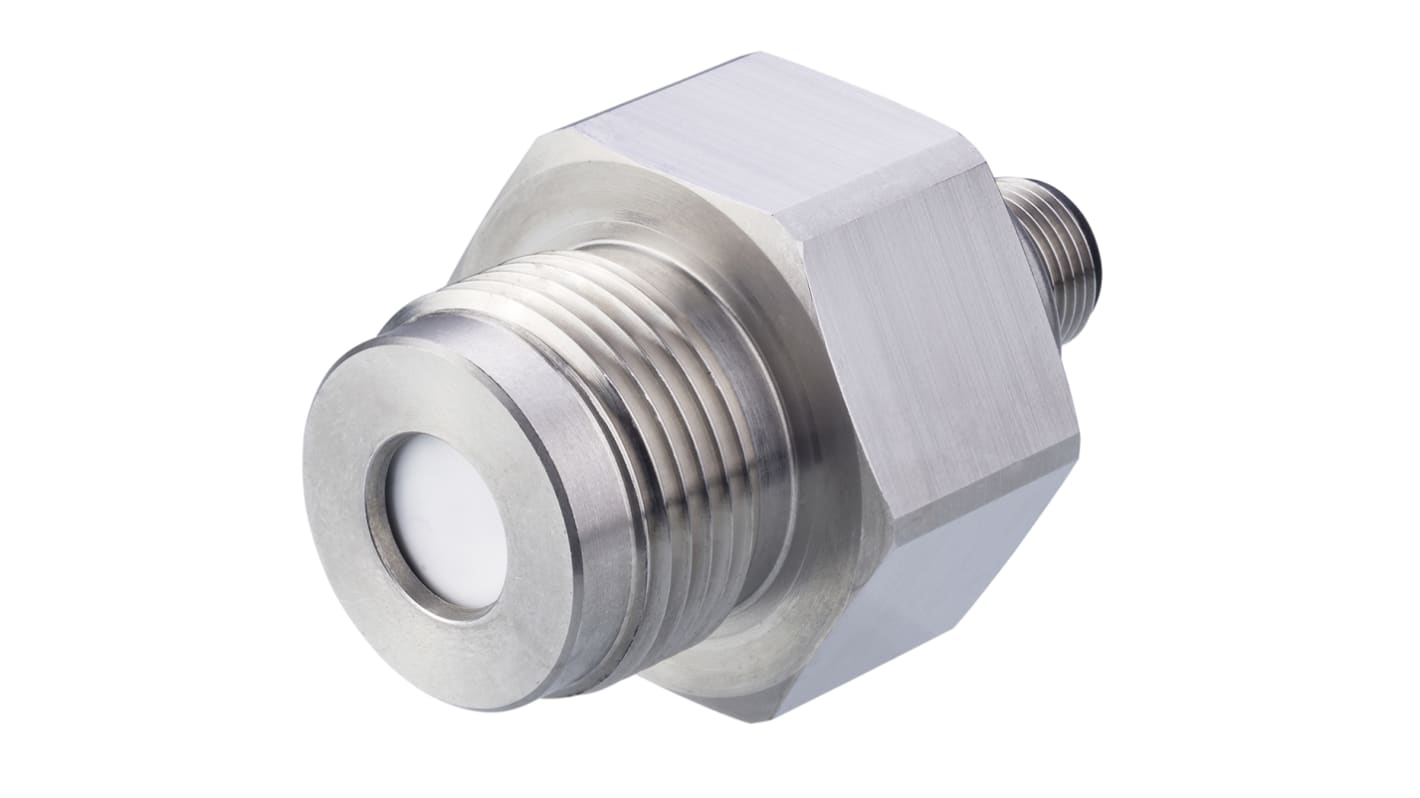

RS PRO Pressure Sensor Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS Pressure Transducers/ Transmitters

One piece stainless steel body
Multipurpose, high performance
Temperature compensated, strain gauge technology
+/- 0.25% accuracy
-40 to + 100/125°C transmitter/ transducer range
2x rated overpressure up to 250mbar

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading -1bar
Maximum Pressure Reading 5bar
Accuracy <±0.25 %
Output Type Current
Media Measured Water
Process Connection G3/4
Analogue Output 4 → 20 mA
Electrical Connection M12 Connector
Maximum Current 28 mA
Supply Voltage 9 → 32 V dc
Housing Material Stainless Steel
IP Rating IP65
Maximum Operating Temperature +125°C
Mounting Type Semi-Flush
Maximum Pressure Setting 100bar
Minimum Operating Temperature -20°C
1 In stock for FREE next working day delivery
Price Each
£ 161.94
(exc. VAT)
£ 194.33
(inc. VAT)
Units
Per unit
1 +
£161.94
