RS PRO Pressure Sensor Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

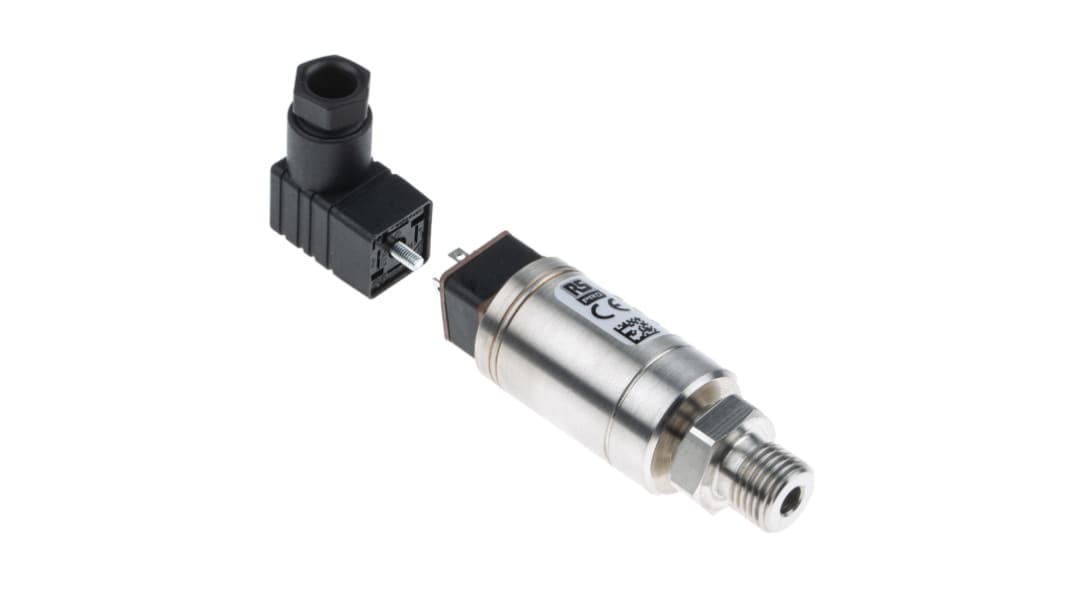

RS Pressure Transducers - IND series

The IND series is suitable for a wide range of industrial applications. It has a probe which uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing.

Piezo-resistive thick film ceramic sensor
Stainless steel body
+/- 0.25% accuracy
Different outputs including mV, Volts and mA
Microprocessor based amplifier
Operating temperature: -20 ºC to +135 ºC
Temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0bar
Maximum Pressure Reading 250bar
Accuracy ±0.25 %
Output Type Voltage
Media Measured Air, Gas, Hydraulic Fluid, Liquid, Water
Process Connection BSP 1/4
Electrical Connection DIN 43650 Connector
Analogue Output 0 → 5 V
Supply Voltage 9 → 32 V dc
Housing Material Stainless Steel
IP Rating IP65
Minimum Pressure Setting -1bar
Mounting Type Threaded
Maximum Operating Temperature +135°C
Minimum Operating Temperature -20°C
Maximum Pressure Setting 400bar
7 In stock for FREE next working day delivery
Price Each
£ 142.81
(exc. VAT)
£ 171.37
(inc. VAT)
Units
Per unit
1 +
£142.81
