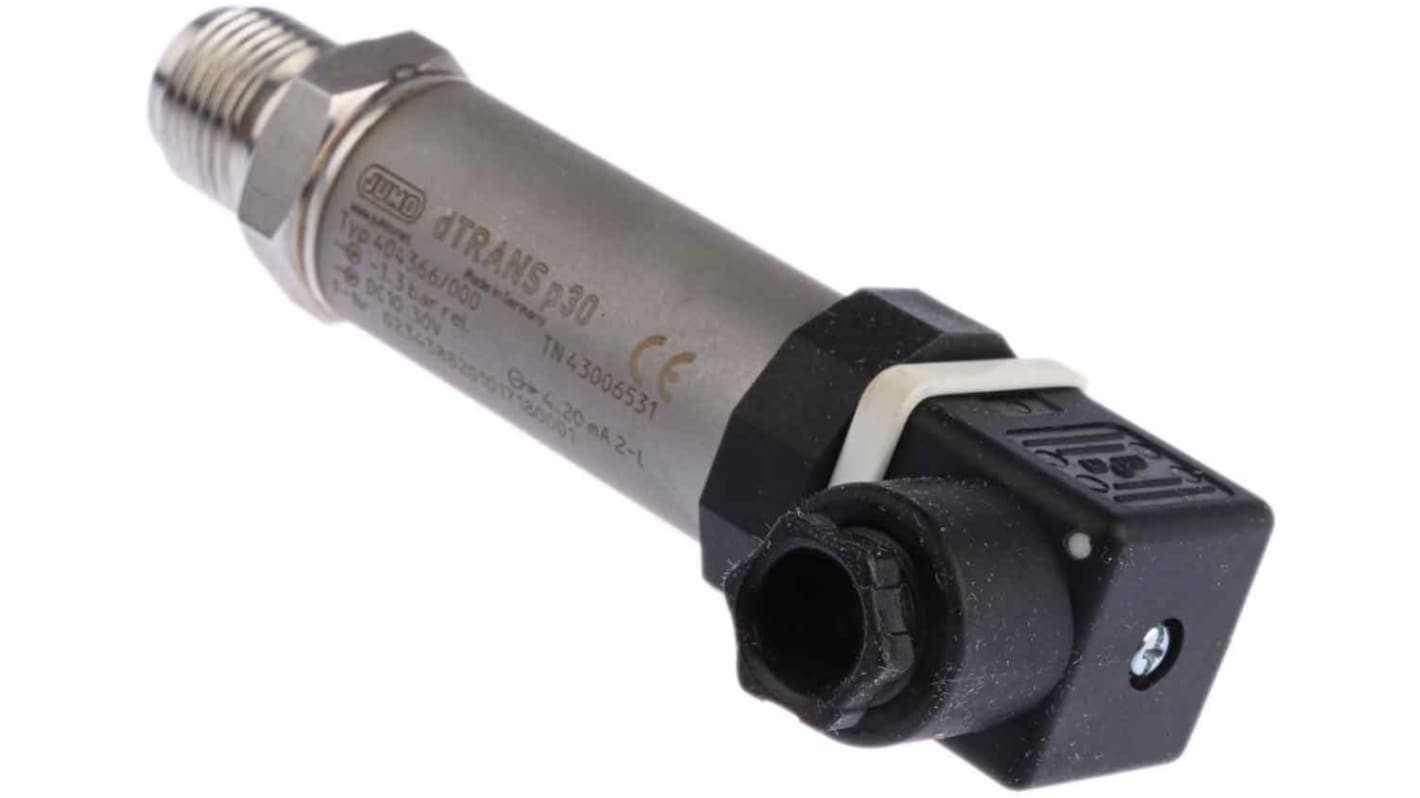

Jumo Pressure Sensor, -1bar Min, 3bar Max, Relative Reading
- RS Stock No.:
- 613-7754
- Mfr. Part No.:
- 404366/000-481-405-504-20-61/000
- Brand:
- Jumo
1 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£286.18
(exc. VAT)
£343.42
(inc. VAT)
| Units | Per unit |
| 1 + | £286.18 |
- RS Stock No.:
- 613-7754
- Mfr. Part No.:
- 404366/000-481-405-504-20-61/000
- Brand:
- Jumo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
dTRANS p30 series pressure converter
Range of pressure converters used to measure relative and absolute pressures in liquid and gas environments.
Output 4 → 20 mA.
AISI 304 stainless steel housing.
Part in contact with measured environment in AISI 316Ti / 316L stainless steel.
2-wire output with screw terminal and cable gland.
Output 4 → 20 mA.
AISI 304 stainless steel housing.
Part in contact with measured environment in AISI 316Ti / 316L stainless steel.
2-wire output with screw terminal and cable gland.
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -1bar |
| Maximum Pressure Reading | 3bar |
| Accuracy | 0.5 % |
| Media Measured | Fluid, Gas |
| Process Connection | G1/2 |
| Electrical Connection | DIN 43650 Type A |
| Analogue Output | 4 → 20 mA |
| Supply Voltage | 10 → 30 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP65 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +100°C |
