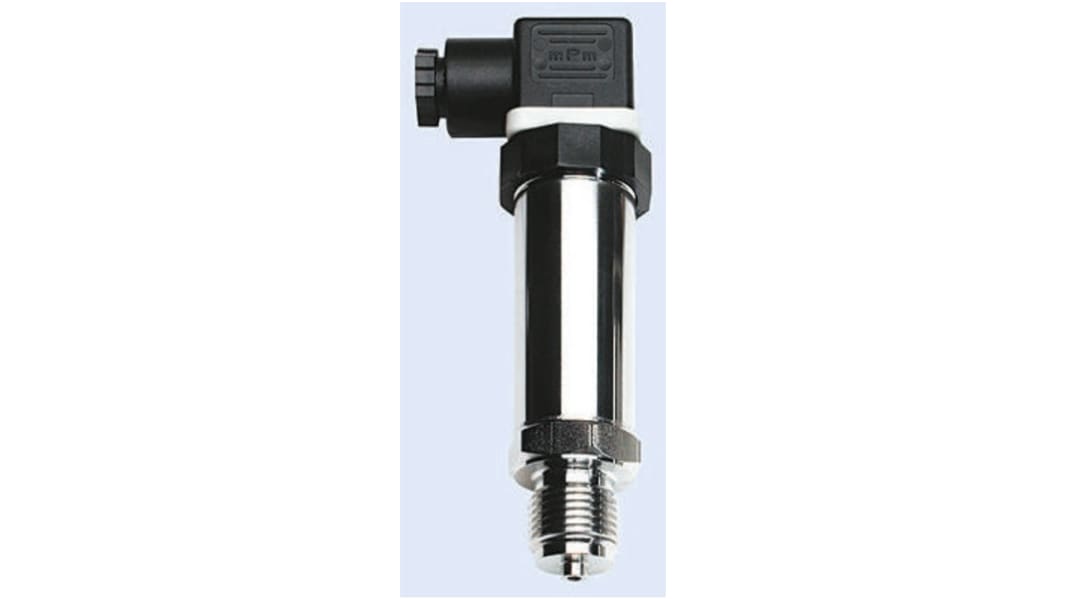

Jumo Pressure Sensor for Fluid, Gas , 0.25bar Max Pressure Reading Analogue

  • RS Stock No. 463-5593
  • Mfr. Part No. 404366/000-451-405-504-20-61/000
  • Brand Jumo
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

dTRANS p30 precision pressure transducer

Operates according to the piezo-resistive or thin-film DMS measuring principle
Pressure is converted into an electrical signal

Pressure transducers are used to detect relative and absolute pressures in liquids and gases.

Standards

DIN 16086, DIN IEC 770/5.3

Specifications
Attribute Value
Pressure Reading Type Relative
Minimum Pressure Reading 0bar
Maximum Pressure Reading 0.25bar
Accuracy 0.2 %
Output Type Analogue
Media Measured Fluid, Gas
Process Connection G1/2
Electrical Connection DIN 43650 Type A
Analogue Output 4 → 20 mA
Supply Voltage 10 → 30 V dc
Housing Material Stainless Steel
IP Rating IP65, IP67
Maximum Operating Temperature +120°C
Minimum Operating Temperature -30°C
3 In stock for delivery within 1 working days
Price Each
Was £339.93
£ 287.55
(exc. VAT)
£ 345.06
(inc. VAT)
Units
Per unit
1 +
£287.55
Not available for guaranteed pre 9am/10am delivery
