Jumo for Fluid, Gas Relative

  • RS Stock No. 457-3170
  • Mfr. Part No. 401001/000-460-405-502-20-601-61/000
  • Brand Jumo
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

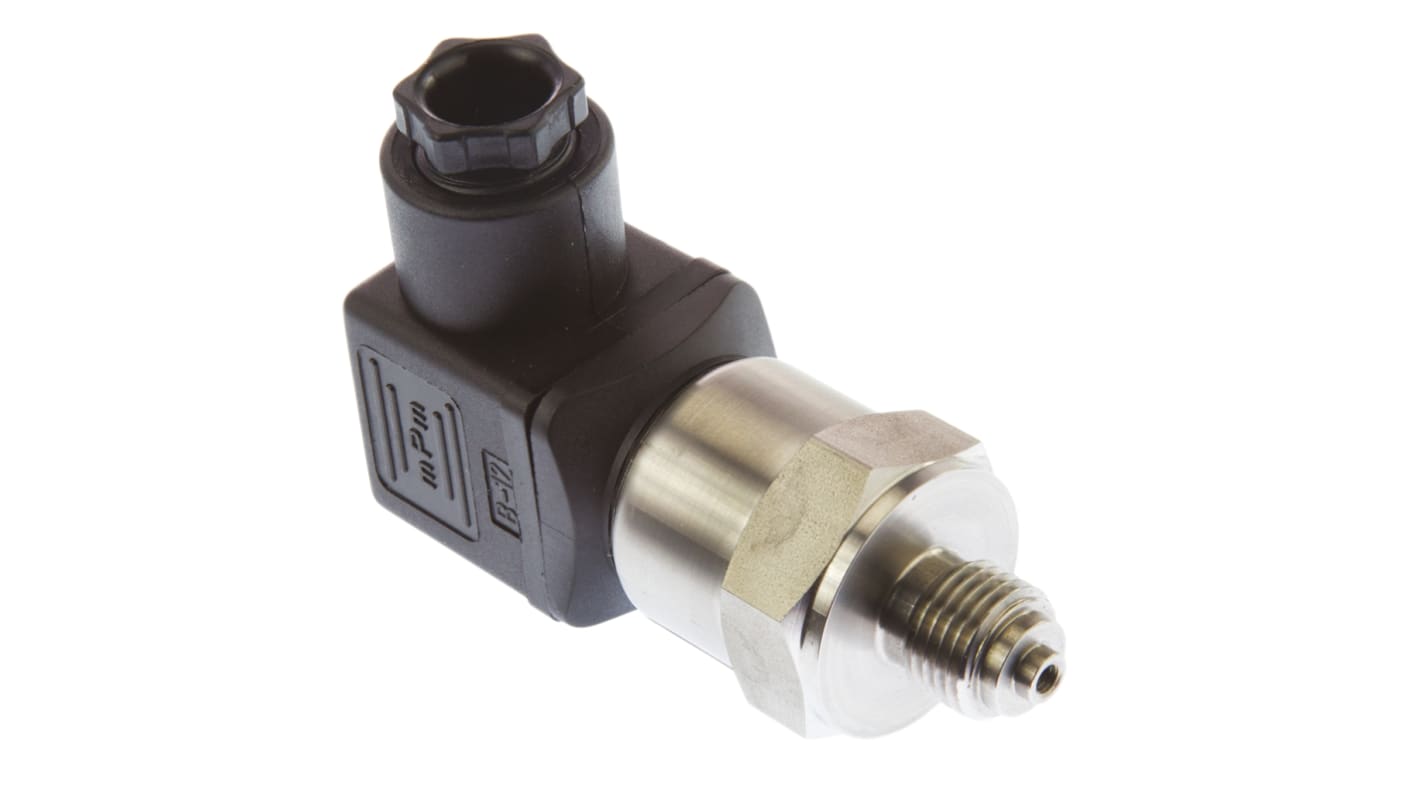

401001 series pressure converters

Range of piezo-resistive pressure converters for measuring relative pressures in gaseous and liquid environments.
Output 4 → 20 mA.
AISI 303 stainless steel housing.
The part in contact with the environment to be measured is made from AISI 303 stainless steel.
2 wire output via cable gland and screw terminal or M12 connector (43008 series)
Linear characteristics.

Specifications
Attribute Value
Pressure Reading Type Relative
Minimum Pressure Reading 0bar
Maximum Pressure Reading 16bar
Accuracy 0.5 %
Media Measured Fluid, Gas
Process Connection G1/4
Analogue Output 4 20 mA
Electrical Connection DIN 43650 Connector
Response Time 3 ms
Supply Voltage 10 30 V dc
Housing Material Stainless Steel
IP Rating IP65, IP67
Minimum Operating Temperature -20°C
Maximum Operating Temperature +85°C
1 in stock for FREE next working day delivery
6 available from Europe for delivery within 1 working day(s)
Price Each
£ 107.31
(exc. VAT)
£ 128.77
(inc. VAT)
Units
Per unit
1 +
£107.31
