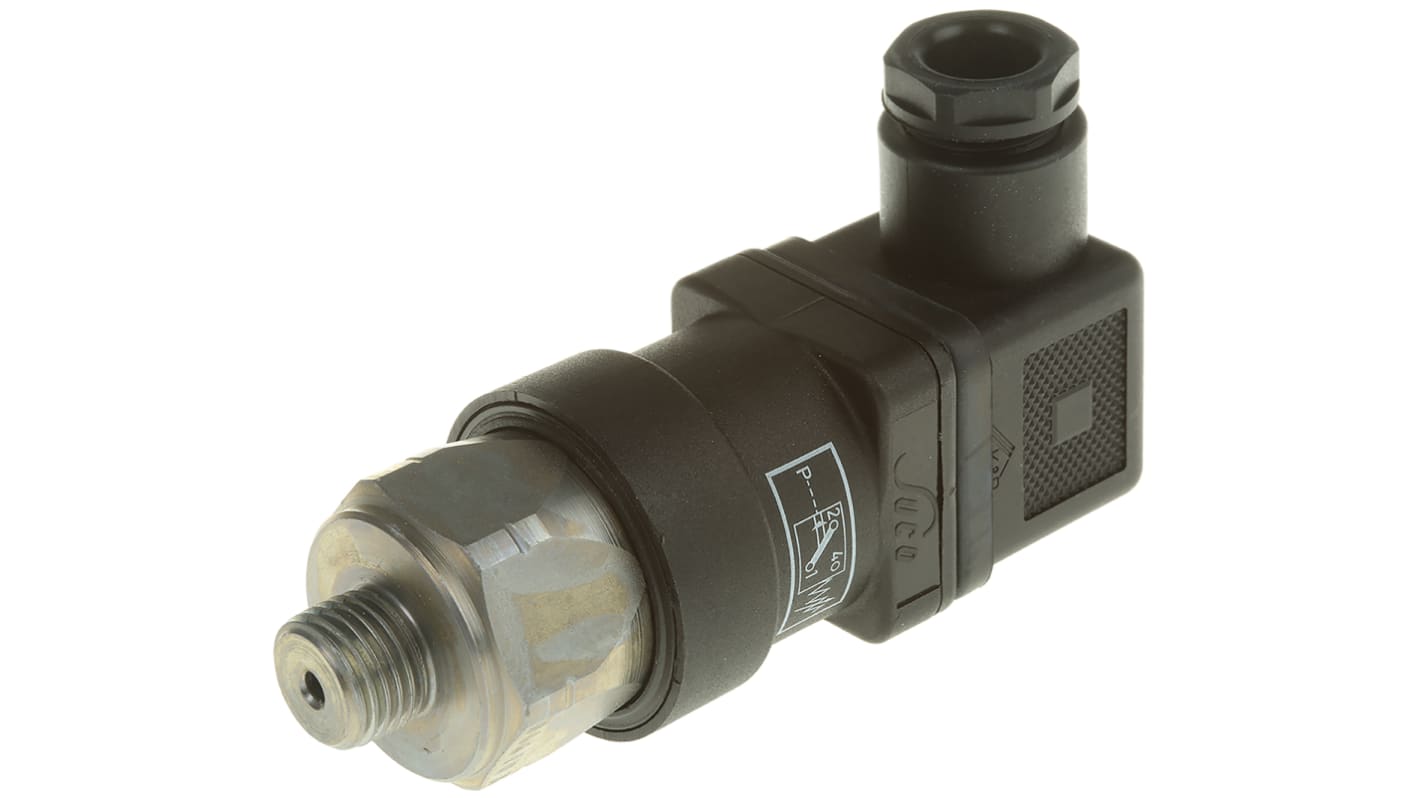

Suco 0184 Series Pressure Sensor, 10bar Min, 100bar Max, Relay Output
- RS Stock No.:
- 398-7001
- Mfr. Part No.:
- 0184461031012
- Brand:
- Suco
38 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£59.48
(exc. VAT)
£71.38
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £59.48 |
| 5 + | £57.66 |
- RS Stock No.:
- 398-7001
- Mfr. Part No.:
- 0184461031012
- Brand:
- Suco
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
G1/4 Industrial Pressure Switch
Suco high quality, rugged, industrial pressure switch, suitable for a variety of media including compressed air, hydraulic oil, engine oil, heating oil, turpentine, etc. The pressure switches are CE marked in accordance with the requirements of the Low Voltage Directive, 73/23 EEC. The pressure switches may be connected using DIN style electrical connectors (maximum current: 4A [C/O]). Suco industrial pressure switches are rated to IP65.
Note
Statistical overpressure safety. The dynamic rating of the overpressure is smaller than 30 to 50%. The overpressure safety corresponds to the pneumatic/hydraulic part of the pressure switch.
Warning
Compressed air, while generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.
Pressure Switches
Warning
Compressed air whilst generally considered a safe source of energy must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.
Specifications
Attribute | Value |
|---|---|
| Minimum Pressure Reading | 10bar |
| Maximum Pressure Reading | 100bar |
| Output Type | Relay |
| Media Measured | Air, Heating Oil, Hydraulic Fluid, Turpentine |
| Process Connection | G1/4 |
| Electrical Connection | DIN 43650 Type A |
| Series | 0184 |
| Maximum Current | 4 A |
| Supply Voltage | 250 V |
| Housing Material | Zinc Plated Steel |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +100°C |
| IP Rating | IP65 |
