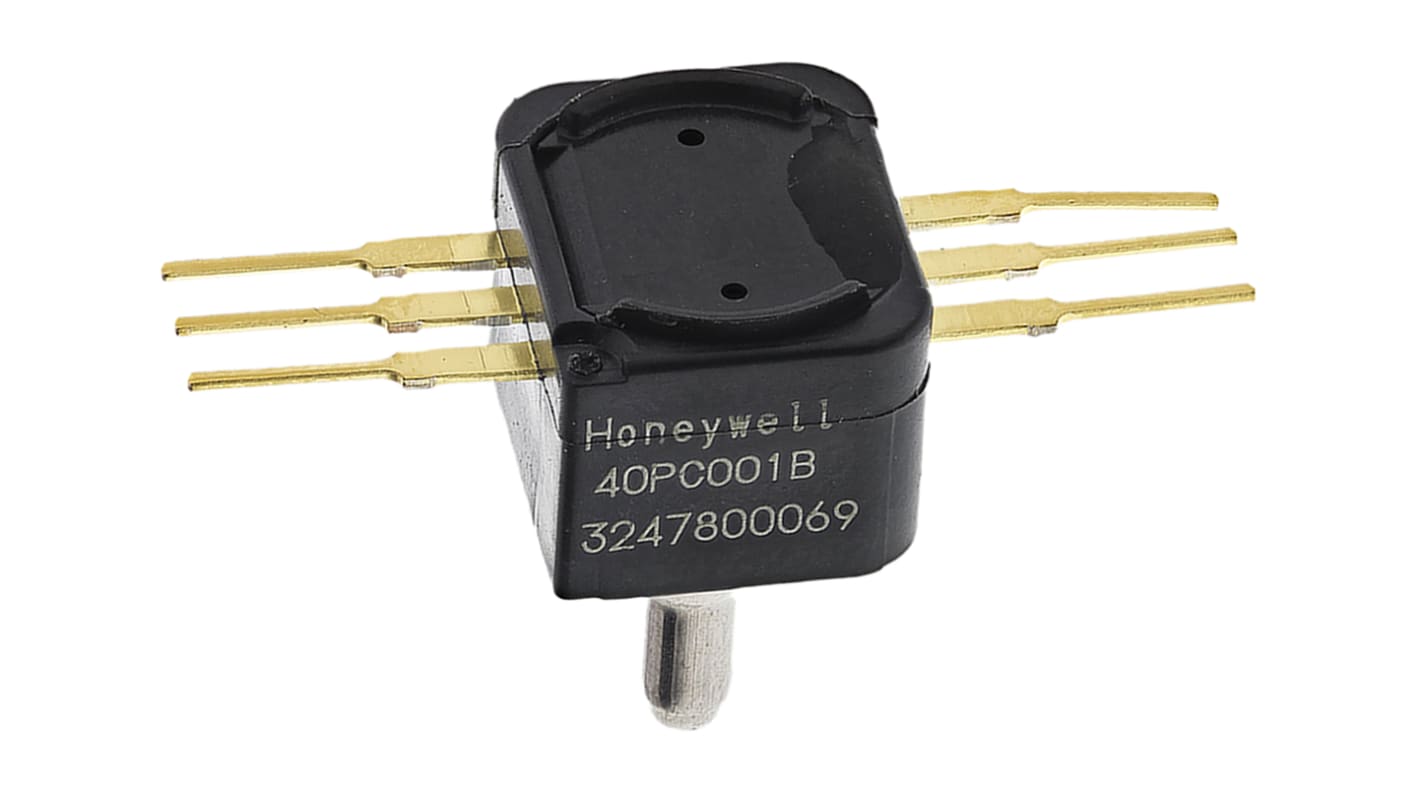

Honeywell Gauge for Gas Pressure Sensor, 50mm Hg Max Pressure Reading , 4.75 → 5.25 V dc

  • RS Stock No. 293-8323
  • Mfr. Part No. 40PC001B1A
  • Brand Honeywell
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Honeywell 40PC Series Amplified Pressure Sensors

Amplified pressure gauge sensor
Small 6-pin DIL package requires minimal PCB space
Fully signal conditioned monolithic design
Silicon piezo-resistive measurement technology
Port designed for O-ring interface
Excellent media compatibility
Accuracy of 0.2%
Media: Air, dry gases
Operating temp. -45°C → +125°C

Note

Not suitable for direct connection to tubing or pipes

Pressure Sensors, Honeywell

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading -50mm Hg
Maximum Pressure Reading 50mm Hg
Accuracy ±0.4 %
Output Type Amplified
Media Measured Gas
Analogue Output 0.5 → 4.5 V
Electrical Connection PCB
Response Time 1 ms
Maximum Current 10 mA
Supply Voltage 4.75 → 5.25 V dc
Maximum Operating Temperature +125°C
Minimum Operating Temperature -45°C
24 In stock for FREE next working day delivery
Price Each
£ 53.50
(exc. VAT)
£ 64.20
(inc. VAT)
Units
Per unit
1 +
£53.50
