Baumer Hygienic Pressure Sensor, -1bar Min, 0bar Max, Current Output, Relative Reading
- RS Stock No.:
- 210-0741
- Mfr. Part No.:
- PP20H-2.3B59R.D115.542020.000
- Brand:
- Baumer
Available to back order for despatch 17/06/2024
Added
Price Each
£420.00
(exc. VAT)
£504.00
(inc. VAT)
| Units | Per unit |
| 1 + | £420.00 |
- RS Stock No.:
- 210-0741
- Mfr. Part No.:
- PP20H-2.3B59R.D115.542020.000
- Brand:
- Baumer
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

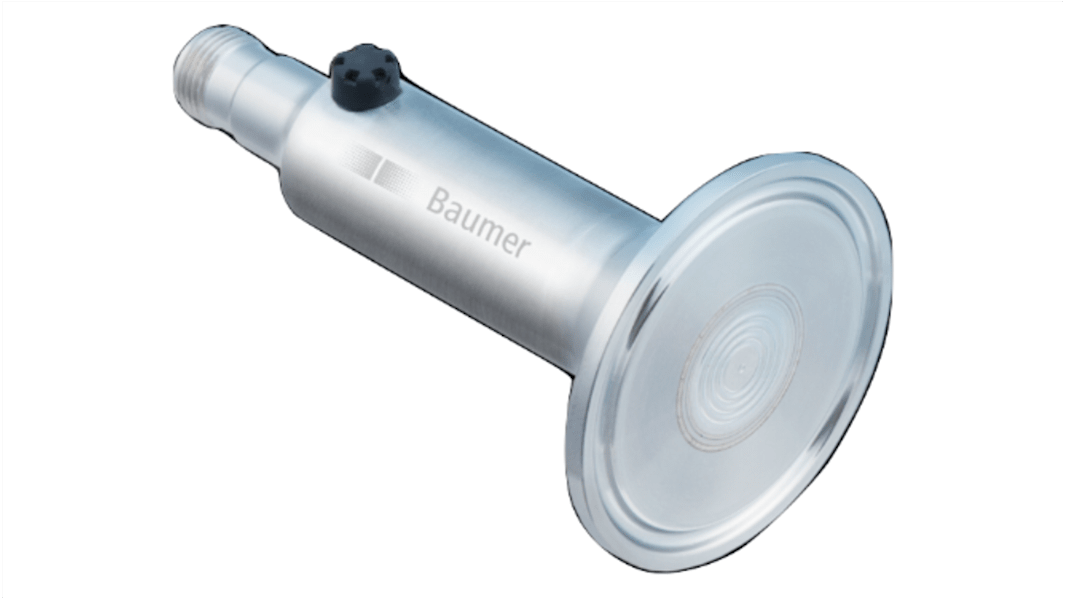

The Baumer PP20H-D1 IO-link is fully welded pressure sensor with hygienic connection. It has ±0.5 % of accuracy and also connector M12-A with 5-pin witch used stainless steel material IO-Link output. It used -1 to 0 bar measuring range.
Operating temperature range -20 to 50 °C
Degree of protection IP 67
Degree of protection IP 67
Current Output 4…20mA
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -1bar |
| Maximum Pressure Reading | 0bar |
| Accuracy | ±0.5 % |
| Output Type | Current |
| Media Measured | Fluid |
| Process Connection | Tri-Clamp DN40 |
| Supply Voltage | 30 V |
| Interface | IO-Link |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +125°C |
| IP Rating | IP67 |
| Minimum Operating Temperature | -20°C |
- RS Stock No.:
- 210-0741
- Mfr. Part No.:
- PP20H-2.3B59R.D115.542020.000
- Brand:
- Baumer
