Baumer Hygienic Pressure Sensor, 0bar Min, 4bar Max, Current Output, Relative Reading
- RS Stock No.:
- 210-0733
- Mfr. Part No.:
- PP20H-2.3B19R.A114.542020.000
- Brand:
- Baumer
Available to back order for despatch 24/06/2024
Added
Price Each
£399.50
(exc. VAT)
£479.40
(inc. VAT)
| Units | Per unit |
| 1 + | £399.50 |
- RS Stock No.:
- 210-0733
- Mfr. Part No.:
- PP20H-2.3B19R.A114.542020.000
- Brand:
- Baumer
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

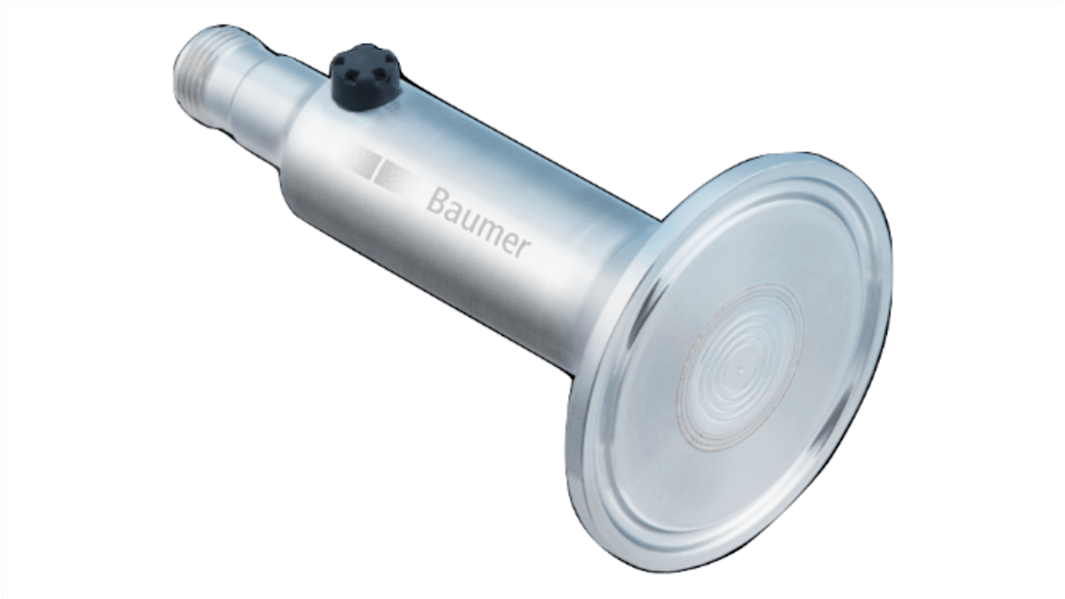

The Baumer PP20H-D1 IO-link is fully welded pressure sensor with hygienic connection. It has ±0.5 % of accuracy and also connector M12-A with 4-pin which used stainless steel material. It used 0 to 4 bar measuring range and protected against reverse polarity.
Operating temperature range -20 to 85 °C
Degree of protection IP 67
Degree of protection IP 67
Current Output 4…20mA
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 4bar |
| Accuracy | ±0.5 % |
| Output Type | Current |
| Media Measured | Fluid |
| Process Connection | Tri-Clamp DN40 |
| Supply Voltage | 30 V |
| IP Rating | IP67 |
| Minimum Operating Temperature | -20°C |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +125°C |
