RS PRO Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

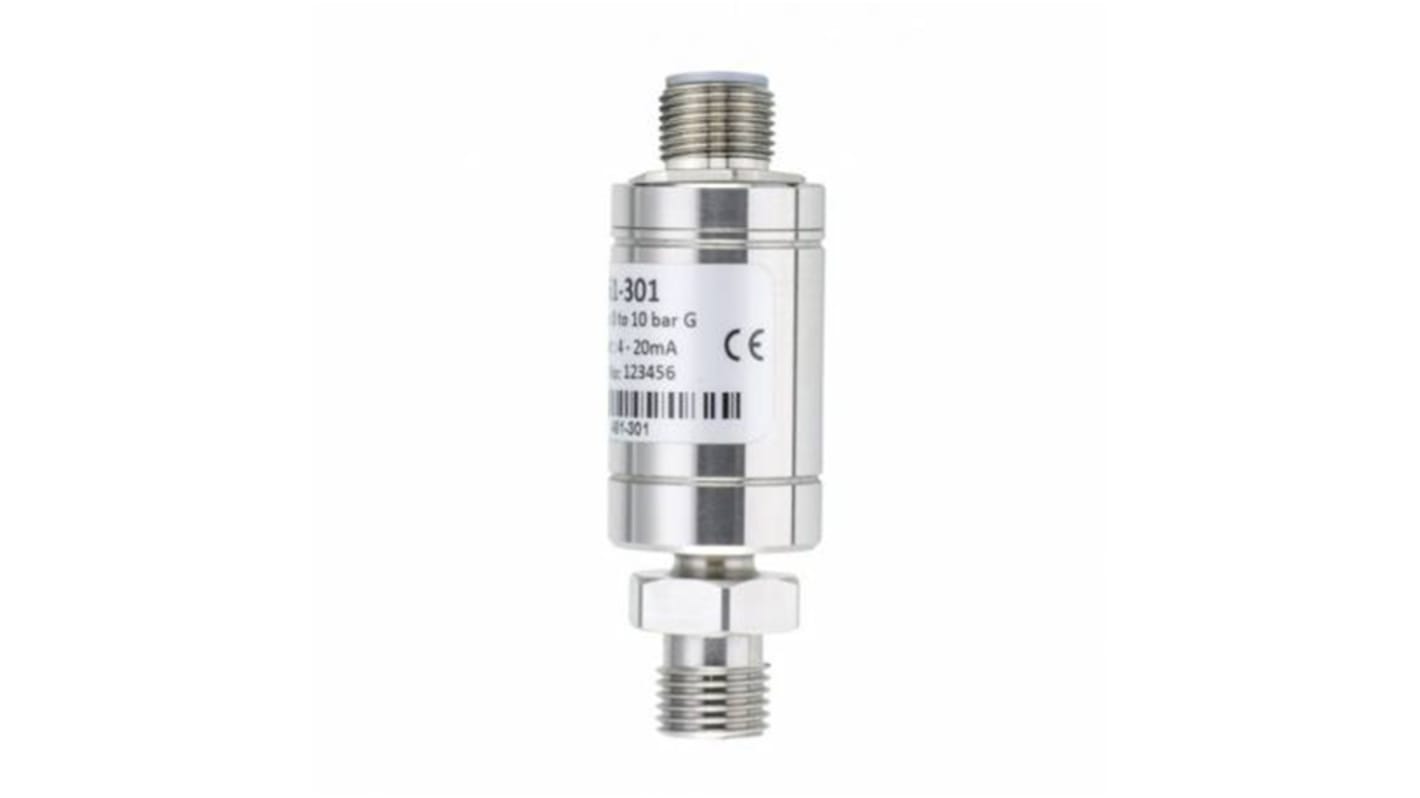

The IPSU-M12 series is suitable for use in a wide range of industrial applications. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving stable electronics, especially for industrial applications... Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data*. Mating cable and plug assemblies are available.

Piezo-resistive thick film ceramic sensorStainless steel bodyAccuracy <±0.25% FS BFSL0-5V or 4-20mA outputsPressure ranges from -1 to 400 barM12 4-pin connector

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0psi
Maximum Pressure Reading 75psi
Accuracy ±0.25 %
Output Type Analogue
Process Connection NPT 1/4
Electrical Connection M12 Connector
Analogue Output 0 5 V
Supply Voltage 9 32 V dc
Housing Material Stainless Steel
IP Rating IP67
Maximum Operating Temperature +80°C
Mounting Type Threaded
Minimum Operating Temperature -20°C
Series IPSU
1 In stock for FREE next working day delivery
Price Each
£ 110.87
(exc. VAT)
£ 133.04
(inc. VAT)
Units
Per unit
1 +
£110.87
