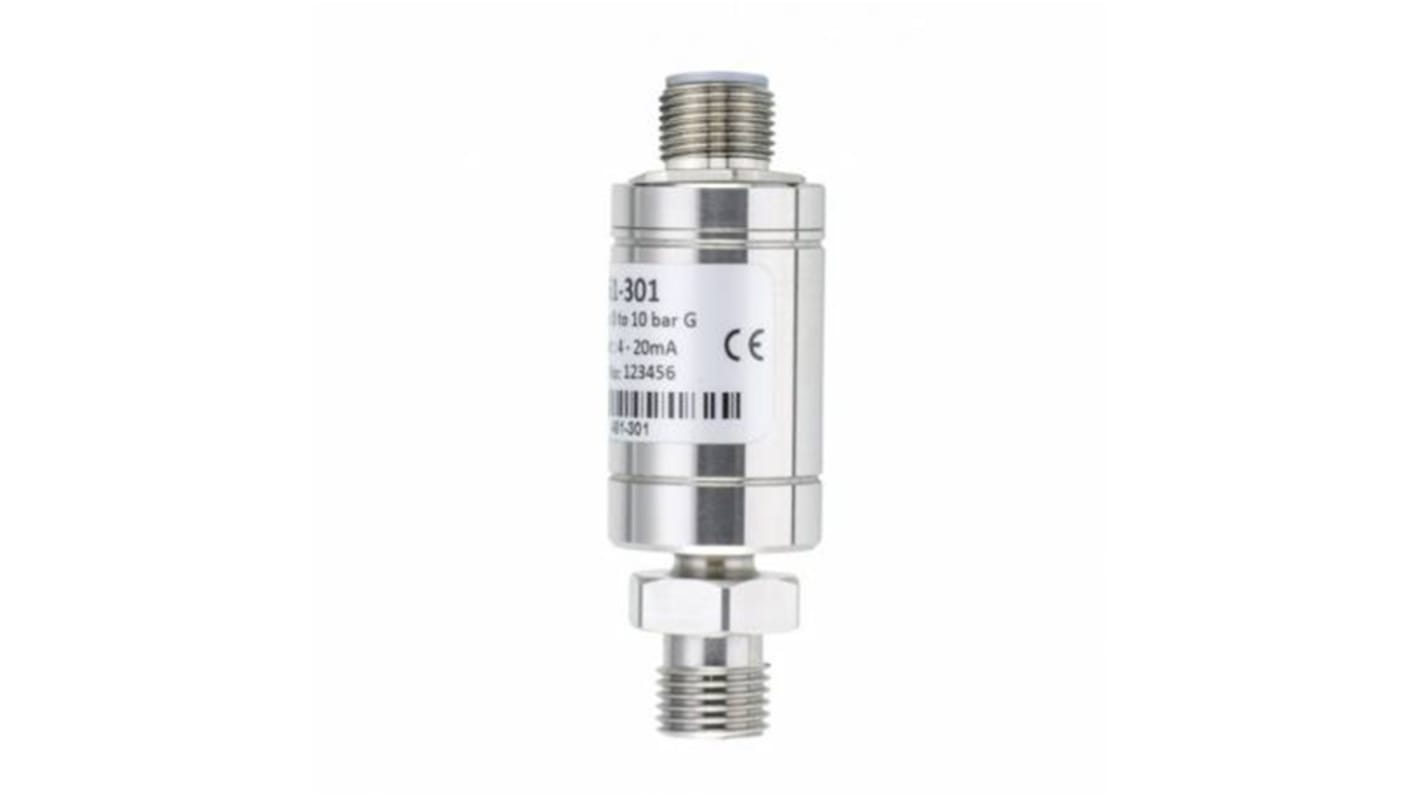

RS PRO Pressure Sensor Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

The IPSU-M12 series is suitable for use in a wide range of industrial applications. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving stable electronics, especially for industrial applications... Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data*. Mating cable and plug assemblies are available.

Piezo-resistive thick film ceramic sensor
Stainless steel body
Accuracy <±0.25% FS BFSL
0-5V or 4-20mA outputs
Pressure ranges from -1 to 400 bar
M12 4-pin connector

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading -14.5psi
Maximum Pressure Reading 350psi
Accuracy ±0.25 %
Output Type Analogue
Process Connection NPT 1/4
Electrical Connection M12 Connector
Analogue Output 4 → 20 mA
Maximum Current 20 mA
Supply Voltage 9 → 32 V dc
Housing Material Stainless Steel
IP Rating IP67
Maximum Operating Temperature +80°C
Mounting Type Threaded
Minimum Operating Temperature -20°C
Series IPSU
Available to back order for despatch 05/12/2019
Price Each
£ 120.86
(exc. VAT)
£ 145.03
(inc. VAT)
Units
Per unit
1 +
£120.86
