RS PRO Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

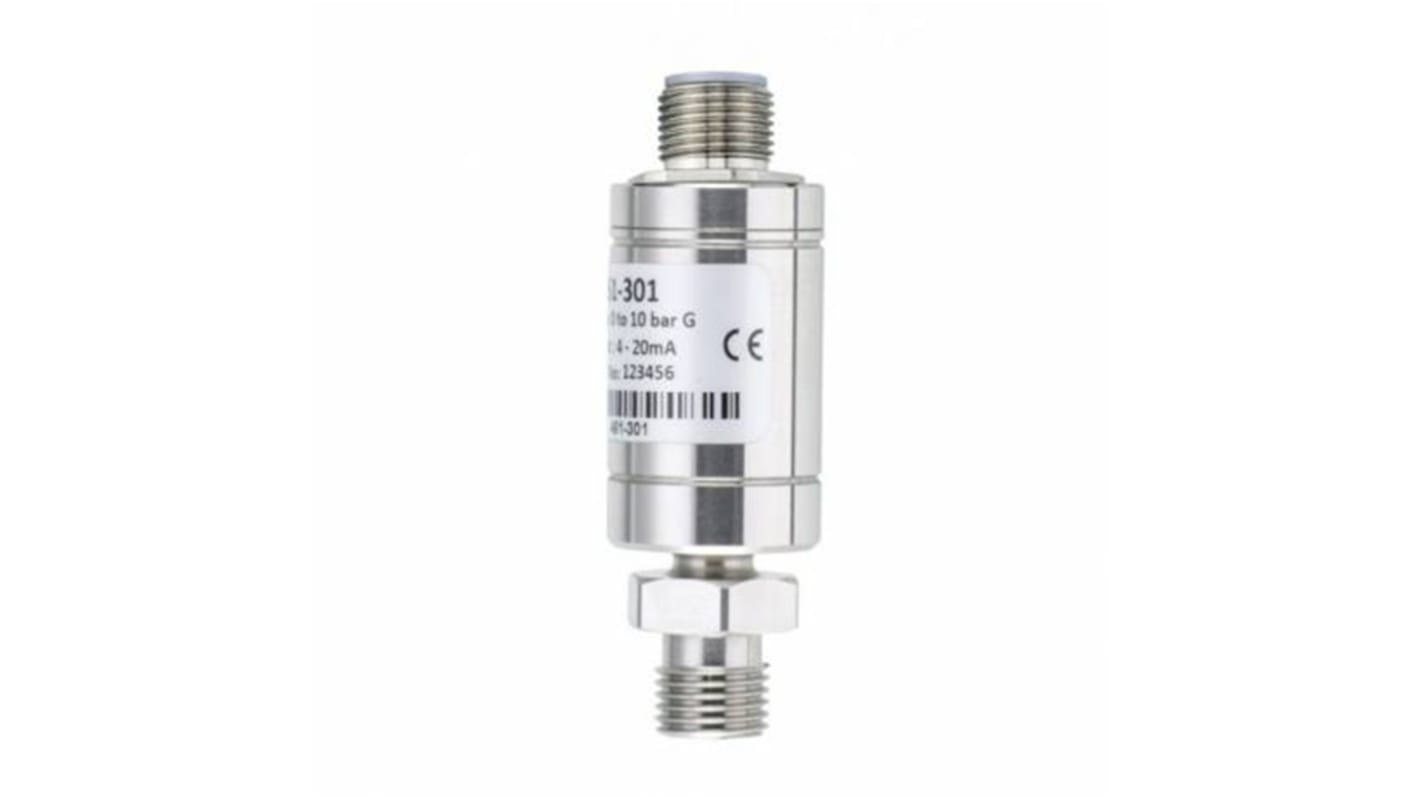

The IPSL-M12 is suitable for use in a wide range of applications. The probe uses a Piezo-resistive silicon sensor, giving excellent media compatibility within an oil filled 316L stainless steel housing The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving stable electronics, especially in high vibration/shock applications. Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data*.

Piezo-resistive sensor Stainless steel body & diaphragm Accuracy ±0.25% FS BFSL 0-5 Volts or 4-20 mA.outputs Pressure ranges from 50 mbar to 1000 mbar M12 4-Pin connector

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0bar
Maximum Pressure Reading 750mbar
Accuracy ±0.25 %
Output Type Analogue
Process Connection BSP 1/4
Electrical Connection M12 Connector
Analogue Output 4 <arrow/> 20 mA
Maximum Current 20 mA
Supply Voltage 9 <arrow/> 32 V dc
Housing Material Stainless Steel
Minimum Operating Temperature -20°C
Series IPSL
Maximum Operating Temperature +80°C
Mounting Type Threaded
2 In stock for FREE next working day delivery
Price Each
£ 160.66
(exc. VAT)
£ 192.79
(inc. VAT)
Units
Per unit
1 +
£160.66
