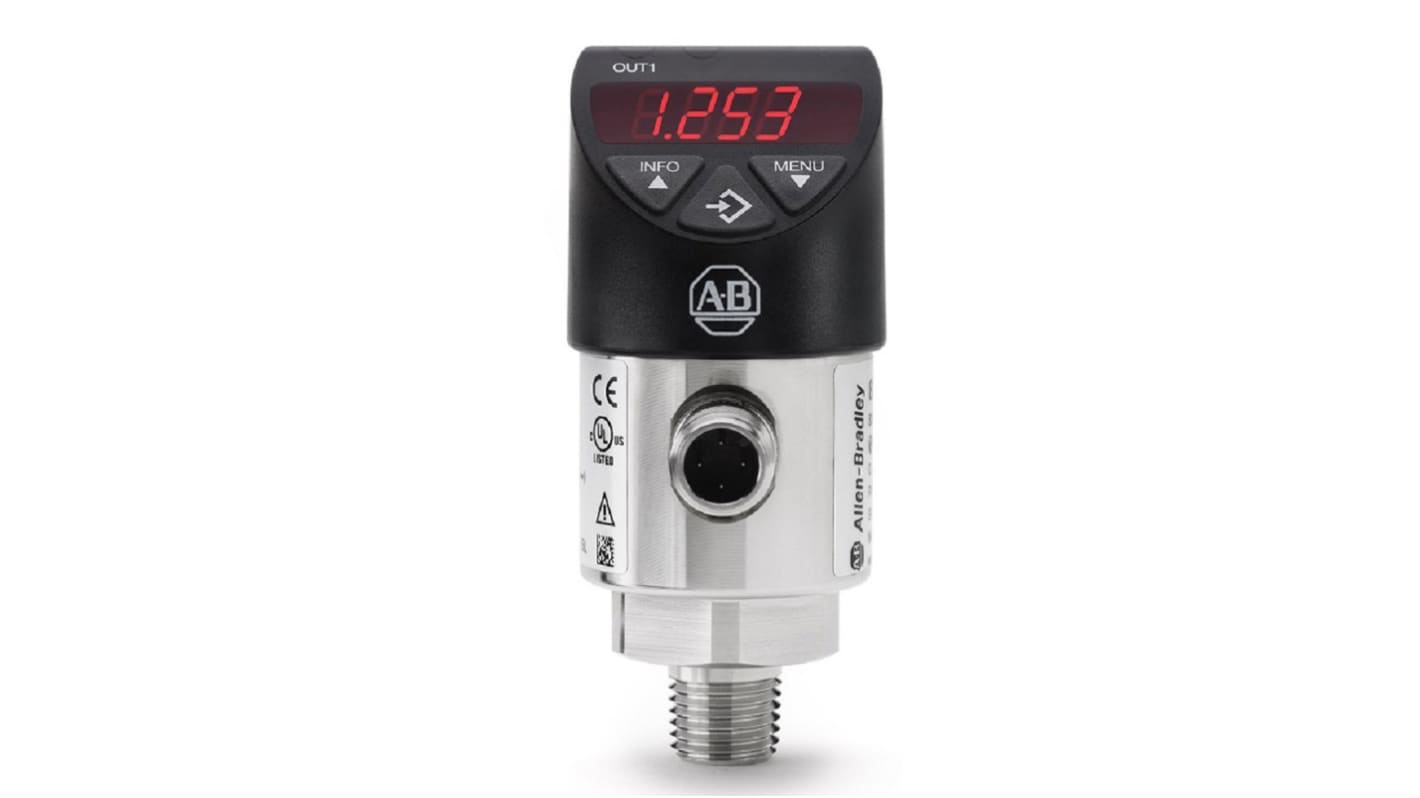

Allen Bradley 836P Series Pressure Sensor, 0bar Min, 399.89bar Max, 4 → 20 mA, Analogue, PNP-NO/NC Output,
- RS Stock No.:
- 136-5973
- Mfr. Part No.:
- 836P-D2SFGC58PA-D4
- Brand:
- Allen Bradley
Available to back order for despatch 05/07/2024
Added
Price Each
£375.37
(exc. VAT)
£450.44
(inc. VAT)
Units | Per unit |
1 + | £375.37 |
- RS Stock No.:
- 136-5973
- Mfr. Part No.:
- 836P-D2SFGC58PA-D4
- Brand:
- Allen Bradley
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.
With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.
Features and Benefits
Corrosion resistant 316L stainless steel sensing element
Compact form factor
LED display
IP67 rated
Rotatable housing and head
Available in various process connections
IO-Link communication protocol
Allen Bradley Pressure Sensor, LED Display, 15 to 35V DC Supply Voltage - 836P-D2SFGC58PA-D4
Measure the level of applied pressure in your industrial system using this pressure sensor from Rockwell Automation's Allen Bradley range. It has a broad measuring range between 0 and 399.89 bar, so it can withstand high-pressure environments. For versatility, you can use this device with liquid, gas and steam media. Thanks to its flexible structure, the housing rotates up to 320° and the head rotates up to 330°, so you can adjust it to fit into your setup. The integrated LED display lets you easily monitor changes in the pressure readings.
Features & Benefits
Built-in IO-Link interface for convenient integration with your control system
Supply voltage range between 15 and 35V DC for versatile operation
Service life of 100 million cycles for long-lasting use
TPE-E buttons offer thermal resistance for durability
IP67 rating indicates it's dust-tight and protected against water immersion between 15cm and 1m deep
Supply voltage range between 15 and 35V DC for versatile operation
Service life of 100 million cycles for long-lasting use
TPE-E buttons offer thermal resistance for durability
IP67 rating indicates it's dust-tight and protected against water immersion between 15cm and 1m deep
Standards and Certifications
EN 61326
RoHs
cULus
CE
EMC
RoHs
cULus
CE
EMC
What protective features does this sensor come with?
This pressure sensor comes with built-in protection against short circuits and reverse polarity, which helps prevent damage to the unit in the event of an electrical fault.
Specifications
Attribute | Value |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 399.89bar |
Accuracy | ±1 % |
Output Type | 4 → 20 mA, Analogue, PNP-NO/NC |
Media Measured | Gas, Liquid, Steam |
Process Connection | UNF 7/16 |
Electrical Connection | 4-Pin M12 DC Micro Connector |
Analogue Output | 4 → 20 mA |
Communication Protocol | IO-LINK |
Maximum Current | 450 mA |
Series | 836P |
Supply Voltage | 15 → 35 V dc |
Interface | IO-Link |
Housing Material | Stainless Steel |
IP Rating | IP65, IP67 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
Mounting Type | Vertical Mount |
- RS Stock No.:
- 136-5973
- Mfr. Part No.:
- 836P-D2SFGC58PA-D4
- Brand:
- Allen Bradley
