Gems Sensors for Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil Gauge

  • RS Stock No. 136-5059
  • Mfr. Part No. 3100S0160S01E000
  • Brand Gems Sensors
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

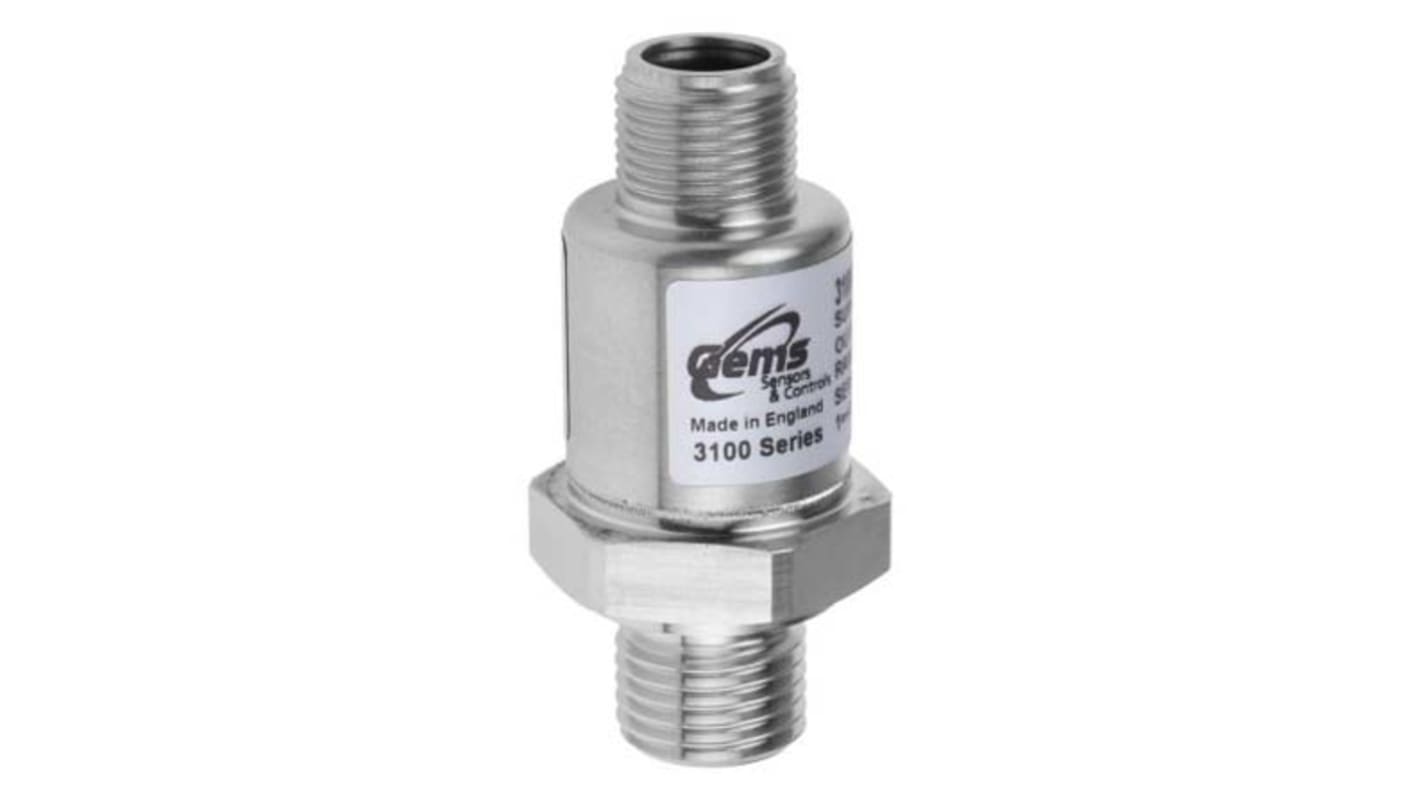

Pressure Transmitters - 3100 Series M12 Connections

Gems Sensors 3100 series pressure transmitters offer consistent high levels of performance, reliability and stability in a wide range of compact package sizes. They feature all stainless steel wetted parts and a wide choice of electrical outputs to suit most applications. At the heart of the 3100 series is a sputter element that also provides exceptional temperature specifications.

Features and Benefits

High proof pressures Broad choice of outputs
Operating temperature: -40°C to +120°C
Ideal for installations where space is at a premium
Stainless steel wetted parts
RoHS compliant
IP67 Rated
0.25% FS accuracy
M12 connections

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0bar
Maximum Pressure Reading 160bar
Accuracy 0.25 %
Output Type Analogue
Media Measured Air Fluid, Hydraulic Fluid, Hydraulic Oil, Oil
Process Connection G1/4
Analogue Output 0 10 V
Electrical Connection 4-Pin M12 x 1 Connector
Response Time 1 ms
Maximum Current 2 (Sink & Source) mA
Supply Voltage 8 30 V dc
Housing Material 17-4 PH Stainless Steel (Wetted Part)
IP Rating IP65, IP67
Series 3100
Mounting Type Threaded
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Available to back order for despatch 13/02/2020
Price Each
£ 92.50
(exc. VAT)
£ 111.00
(inc. VAT)
Units
Per unit
1 +
£92.50
