RS PRO Wireless Pressure Transducer Gauge
- RS Stock No. 123-5243
- Brand RS PRO

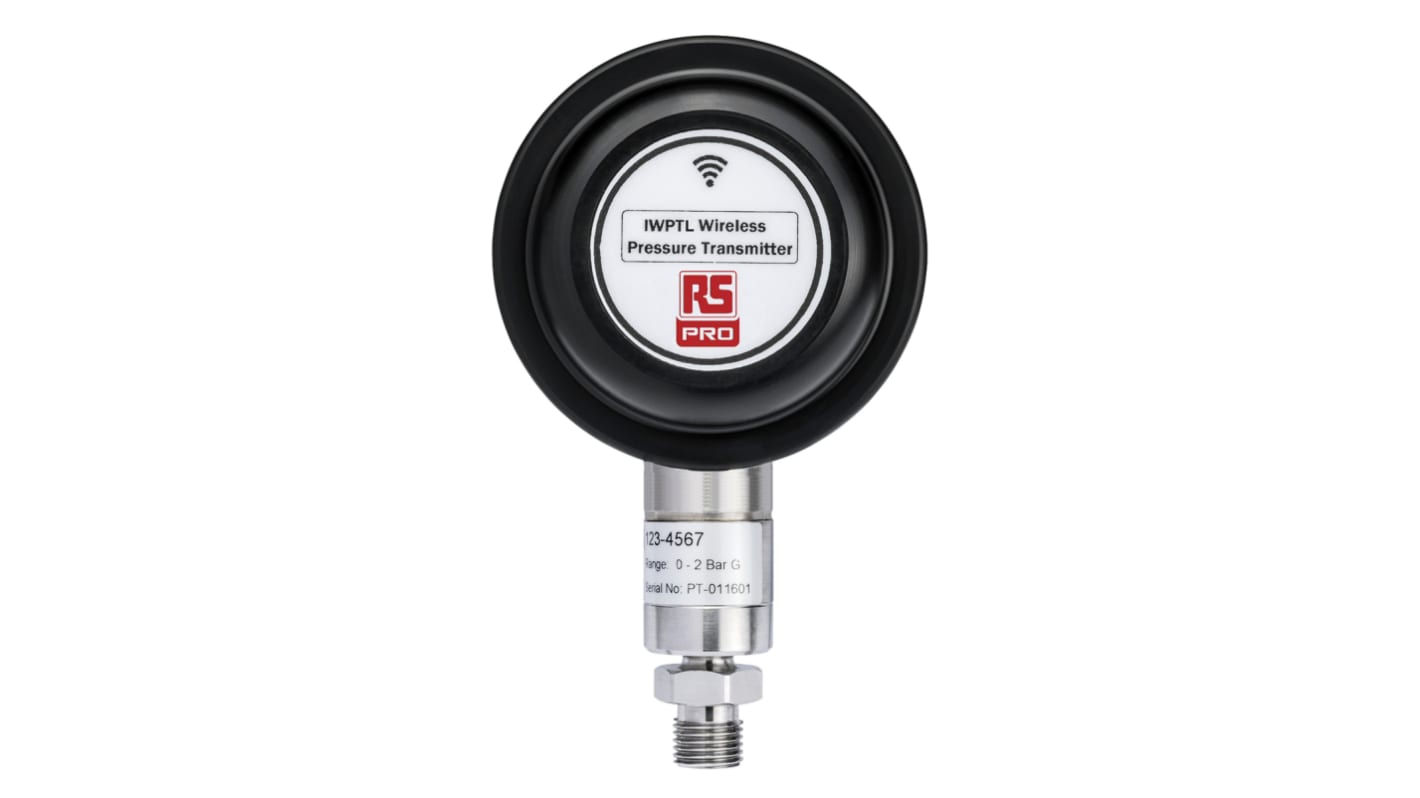

RS Pro IWPTL Series Wireless Pressure Transducer
RS Pro IWPTL series wireless pressure transducer is an effective replacement to a traditionally wired pressure transducer in inaccessible and expensive installation environments. It is easily paired to the compatible RS Pro IWR family of wireless receivers, thus offering a “plug and play” solution to your pressure measurement applications.
The instrument uses a piezoresistive ceramic sensor mounted within a stainless steel housing giving excellent media compatibility for the harshest of applications.
Pressure ranges from 0-50mbar to 0-1000mbar gauge
Up to 750 m line-of-site range (depending on receiver)
Piezoresistive thick film ceramic sensor with stainless steel body
Five-year battery life at 10 second transmission update rate
Simple DIL switch pairing with receiver
User-selectable transmission update rates
User-selectable 1 to 5 V or 4 to 20 mA receiver outputs
Receiver clean contacts provide process alarm functions
Note
Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate.
| Attribute | Value |
|---|---|
| Pressure Reading Type | Gauge |
| Minimum Pressure Reading | 0mbar |
| Maximum Pressure Reading | 50mbar |
| Accuracy | ±0.25 % |
| Output Type | Analogue |
| Media Measured | Air, Hydraulic Fluid, Liquid, Non-Aggressive Gas, Oil, Water |
| Process Connection | G1/4 |
| Analogue Output | 0 → 5 V, 4 → 20 mA |
| Electrical Connection | Battery |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +80°C |
| Series | IWPT |
| Mounting Type | Threaded |
