Honeywell Pressure Sensor Absolute

  • RS Stock No. 111-5920
  • Mfr. Part No. PX3AN2BS100PAAAX
  • Brand Honeywell
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

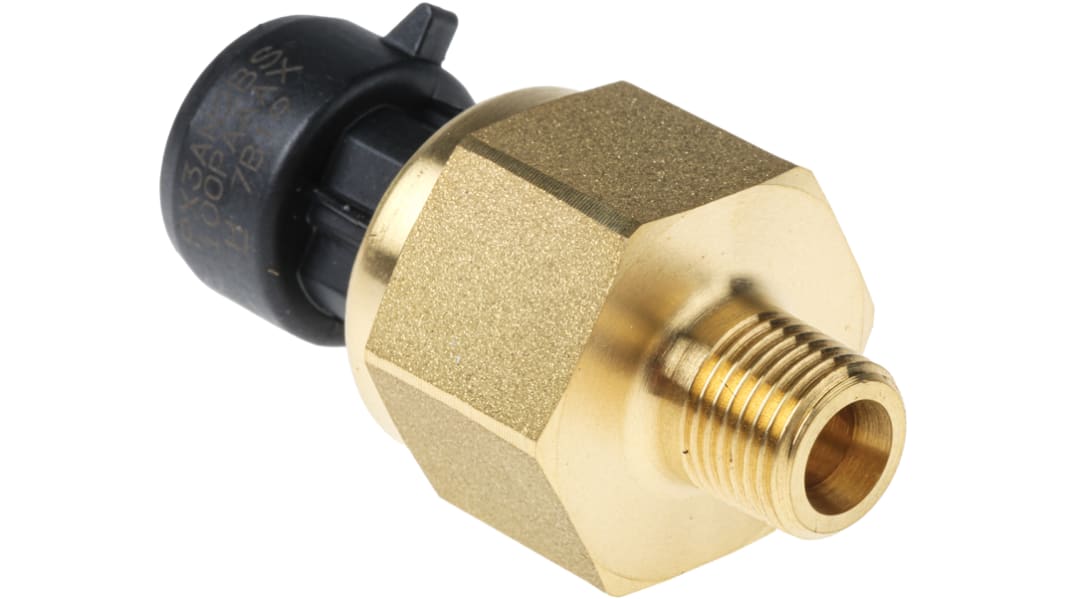

Honeywell PX3 Series Pressure Transducer

Honeywell PX3 Series heavy duty pressure transducer is a range of highly configurable pressure sensors that use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a brass housing. The PX3 Series is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity using the on-board ASIC.

Pressure range: 1 bar to 46 bar (absolute and sealed gage)
Fully calibrated and temperature compensated
Total Error Band: ±1.0 %FSS from -20 °C to 85 °C [-4 °F to 185 °F]
Insulation resistance: >100 MOhm, 1500 V dc
Dielectric strength: AC1500V, 1 min. or AC1800, 1 s
Current consumption: 3.5 mA max.
Ingress protection up to IP67
Response time: <2 ms
RoHS, REACH, and CE compliant

Specifications
Attribute Value
Pressure Reading Type Absolute
Minimum Pressure Reading 0psi
Maximum Pressure Reading 100psi
Accuracy ±0.25 %
Output Type Analogue
Media Measured Air, Brake Fluid, Hydraulic Fluid, Oil, Refrigeration Fluid
Process Connection NPT 1/8
Analogue Output 0.5 → 4.5 V
Electrical Connection Metri-Pack 150
Response Time <2 ms
Maximum Current 3 mA
Supply Voltage 4.75 → 5.25 V dc
Housing Material Brass
IP Rating IP67
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Mounting Type Threaded
60 In stock for FREE next working day delivery
Price Each
£ 48.09
(exc. VAT)
£ 57.71
(inc. VAT)
Units
Per unit
1 +
£48.09
