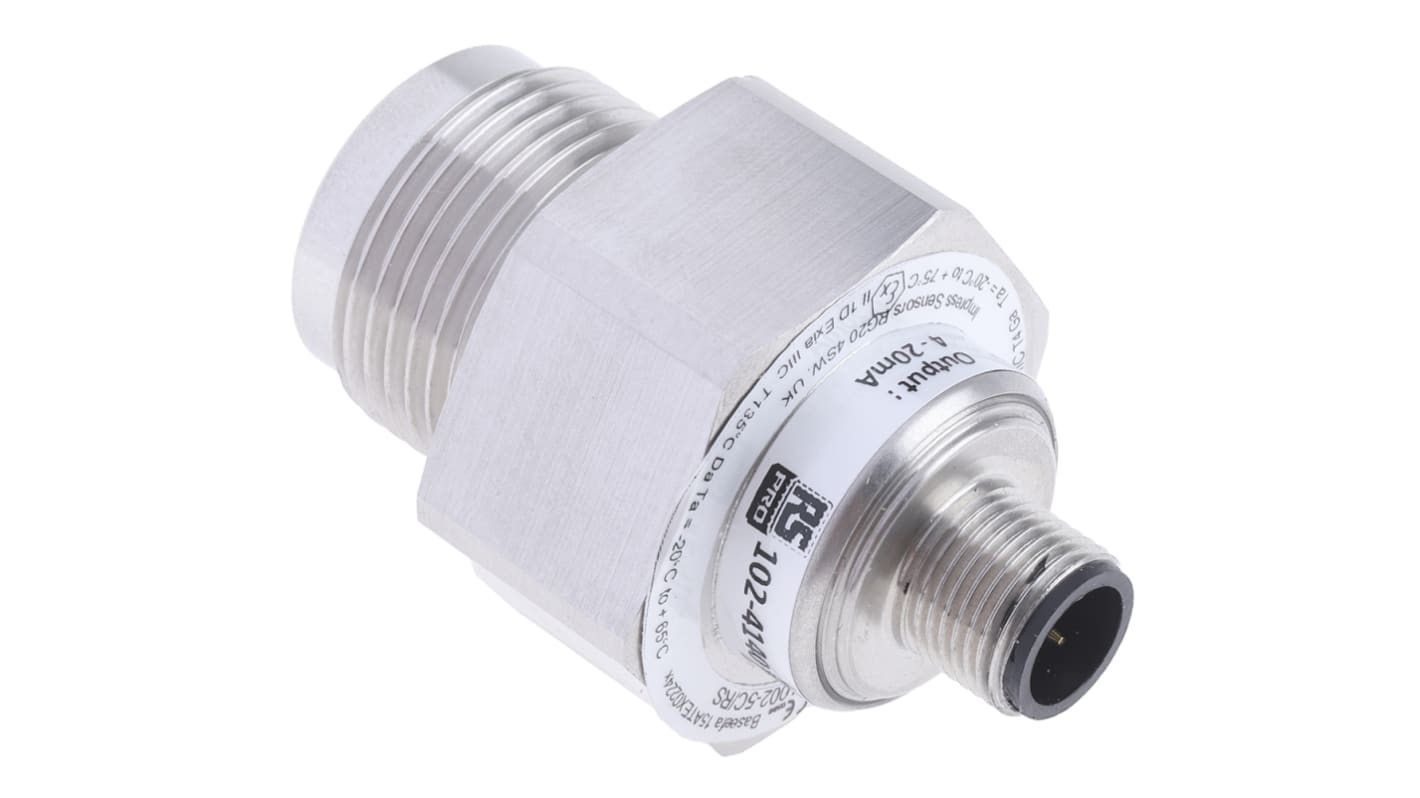

RS PRO ATEX, IECEx Pressure Sensor Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS Pro IPSS Series ATEX Pressure Transmitters

RS Pro IPSS ATEX industrial pressure transducers are suitable for use in a wide range of industrial applications. A piezoresistive ceramic sensor gives excellent media compatibility within a stainless steel housing.

An incorporated microprocessor-based amplifier, requiring no adjusting, gives stable electronics, especially industrial applications.

Piezo-resistive thick film ceramic sensor
Stainless steel body
+/- 0.25% accuracy
Microprocessor based amplifier
Pressure ranges from 1000 mbar to 100 bar

Note

Temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate.

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0bar
Maximum Pressure Reading 10bar
Accuracy ±0.25 %
Output Type Analogue
Media Measured Grey Water, Sewage, Viscous Fluid
Process Connection BSP 3/4
Analogue Output 4 → 20 mA
Electrical Connection M12 4-pin
Maximum Current 28 mA
Supply Voltage 12 → 28 V dc
Housing Material Stainless Steel
IP Rating IP65
Maximum Operating Temperature +80°C
Mounting Type Semi-Flush
Hazardous Area Certification ATEX, IECEx
Minimum Operating Temperature -20°C
Maximum Pressure Setting 100bar
3 In stock for FREE next working day delivery
Price Each
£ 288.00
(exc. VAT)
£ 345.60
(inc. VAT)
Units
Per unit
1 +
£288.00
