Herga for Air Pressure Sensor, 0.072psi Max Pressure Reading , 250 V ac

  • RS Stock No. 317-443
  • Mfr. Part No. 6753-0002
  • Brand Herga
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Air Pressure/ Vacuum, Slow Break Versatile Mounting

Rating: Pressure range 1 to 16 in. WG
GF nylon 12 housing, neoprene diaphragm
Repeatability +/-2.5% (Typ)
Two pairs of mounting hole options

Destruction Pressure Operating Temperature (°C) Mechanical Life (Operations) Height (mm) Width (mm) Depth (mm) Weight (g)
1 bar -5 to +50 1 x 107 26 42 360 99

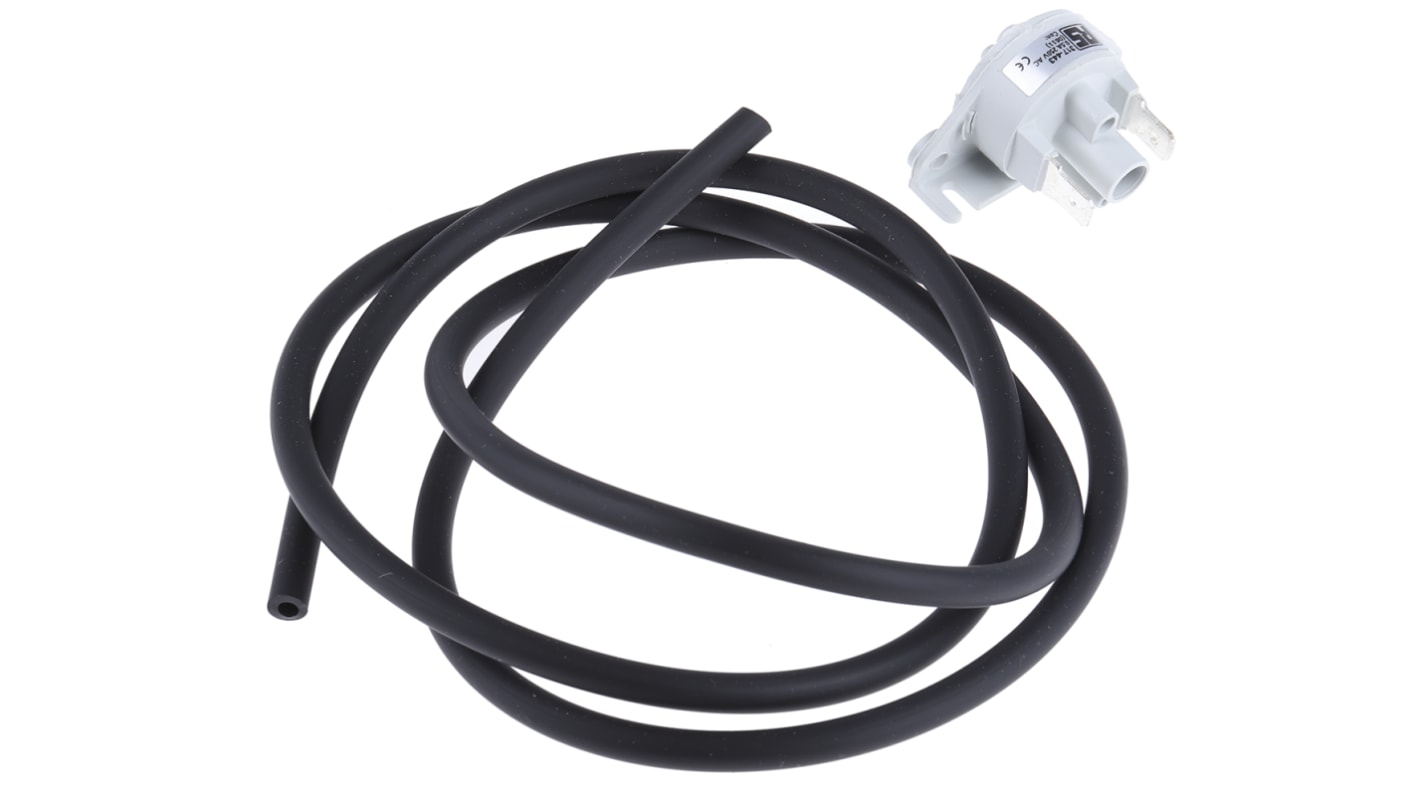

Supplied with

1 m of PVC connecting tube

//media.rs-online.com/t_line/L317443-01.gif

Supplied with

1 m of PVC connecting tube

Specifications
Attribute Value
Maximum Pressure Reading 0.072psi
Accuracy ±2.5 %
Media Measured Air
Electrical Connection Spade Terminal
Supply Voltage 250 V ac
Housing Material Nylon
Maximum Operating Temperature +50°C
Minimum Operating Temperature -5°C
225 In stock for FREE next working day delivery
Price Each
£ 27.58
(exc. VAT)
£ 33.10
(inc. VAT)
Units
Per unit
1 +
£27.58
