Druck DPI 611 Pressure Calibrator RS Calibration

  • RS Stock No. 817-6837
  • Mfr. Part No. DPI611-13G
  • Brand Druck
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

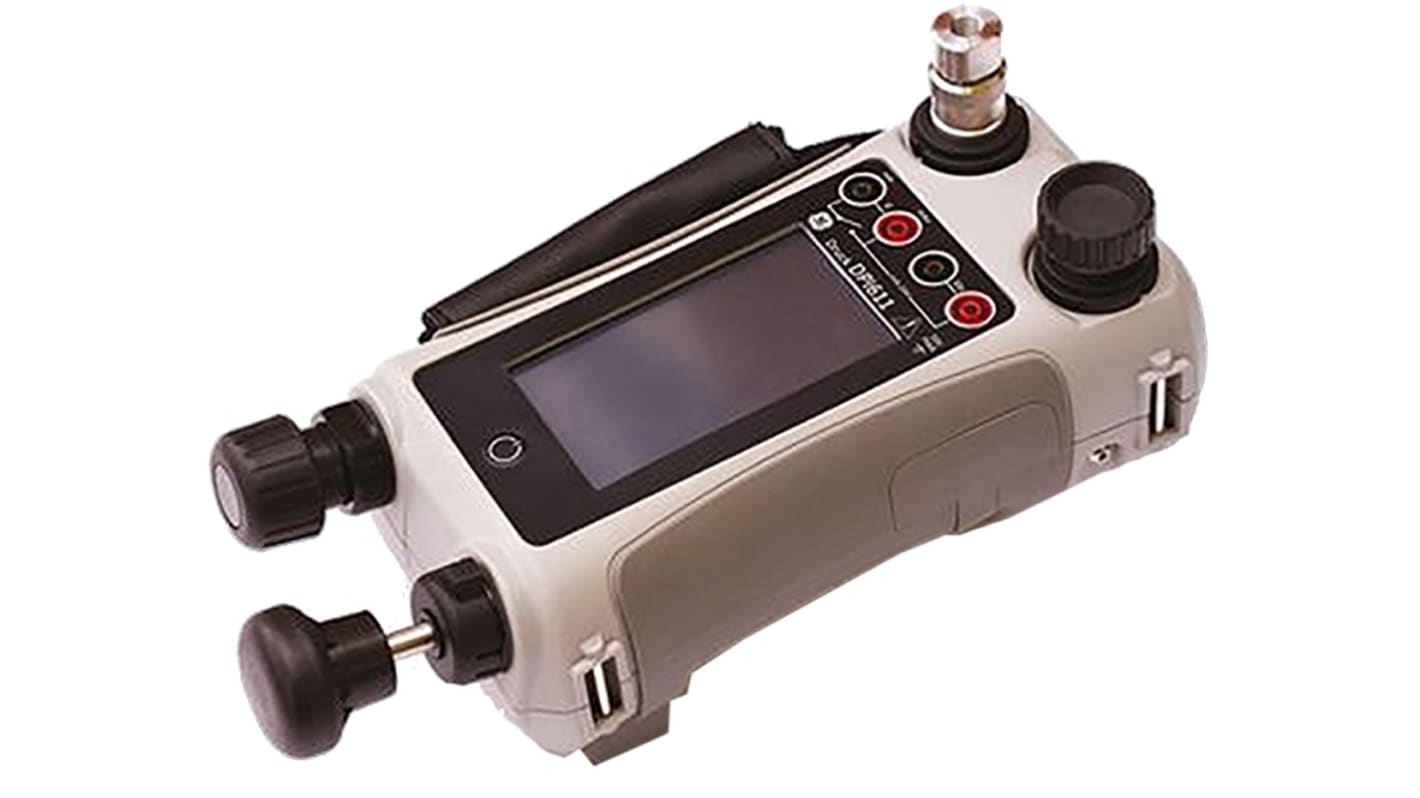

Druck Pressure Calibrator - DPI611

Combing pressure generation, loop power and signal measurement, Druck's DPI611 pressure calibrator facilitate all the convenience and reliability of its predecessor whilst being twice as accurate and half the size. The calibrator offers state-of-the-art analogue and digital microelectronics, both of which contribute to precision accuracy and processing power to provide a class-leading pressure and electrical capability with a unique simple-to-use interface.

Pressure generation made easy - The DPI 611 can generate pressure ranges from 95% vacuum to 20 bar/300 psi pneumatic pressure. A selector allows the user to convert from vacuum to pressure with a few strokes of the pump, generating the required pressure. Fine adjustment is made with the built-in volume adjuster and falling calibration points are achieved with the precision vent valve.

Features & Benefits

• The DPU611 is a portable pressure calibrator, hand-held and lightweight - making it perfect for a multitude of applications and environments
• Self-contained pressure test and calibration system
• 50% smaller and 33% lighter than the DPI 611
• Full-colour touch screen interface accompanied by applications such as DASHBOARD, quick TASK and FAVOURITES storage
• State-of-the-art analogue and digital microelectronics which helps to reduce the size of PCA
• Three touches to set up for any given applications
• Calculates PASS? FAIL errors, documents result and interfaces with calibration software
• Comprised of rugged, robust and waterproof materials
• Quick to fit pressure adaptor system, with no tools or seals required
• The volume can be adjusted for precise pressure setting
• Druck's DPI611 is considered a multifunction calibrator due to their being both pressure and vacuum selection
• The electrical connection for measuring are mA, mV and V
• The handheld pressure calibrator features a pressure vent valve for precision needle valve for fine control

What's included with the Kit?

• A set of alkaline batteries
• Hand strap
• Test leads
• G1/8 female and 1/8 NPT female adaptors
• Calibration certificate and quick user guide
• An electronic copy of multi-lingual user manual in instrument memory
• Pressure calibrator

Specifications
Attribute Value
Maximum Pressure Measurement 20bar
Minimum Pressure Measurement 1bar
Resolution 0.01 bar
Calibrated RSCAL
Pressure Port Type Gauge
Data Logging Yes
Leak Testing Yes
Maximum Operating Temperature +40 °C, +50 °C
Minimum Operating Temperature -10 °C, 0 °C
Weight 2kg
Dimensions 270 x 130 x 120mm
Height 120mm
Length 270mm
Width 130mm
Model Number p DPI 611
10 In stock for delivery within 2 working days
Price Each
£ 2,938.00
(exc. VAT)
£ 3,525.60
(inc. VAT)
Units
Per unit
1 +
£2,938.00
Not available for guaranteed pre 9am/10am delivery
