Druck 25mbar to 200mbar DPI 800 Pressure Calibrator - RS Calibration

  • RS Stock No. 467-7070
  • Mfr. Part No. I800S-1-465-7644
  • Brand Druck
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

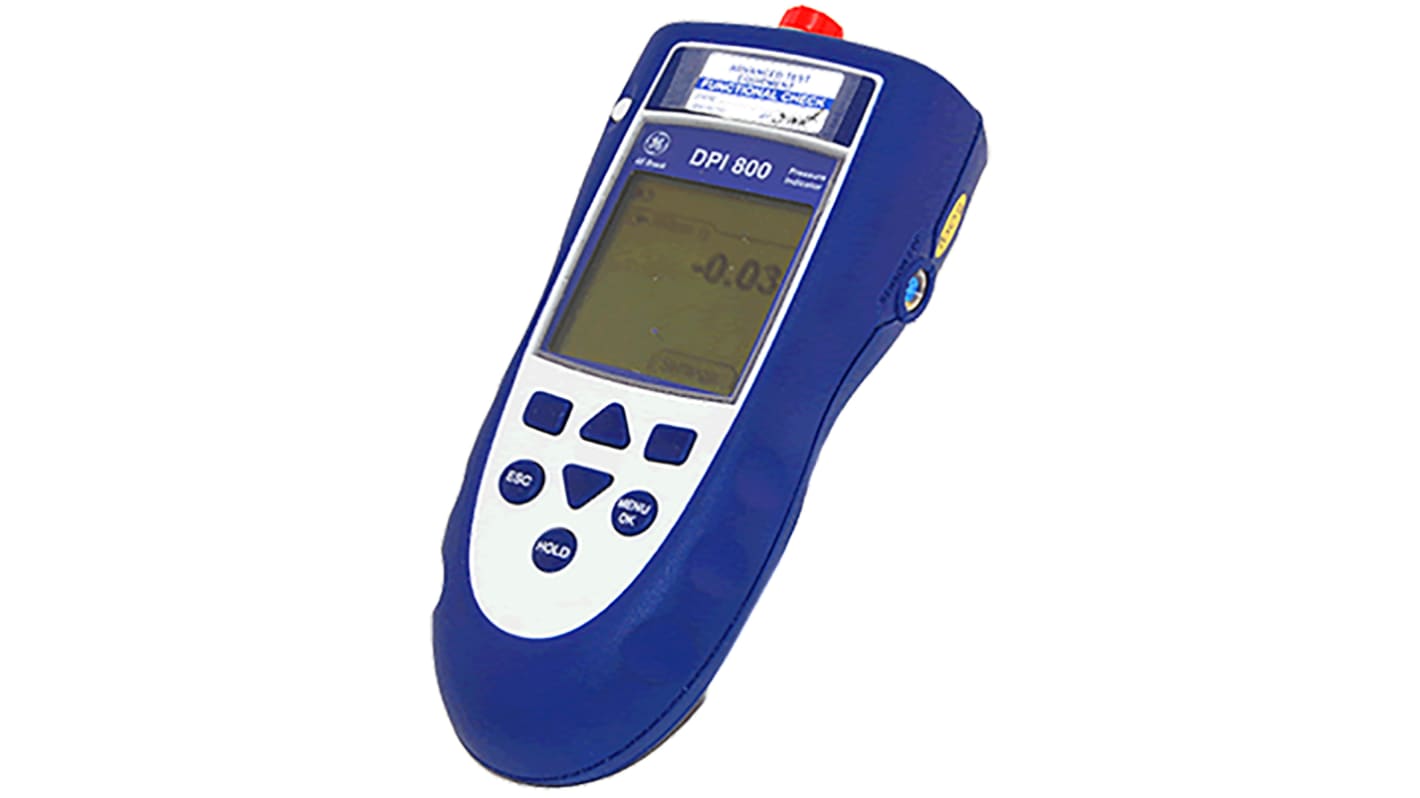

Druck Pressure Indicator - DPI 800

Forming part of Druck's DPI 800 series, this pressure indicator is ideal for use within test and calibration applications. The DPI 800 features a complete range of advanced, robust and simple to use hand-held pressure indicators and loop calibrator instruments. Providing users with an ideal pressure measurement tool for applications involving pressure testing, maintenance testing, transmitter calibration, loop set-up and diagnostics as well as switch verification.

Features & Benefits

• All-inclusive accuracy - can be relied on year in year out, regardless of the tough environmental conditions
• Dual sensor configuration - features an extended measurement range and simultaneous two-channel reading
• Stainless steel sensor construction - available for compatibility with a wide range of fluids and gases
• Programmable leak test - this function reports the pressure drop and leak rate
• Advanced features - hold, maximum/minimum/average, alarm and tare facilitate troubleshooting
• Cost-effective because of the advanced features and technical innovations addressing more applications in a significantly less amount of time whilst delivering reliable and trustworthy results
• Plug/Play connector for IDOS Universal Measurement Modules
• Pressure ranges - 10 in H2O to 10,000 psi (25 mbar to 700 bar) including vacuum options
• Graphic LCD display with backlight - resolution 99999
• Easy to use menu-driven interface
• Operating temperature is 14°F to 122°F (-10°C to 50°C) and the storage temperature is -4°F to 158°F (-20°C to 70°C)
• Convenient, one-handed operation - offering ease of portability
• Though the secure grip will reduce accidents, the pressure calibrator is elastomer protected and impact resistant
• Robust and weatherproof
• Up to 0.01%FS Accuracy
• mA measure, switch test and 24V loop power
• HART loop resistor
• Ideal for test/calibration of many popular process parameters

Did you know?

The DPI 800 has no electrical Loop calibration functionality

What's included with the kit?

• 3 AA alkaline batteries
• Calibration certificate
• User guide
• Set of electrical test leads
• Pressure indicator

Specifications
Attribute Value
Maximum Pressure Measurement 200mbar
Minimum Pressure Measurement 25mbar
Calibrated RSCAL
Pressure Port Type Differential, Gauge
Data Logging Yes
Current Loop Measurement Yes
Leak Testing Yes
Maximum Operating Temperature +50°C
Minimum Operating Temperature -10°C
Weight 500g
Dimensions 180 x 85 x 50mm
Height 50mm
Length 180mm
Model Number p DPI 800
Width 85mm
1 In stock for delivery within 2 working days
Price Each
Was £928.00
£ 844.40
(exc. VAT)
£ 1,013.28
(inc. VAT)
Units
Per unit
1 +
£844.40
Not available for guaranteed pre 9am/10am delivery
