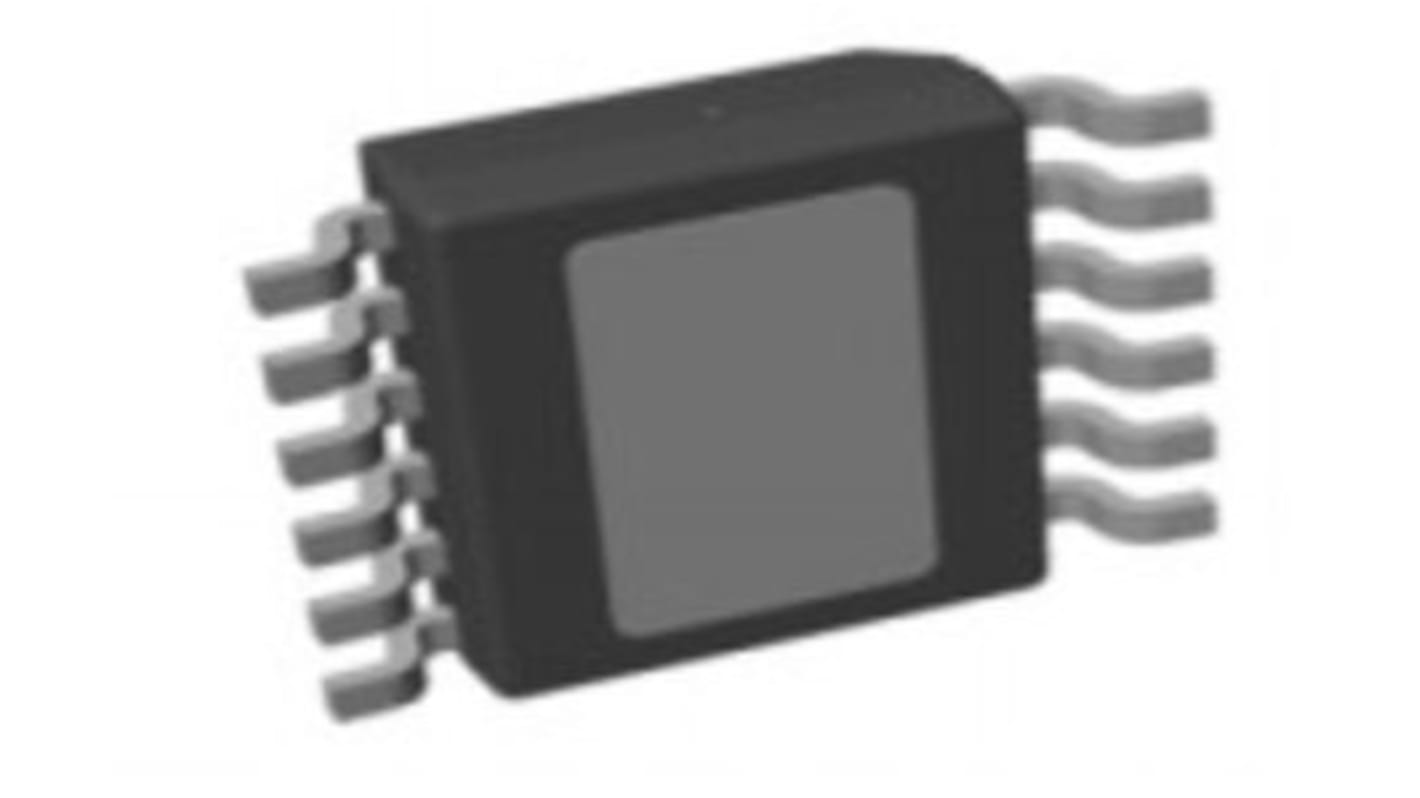

STMicroelectronics IPS160HFTR, 1High Side, High Side Power Switch IC 12-Pin, PowerSSO12
- RS Stock No.:
- 204-9948
- Mfr. Part No.:
- IPS160HFTR
- Brand:
- STMicroelectronics
Available to back order for despatch 17/01/2025
Added
Price Each (In a Pack of 5)
£3.37
(exc. VAT)
£4.04
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £3.37 | £16.85 |
| 10 - 20 | £2.854 | £14.27 |
| 25 - 45 | £2.798 | £13.99 |
| 50 - 70 | £2.74 | £13.70 |
| 75 + | £2.69 | £13.45 |
| *price indicative | ||
- RS Stock No.:
- 204-9948
- Mfr. Part No.:
- IPS160HFTR
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MA
Product Details
The STMicroelectronics IPS160HF (Iout = 2.4A) and IPS161HF (Iout = 0.6A) are monolithic devices which can drive capacitive, resistive or inductive loads with one side connected to ground.
8 V to 60 V operating voltage range
Minimum output current limitation: 0.7A (IPS161HF) or 2.5A (IPS160HF)
Short propagation delay at start-up
Fast demagnetization of inductive load
Non-dissipative short-circuit protection (cut-off)
Minimum output current limitation: 0.7A (IPS161HF) or 2.5A (IPS160HF)
Short propagation delay at start-up
Fast demagnetization of inductive load
Non-dissipative short-circuit protection (cut-off)
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | High Side |
| Power Switch Topology | High Side |
| Number of Channels | 1 |
| Maximum Operating Supply Voltage | 60 V |
| Maximum Operating Current | 10A |
| Package Type | PowerSSO12 |
| Pin Count | 12 |
