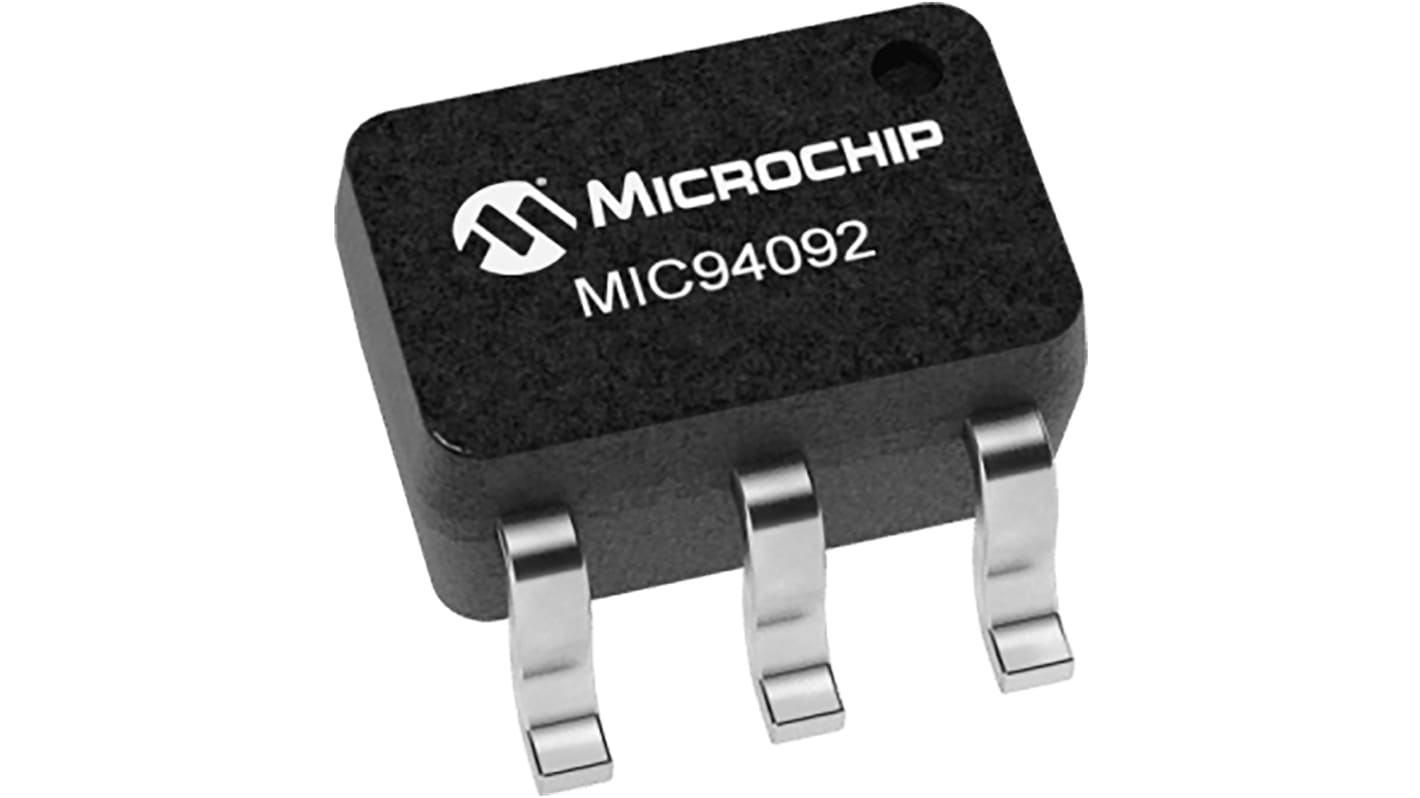

Microchip MIC94092YC6-TR, 1High Side, Load Power Switch IC 6-Pin, SC-70
- RS Stock No.:
- 177-2942
- Mfr. Part No.:
- MIC94092YC6-TR
- Brand:
- Microchip
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 3000)
£0.198
(exc. VAT)
£0.238
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £0.198 | £594.00 |
| *price indicative | ||
- RS Stock No.:
- 177-2942
- Mfr. Part No.:
- MIC94092YC6-TR
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
The MIC94090/1/2/3/4/5 is a family of high-side load switches designed for operation from 1.7V to 5.5V input voltage. The load switch pass element is an internal 130mΩ RDS(ON) P-channel MOSFET which enables the device to support up to 1.2A continuous current. Additionally, the load switch supports 1.5V logic level control and shutdown features.The MIC94090 and MIC94091 feature rapid turn on.
1.7V to 5.5V input voltage range
1.2A continuous operating current
130mΩ R DS(ON)
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Rapid turn-on: MIC94090/1
Soft-Start: MIC94092/3 (790μs), MIC94094/5 (120μs)
Load discharge circuit: MIC94091/3/5
Industry standard SC-70-6 package
1.2A continuous operating current
130mΩ R DS(ON)
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Rapid turn-on: MIC94090/1
Soft-Start: MIC94092/3 (790μs), MIC94094/5 (120μs)
Load discharge circuit: MIC94091/3/5
Industry standard SC-70-6 package
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | Load |
| Power Switch Topology | High Side |
| Switch On Resistance | 375mΩ |
| Number of Channels | 1 |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Current | 1.2 (Continuous)A |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Pin Count | 6 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.25 x 1.35 x 1mm |
| Series | MIC94092 |
